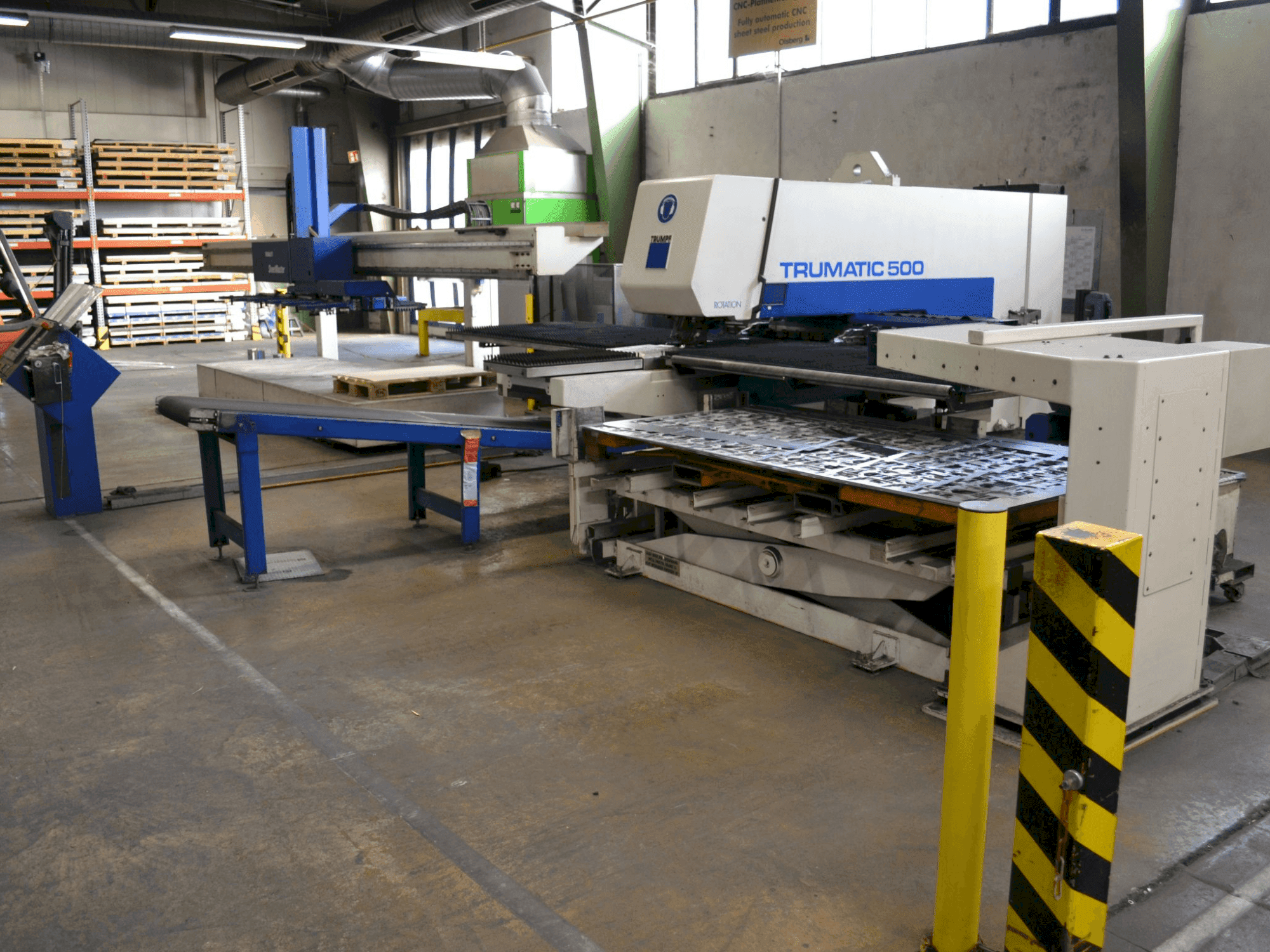

TRUMPF - Trumatic 500DE-PUN-TRU-2000-00002
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used TRUMPF Trumatic 500 For Sale | gindumac.com
This TRUMPF Trumatic 500 was manufactured in 2000. A robust CNC punch press, it offers reliable performance for your punching needs. Consider the opportunity to buy this TRUMPF Trumatic 500 CNC punch press. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2000
- MODEL: Trumatic 500
- production hours: 99800
- application type: Punching
- Location: Germany
- machine type: CNC Punch Press
- availability: Immediately
Technical Information - TRUMPF Trumatic 500
General Data
- Measurements height: 2200 mm
Control Unit
- Model: TRUMPF CNC TRUMAGRAPH CC220S
Main drive
- Punching force: 220 kN
- Number of axis: 2
Media
- Main electronic connection: 17 kVA / 50 Hz
Additional Information
- Material thickness: 8 mm
- Technical Machine Benefits:
- - Tool change time: approx. 1. 5 - 5 seconds
- - Number of tool positions: 20 (y1300) 21 (y1600)
- - Number of claws: 2 pieces, 3 or 4 optional
- - Pneumatic connection: 8 nm3/h at 6 bar
- - Max. Punching diameter: 76. 2 mm
- - Max. Working Area: 2500 x 1300 mm (Y1300) Max. Workpiece Weight: 150 kg (Y1300) Space Requirement: 6900 x 5800 mm (Y1300) Weight of the Machine: Approx. 11050 kg (Y1300) Height of the Machine: 2200 mm Max. Stroke Rate: 900 per minute (Y1300) Cutting Speeds: X-axis: 90 m/min Y-axis: 60 m/min Simultaneous: 108 m/min C-axis: 360/s Accuracies: Position Deviation: +/- 0.1 mm Average Position Spread: +/- 0.03 mm
Machine history
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
