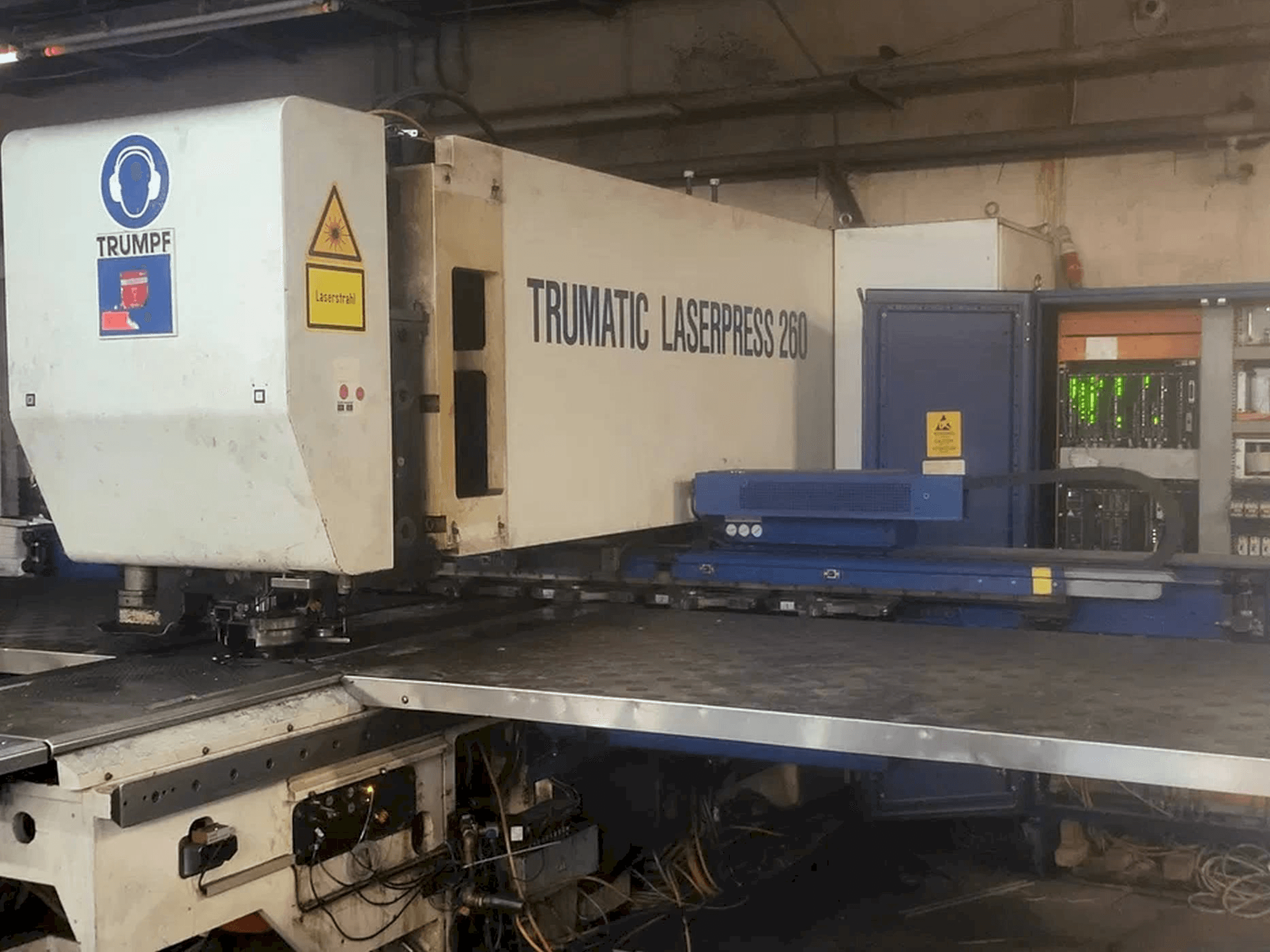

Front view of Trumpf Trumatic 260 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 260

TRUMPF - Trumatic 260PL-PUN-TRU-1991-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 260 Punching machine

Show in original language

This Trumpf Trumatic 260 Punching machine was manufactured in the year 1991. It is equipped with a BOSCH TRUMAGRAPH CC300 control unit. The machine has a punching force of 250 kN.

Overview

brand: TRUMPF
year: 1991
MODEL: Trumatic 260
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 260

Control Unit

Model: TRUMAGRAPH CC300
Brand: BOSCH

Main drive

Punching force: 250 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working area range : 1300 x 2500 mm + repositioning
- - Maximum thickness of sheet : 6,4 mm
- - Maximum weight of processed sheet : 150 kg
- - Maximum tool diameter : 76. 2 mm
- - Maximum traverse speed, x and y axes simultaneously : 108 m/min
- - Maximum traverse speed, x axis : 90 m/min.
- - Maximum traverse speed, y axis : 60 m/min.
- - Number of tools in the magazine : 10 pcs.
- - Tool change time : 6. 5 sec.
- - Maximum tool rotation speed, c axis : 3600/sec.
Qualitative Machine Benefits:
- - Maximum number of strokes : 500/min.
- - Software accuracy : 0. 01 mm
- - Ramp for small workpieces
- - Retractable sheet holders (no repositioning required with standard sheets)
- - 7 sheet holders
- - Multitool operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
