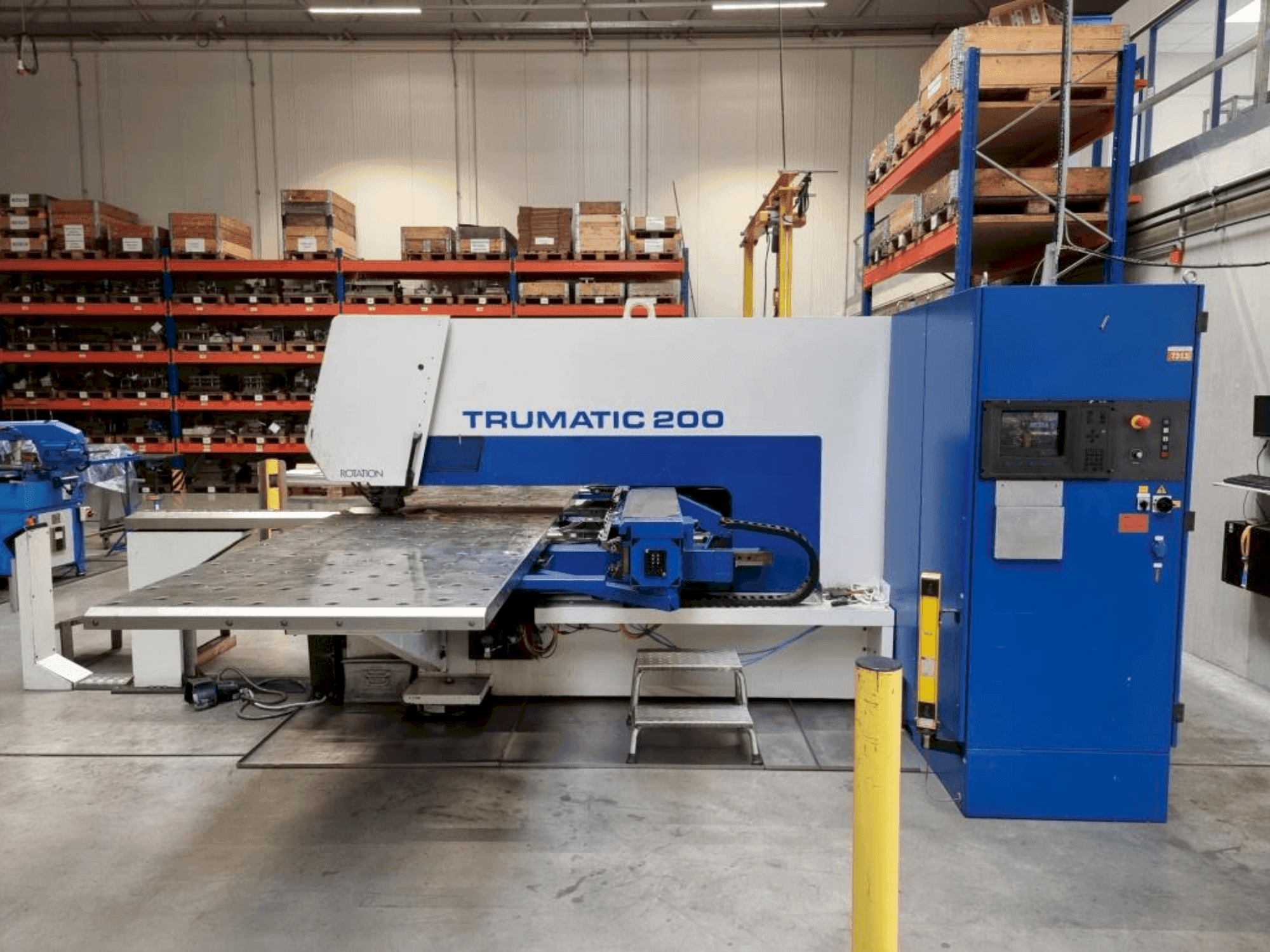

Front view of TRUMPF Trumatic 200 machine
Front view of TRUMPF Trumatic 200 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic 200DE-PUN-TRU-2000-00003

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TRUMPF Trumatic 200 was manufactured in 2000. A robust CNC punch press, it offers reliable performance for your punching needs. Consider the opportunity to buy this TRUMPF Trumatic 200 CNC punch press. Contact us for more information about this machine.

Overview

  • brand: TRUMPF
  • year: 2000
  • MODEL: Trumatic 200
  • application type: Punching
  • Location: Germany
  • machine type: CNC Punch Press
  • control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 200

General Data

  • Measurements width: 5000 mm
  • Measurements depth: 4000 mm
  • Measurements height: 2000 mm
  • Machine weight: 8000 kg

Control Unit

  • Brand: BOSCH
  • Model: TrumaGraph CC220

Main drive

  • Punching force: 156 kN
  • Number of axis: 2

Movement

  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Rapid traverse: 40 m/min
  • C-AXIS Rapid traverse: 360°/s

Workpiece

  • Workpiece weight: 150 kg

    Additional Information

    Additional equipment

    • Tool cassettes
    • Multitool tools
    • 3 clamping claws
    • Documentation

    Machine Benefits

    Technical Machine Benefits

    • Max sheet thickness: 6. 4 mm
    • Max punching diameter: 76. 2 mm
    • Tool change time: 1. 5 - 6. 5 seconds
    • Number of tool positions: 15 + 2 clamps
    • Max stroke rate: 420 strokes/min / 1300 strokes/min (marking tool)

    Extra Information

    Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
