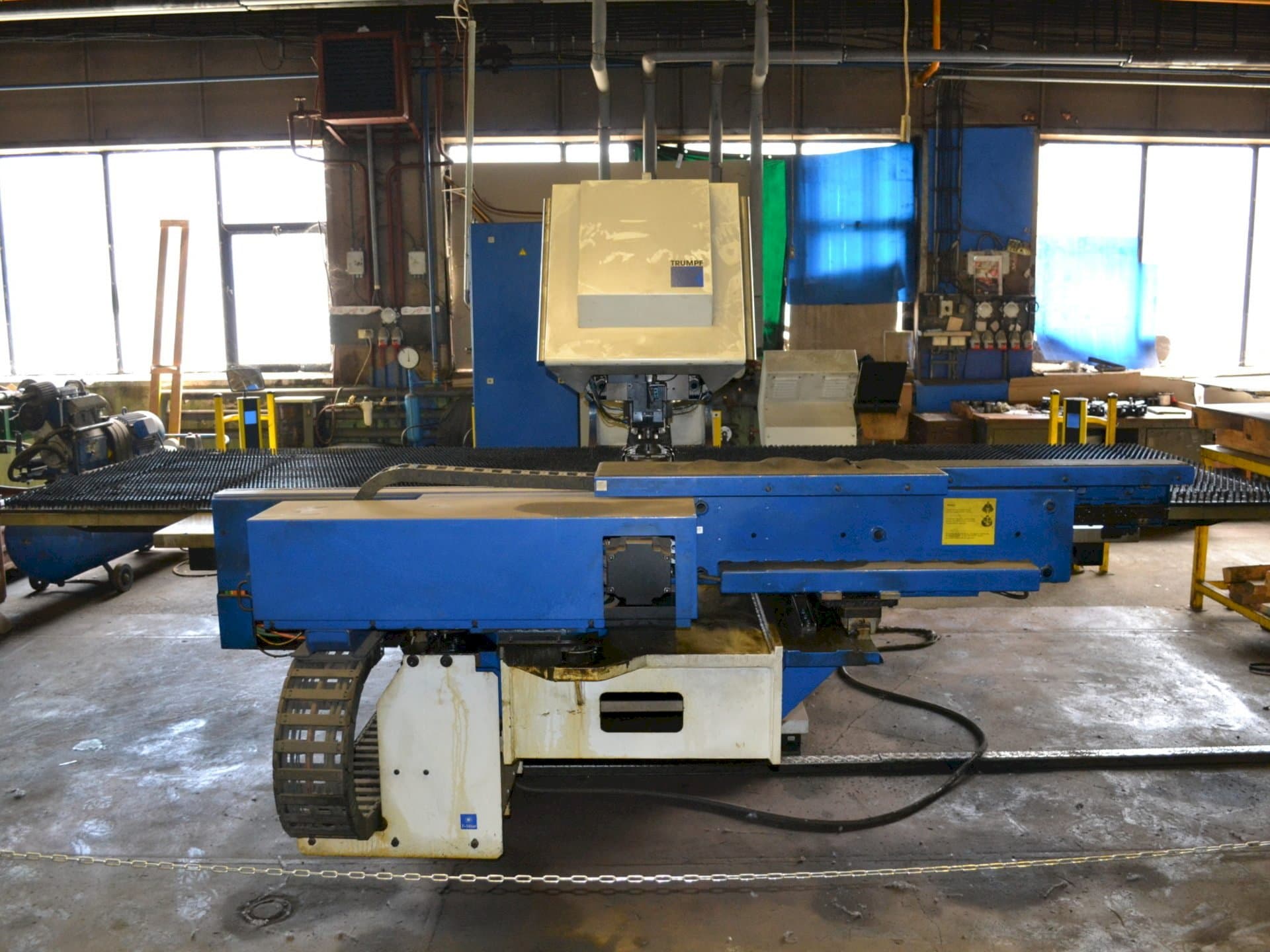

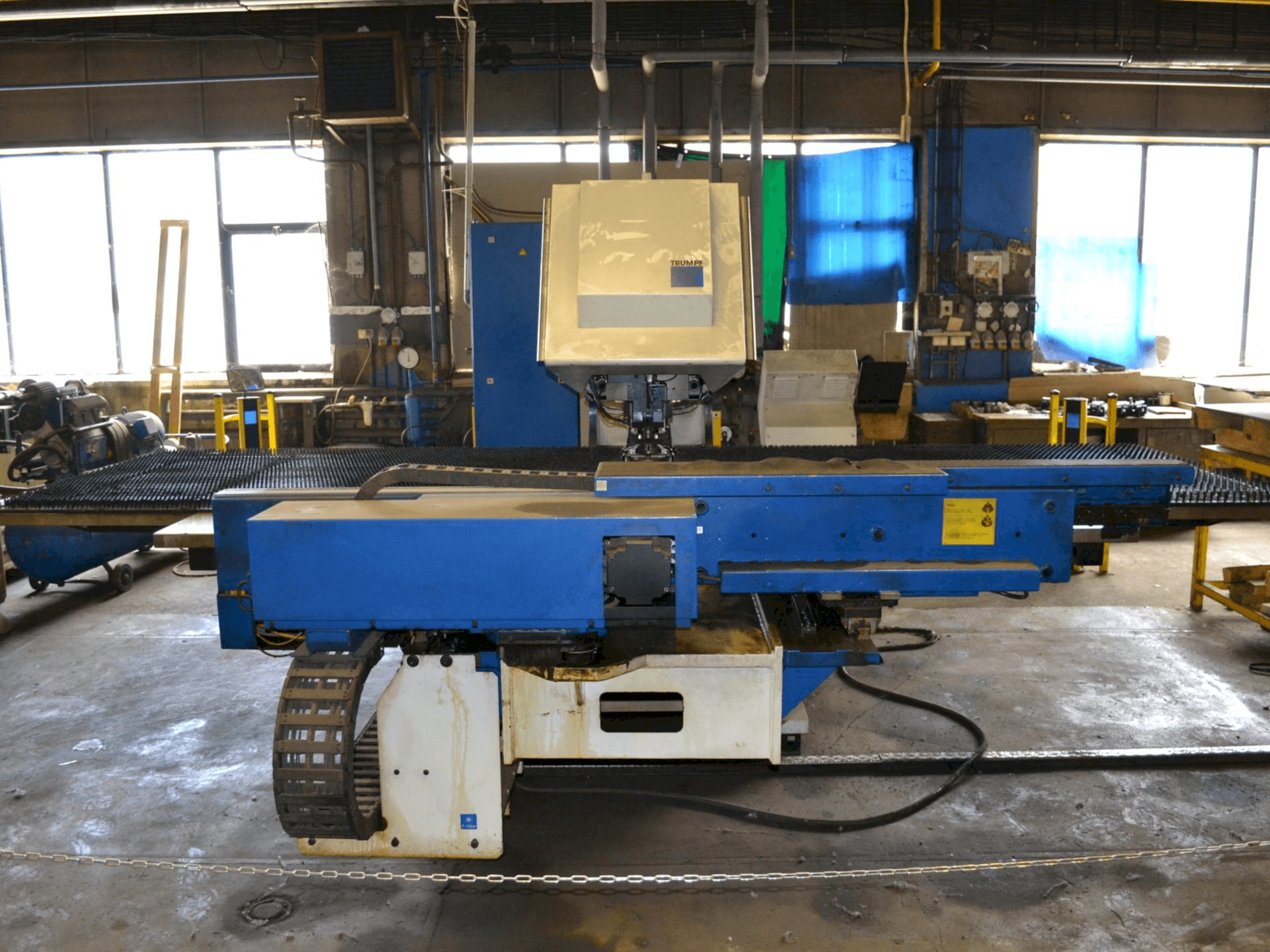

Front view of Trumpf Trumatic 2000R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 2000R

Photo Gallery

TRUMPF - Trumatic 2000RSK-PUN-TRU-2005-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Punching Machine - Trumpf Trumatic 2000R

Show in original language

This Trumpf Trumatic 2000R Punching Machine was built in the year 2005 in Germany. It has been working for 18521 hours. It is equipped with a Bosch Typ3 control unit. This machine can operate with a punching force of 180 kN. It is in very good conditions.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic 2000R
production hours: 18521
application type: Punching
Location: Slovakia
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 2000R

General Data

Machine weight: 8000 kg

Control Unit

Model: Typ3
Brand: BOSCH

Main drive

Punching force: 180 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 1275 mm
Y-AXIS Movement: 2450 mm

Workpiece

Workpiece weight: 75 kg

Media

Power consumption: 17 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis: 3 rotations per second
- - Max. Stroke rate 900 / second
- - Feedrates x/y axis 90/60 m/min
- - Simultaneous feedrate x+y 108 m/min
- - Linear tool changer 9 positions
- - Security light barrier
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
