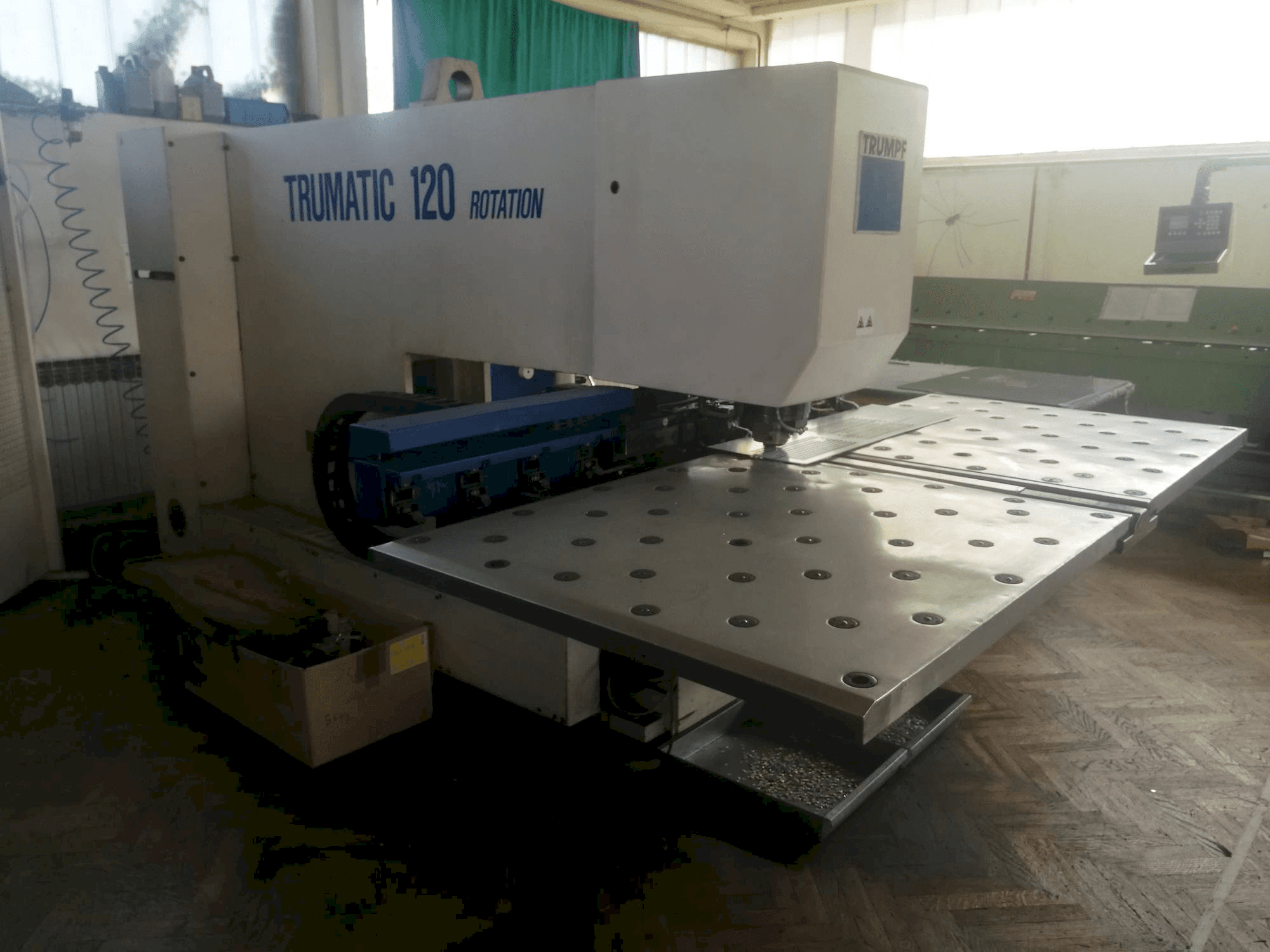

Front view of Trumpf Trumatic 120R machine
Front view of Trumpf Trumatic 120R machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic 120RHR-PUN-TRU-1990-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic 120R Punching Machine from 1990 was manufactured in Germany. It counts with a production record of 35000 working hours. Operated through a Bosch Trumagraph control unit. Works with a punching force of 150 kN.

Overview

  • brand: TRUMPF
  • year: 1990
  • MODEL: Trumatic 120R
  • production hours: 35000
  • application type: Punching
  • Location: Croatia
  • machine type: Turret Punch Press
  • availability: Sold
  • control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 120R

General Data

  • Measurements width: 3500 mm
  • Measurements depth: 2360 mm
  • Measurements height: 2000 mm
  • Machine weight: 4300 kg

Control Unit

  • Model: Trumagraph
  • CNC main language: English
  • Brand: BOSCH

Main drive

  • Punching force: 150 kN

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 1000 mm

Tools

  • Number of index: 1
  • Number of stations: 1
  • Slots in storage: 9+2

Max Material thickness

  • Steel: 4 mm

Media

  • Main electronic connection: 420V 50Hz
  • Power consumption: 9 kVA

Additional Information

    Machine history

    • Material type: Steel
    • Material thickness: 1 mm
    • End product: Kitchenware
    • Industries: Kitchen elements, interiors

    Machine Benefits

    • Technical Machine Benefits:
      • - Fast sheet perforation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
