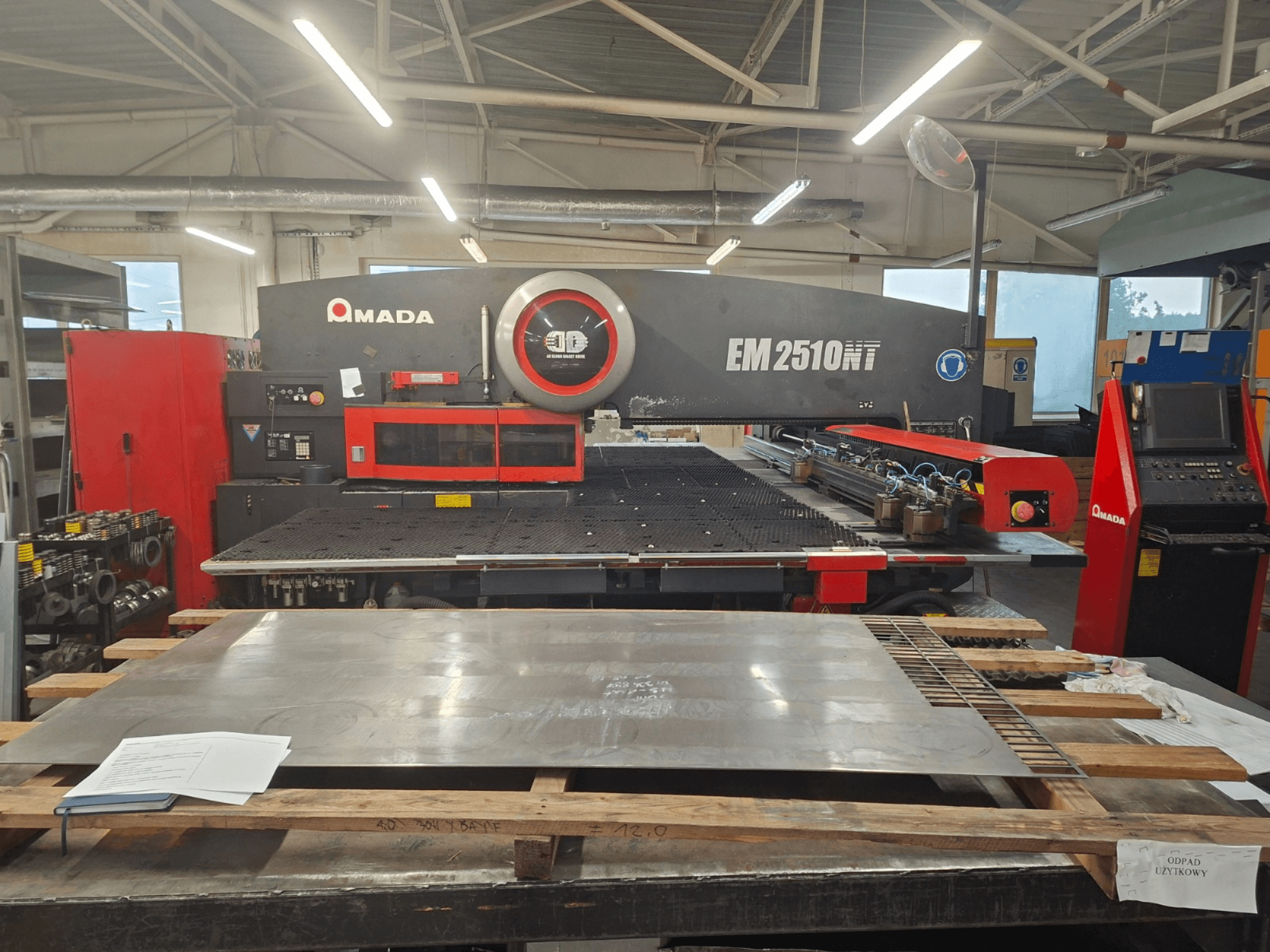

This 5-axis AMADA EM 2510NT turret punch press was manufactured in 2005. It features a punching force of 200 kN, a turret capacity of 45 stations, and a maximum sheet size of 1270 × 5000 mm. The machine has a rapid traverse speed of 100 m/min on the X-axis and 80 m/min on the Y-axis. If you are looking to get high-quality punching capabilities, consider the AMADA EM 2510NT machine we have for sale. Contact us for further details.
Overview
- brand: AMADA
- year: 2005
- MODEL: EM 2510NT
- production hours: 14300
- application type: Punching
- Location: Poland
- machine type: Turret Punch Press
- control unit brand: AMADA
Technical Information - AMADA EM 2510NT
Control Unit
- Control Brand: AMADA
- Control Model: AMNC-F (FANUC 180i-PB)
Dimensions
- Machine Height: 2318 mm
- Machine Length: 5526 mm
- Machine Weight: 18000 kg
- Table Width: 5120 mm
Movement
- Number of Axes: 5
- X-axis Travel: 2500 mm
- Y-axis Travel: 1270 mm
Technical Specification
- Max. Sheet Thickness: 3.2 mm
- Punching Force: 200 Kn
Additional Information
X-axis rapid traverse: 100 m/min
Y-axis rapid traverse: 80 m/min
Maximum sheet size: 1270 × 5000 mm
Maximum material thickness: 3.2 mm mild steel
Maximum sheet weight: 50 kg (feed speed F1) / 150 kg (feed speed F4)
Positioning accuracy: ±0.07 mm
Turret capacity: 45 stations
Turret rotation speed: 30 rpm
Punching force: 200 kN
Hits per minute – 1 mm pitch (5 mm stroke): 780 hits/min
Hits per minute – 25.4 mm pitch, X-axis: 500 hits/min
Hits per minute – 25.4 mm pitch, Y-axis: 330 hits/min
Maximum stroke length: 37 mm
Connected load: 27 kVA
Air consumption – machine: 250 l/min
Air consumption – Air Jet vacuum: 250 l/min
Operating air pressure: 5 bar
Tooling visible in the photos
4 tool cabinets
Technical documentation (manual scan)
Machine + included tooling package shown in the photos
Machine fully operational: Yes (replacement of one pneumatic hose required to eliminate a minor air leak)
Machine connected to power: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
