TRUMPF Trumark Station 5000

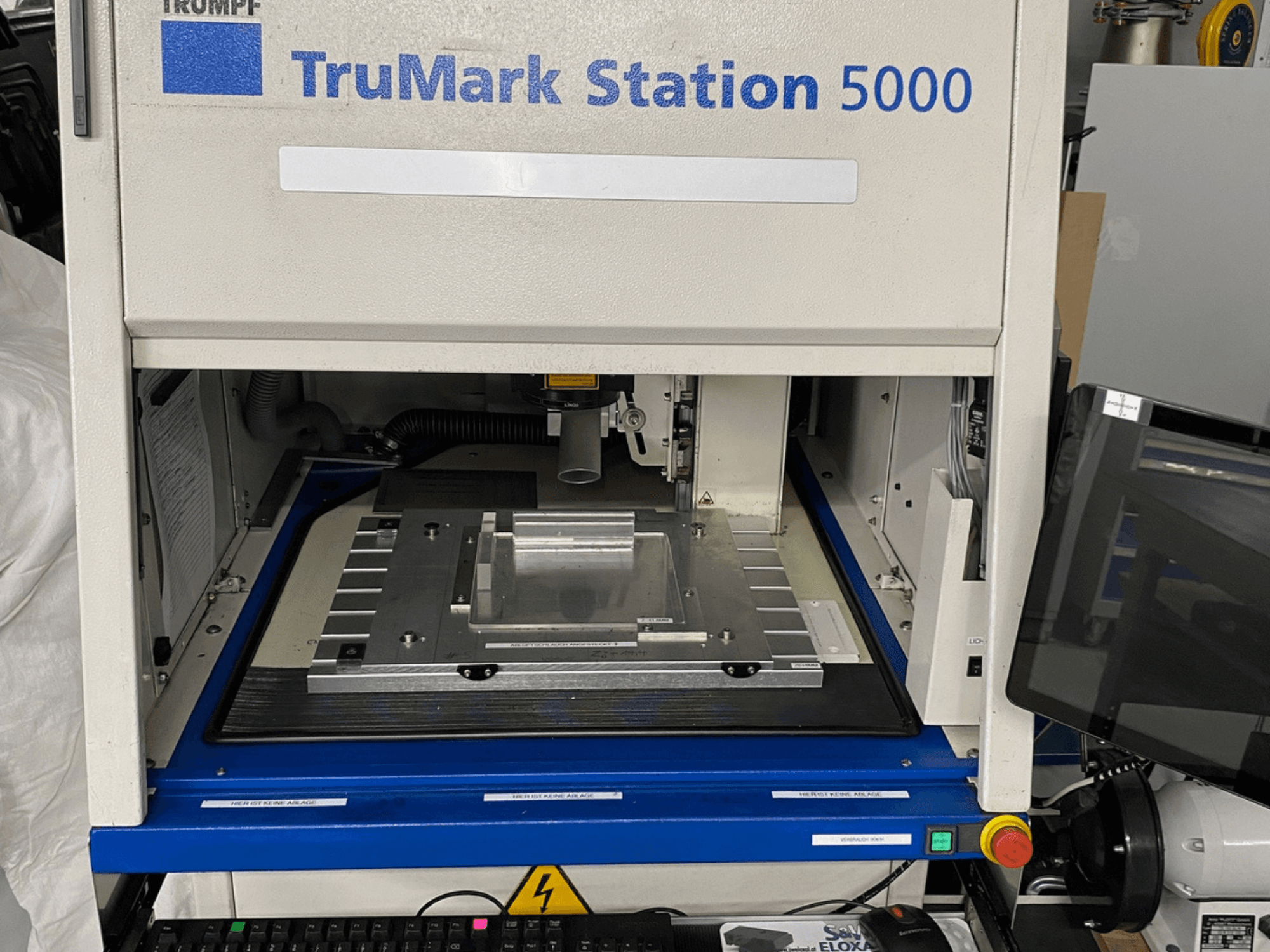

Photo Gallery

TRUMPF - Trumark Station 5000AT-OTH-TRU-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF Trumark Station 5000 For Sale | gindumac.com

Show in original language

This 3-axis TRUMPF Trumark Station 5000 was manufactured in 2008. It features maximum workpiece dimensions of 680 mm x 500 mm x 700 mm and a traverse path of 500 mm on the Z-axis. The machine has a maximum workpiece weight of 50 kg without the X/Y axis. If you are looking to get high-quality laser marking capabilities, consider the TRUMPF Trumark Station 5000 machine we have for sale. Contact us for further details.

Overview

brand: TRUMPF
year: 2008
MODEL: Trumark Station 5000
application type: Other Sheet Metal Machinery
Location: Austria
machine type: Laser Marking Machine

Technical Information - TRUMPF Trumark Station 5000

Technical Specification

Laser Power: 0.05 kW

Additional Information

- Maximum Workpiece Dimensions (W x H x D): 680 mm x 500 mm x 700 mm

- Maximum Workpiece Weight: 50 kg (without X/Y axis), 25 kg (with X/Y axis)

- Traverse Path Z-Axis: 500 mm

- Traverse Path X-Axis: 300 mm

- Traverse Path Y-Axis: 300 mm

- Traverse Speed Z-Axis: 1.5 m/min

- Traverse Speed X-Axis: 6 m/min

- Traverse Speed Y-Axis: 6 m/min

- Electrical Connection (Voltage): 115 V / 230 V

- Electrical Connection (Frequency): 50 Hz / 60 Hz

- Maximum Power Consumption: < 2.55 kW

- Workstation Dimensions (W x H x D): 860 mm x 2000 mm x 1310 mm

- Workstation Weight (without laser): 410 kg

- Laser Class: Class 1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
