Baublys - Control Laser UL 65QR/NC 100 50 50 SOMADE-OTH-BAU-2008-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Baublys Control Laser UL 65QR/NC 100 50 50 SOMA For Sale

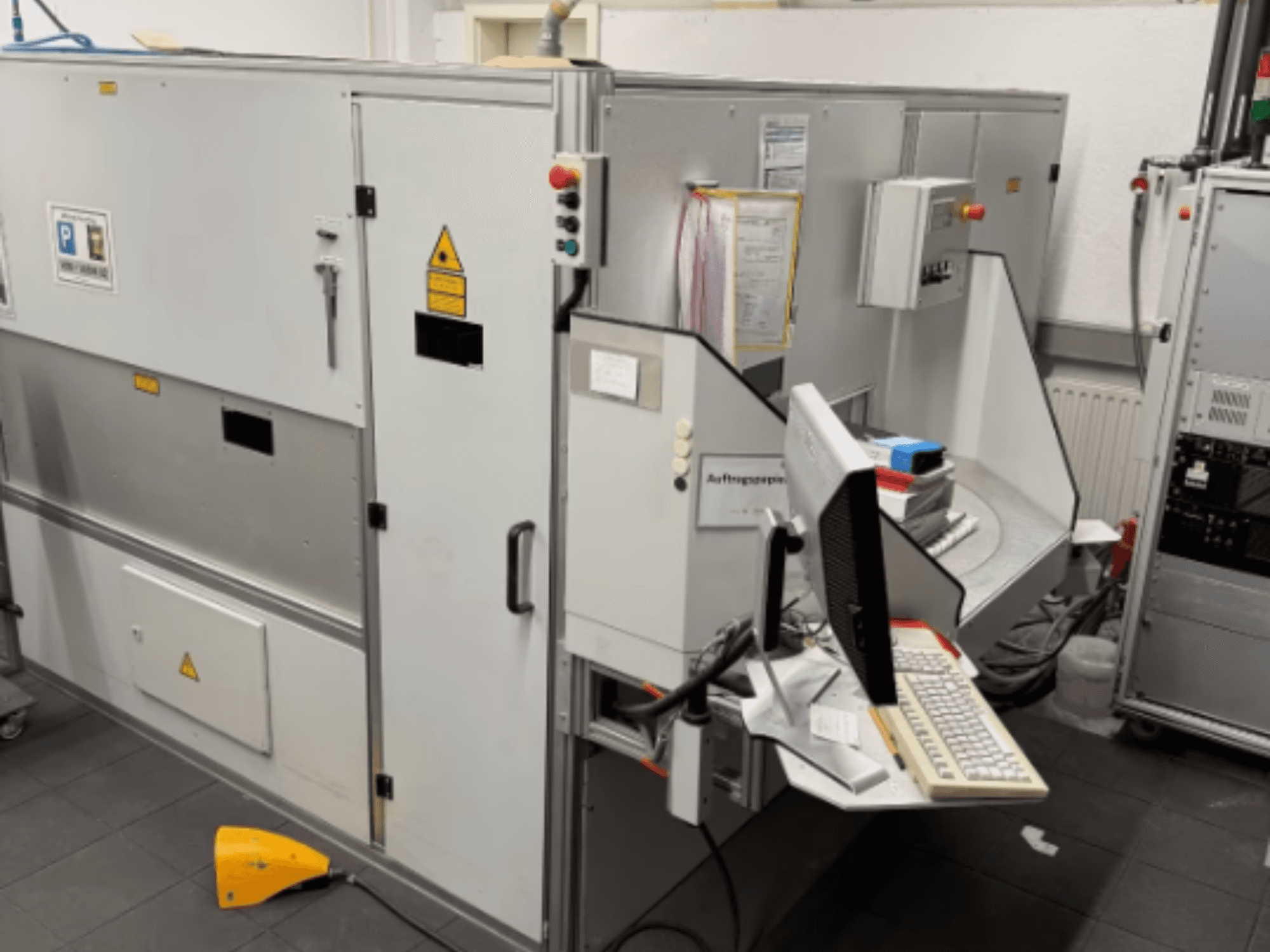

This 3-axis Baublys Control Laser UL 65QR/NC 100 50 50 SOMA was manufactured in 2008. It features a Q-switched solid-state Nd:YAG laser, capable of reaching frequencies up to 50 kHz. The machine includes a round transfer table of approximately 75 cm and is housed in a 2.4 x 2.6 meters enclosure. If you are looking to get high-quality laser marking capabilities consider the Baublys Control Laser UL 65QR/NC 100 50 50 SOMA machine we have for sale.Contact us for more information.
Overview
- brand: Baublys
- year: 2008
- MODEL: Control Laser UL 65QR/NC 100 50 50 SOMA
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Laser Marking Machine
Additional Information
Laser type: Q-switched solid-state laser
Laser medium: Nd:YAG
Wavelength: 1064 nm
Beam quality (M²): 13 (6 kHz, MM); <1.3 (6 kHz, TEM00)
Beam diameter: 2.2 mm (6 kHz, MM); 0.7 mm (6 kHz, TEM00)
Beam divergence: 9.6 mrad (multimode); 4.5 mrad (TEM00)
Average power (CM): 80 W (MM)
Average power (QS): 56 W (6 kHz, MM)
Frequency: up to 50 kHz
Enclosure dimensions: 2.4 x 2.6 m
2 doors installed
Additional equipment
Round transfer table (approx. 75 cm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
