TRUMPF TC260R

Photo Gallery

TRUMPF - TC260RHR-PUN-TRU-1994-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

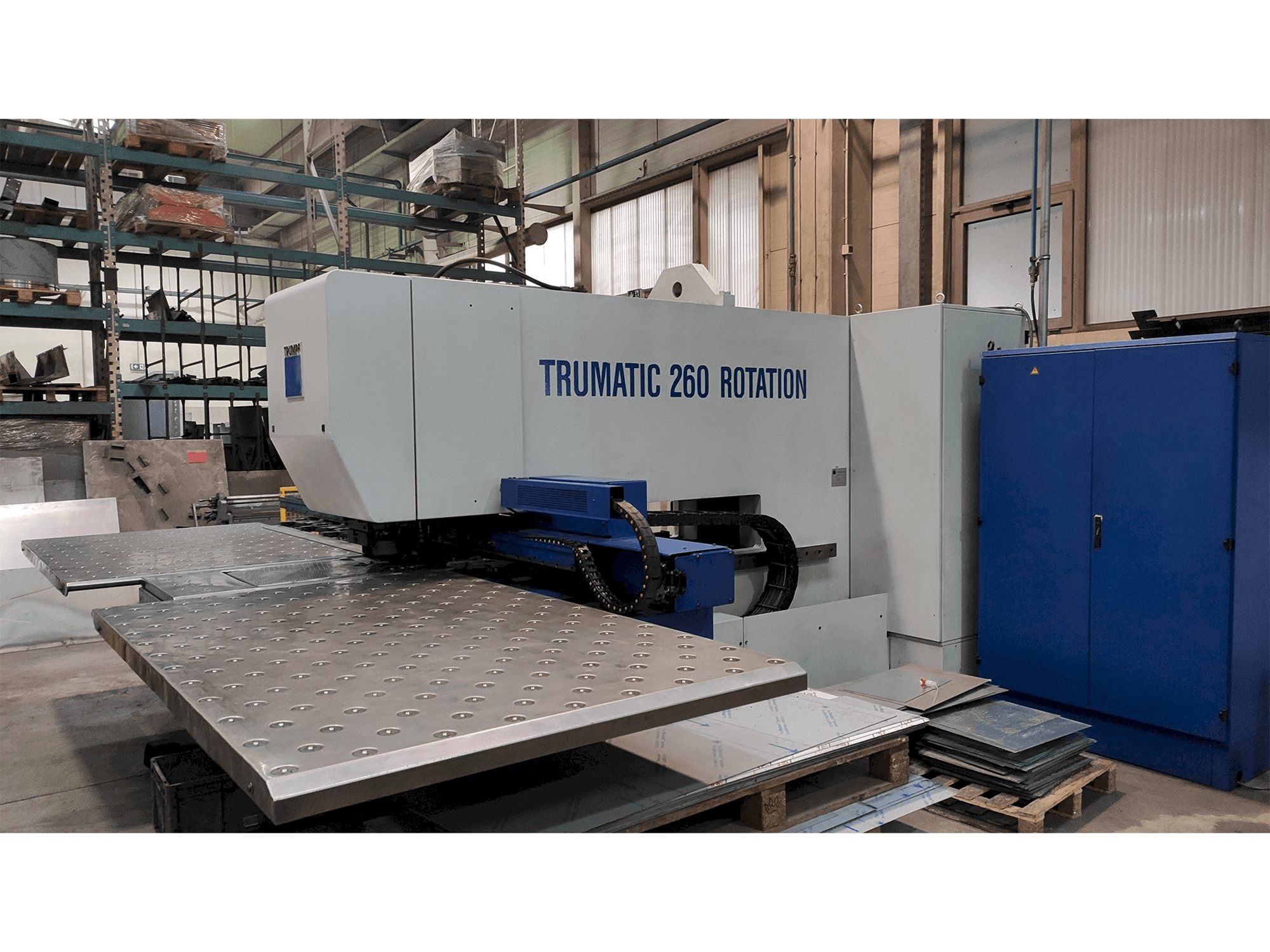

Trumpf TC260R Punching Machine

Show in original language

This Trumpf TC260R Punching Machine was manufactured in the year 1994 in Germany. It is operated through a Bosch Trumagraph control unit. This machine has a punching force of 250 kN and a max. punching diameter of 76.2 mm. Includes set of tools and Quickset.

Overview

brand: TRUMPF
year: 1994
MODEL: TC260R
application type: Punching
Location: Croatia
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF TC260R

General Data

Measurements width: 6600 MM
Measurements depth: 7600 MM
Measurements height: 2470 MM
Machine weight: 16000 kg

Control Unit

Model: Trumagraph
Brand: BOSCH

Main drive

Punching force: 250 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1300 mm

Workpiece

Workpiece weight: 150 kg

Additional equipment

- Eqiuped with 7 retractble clamps
- Programmable flap for automatic front removal
- Set of tools and Quickset
- Set of selected spare parts
- Complete technical manuals
- LICENSED TRUMPF TRUTROPS POSTPROCESSOR

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max punching diameter 76. 2 mm
- - Automatic 10 station tool changer
Qualitative Machine Benefits:
- - Fully functional machine, under the trumpf preventive maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
