Trotec - Speedy 360GB-OTH-TRO-2016-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Trotec Speedy 360 For Sale | gindumac.com

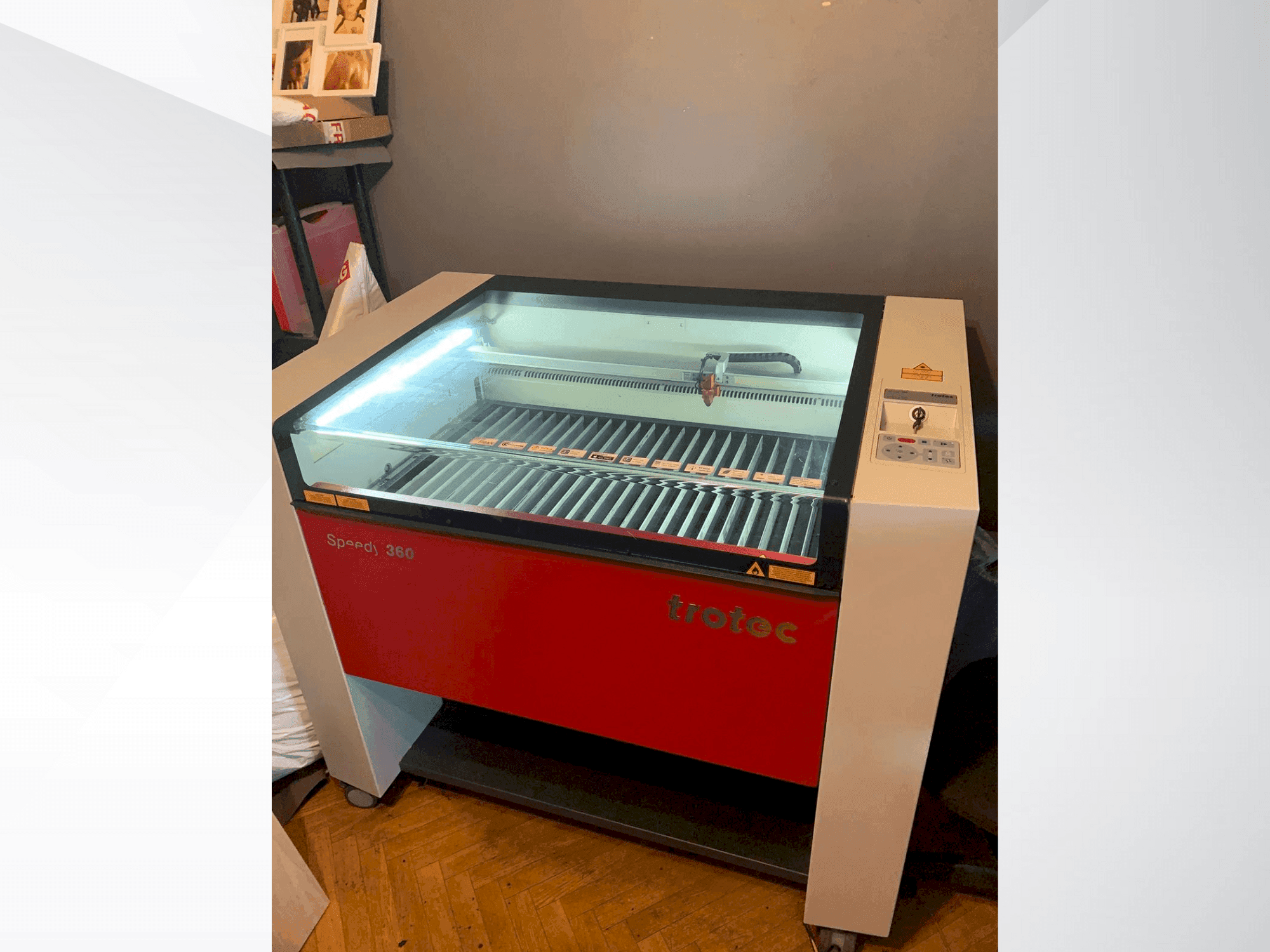

This Trotec Speedy 360 was manufactured in 2016. It features a working area of 813 x 508 mm and a multifunctional table concept with a programmable Z-axis. The machine offers a maximum processing speed of 355 cm/s and is equipped with brushless DC servo motors. It supports Ethernet connectivity and includes InPack Technology™ for dust protection. Ideal for detailed engraving work. Contact us for more information about this machine.
Overview
- brand: Trotec
- year: 2016
- MODEL: Speedy 360
- application type: Other Sheet Metal Machinery
- Location: United Kingdom
- machine type: Laser Engraving Machine
Additional Information
Additional equipment
- Gas-Kit Light: Control of external supplied compressed air with max. flow rate 150 l/min with max. 10 bar / Water Cooling Preparation: Additional parts to connect an external cooler
Machine Benefits
Technical Machine Benefits
- Max. Working area without camera: 813 x 508 mm / max. Working area with camera: 801 x 508 mm / max. Height of work piece: 210 mm with 1. 5 inch, 2. 0 inch lens / maximum material load: static up to 100 kg, dynamic up to 30 kg / max. Workpiece length cones: 550 mm / max. Workpiece diameter cones: 207 mm
- Working table: multifunctional table concept, rulers in mm or inches / aluminum cutting grid table / vacuum table: vacuum effect for fixation of thin or wavy materials
- Motors: brushless dc servo motors / encoder: incremental measuring system
- Max. Processing speed: 355 cm/s
- Max. Processing speed: 355 cm/s/ accuracy: +/- 0. 015 mm / addressable accuracy: 5 µm
- Interface: ethernet, optional wifi / software: ruby®
- Dimensions of machine (lxwxh): 1221 x 830 (790) x 1066 mm / weight (kg): approx. 235 to 250 kg
- Laser class: cdrh laser class 2 / ambient conditions: temperature +15° to +25° c, humidity 40% to max. 70%, not condensing / environment: dust free environment
- Minimum volume required: 350 m³/h
- Voltage & power consumption: 1 ~ ac 110-230v 50/60hz, approx. 1200 w to 1900 w
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
