TRIMILL VC1110
TRIMILL - VC1110
2011
Sold
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- TRIMILL VC1110 Vertical Machining Center
Show in original language

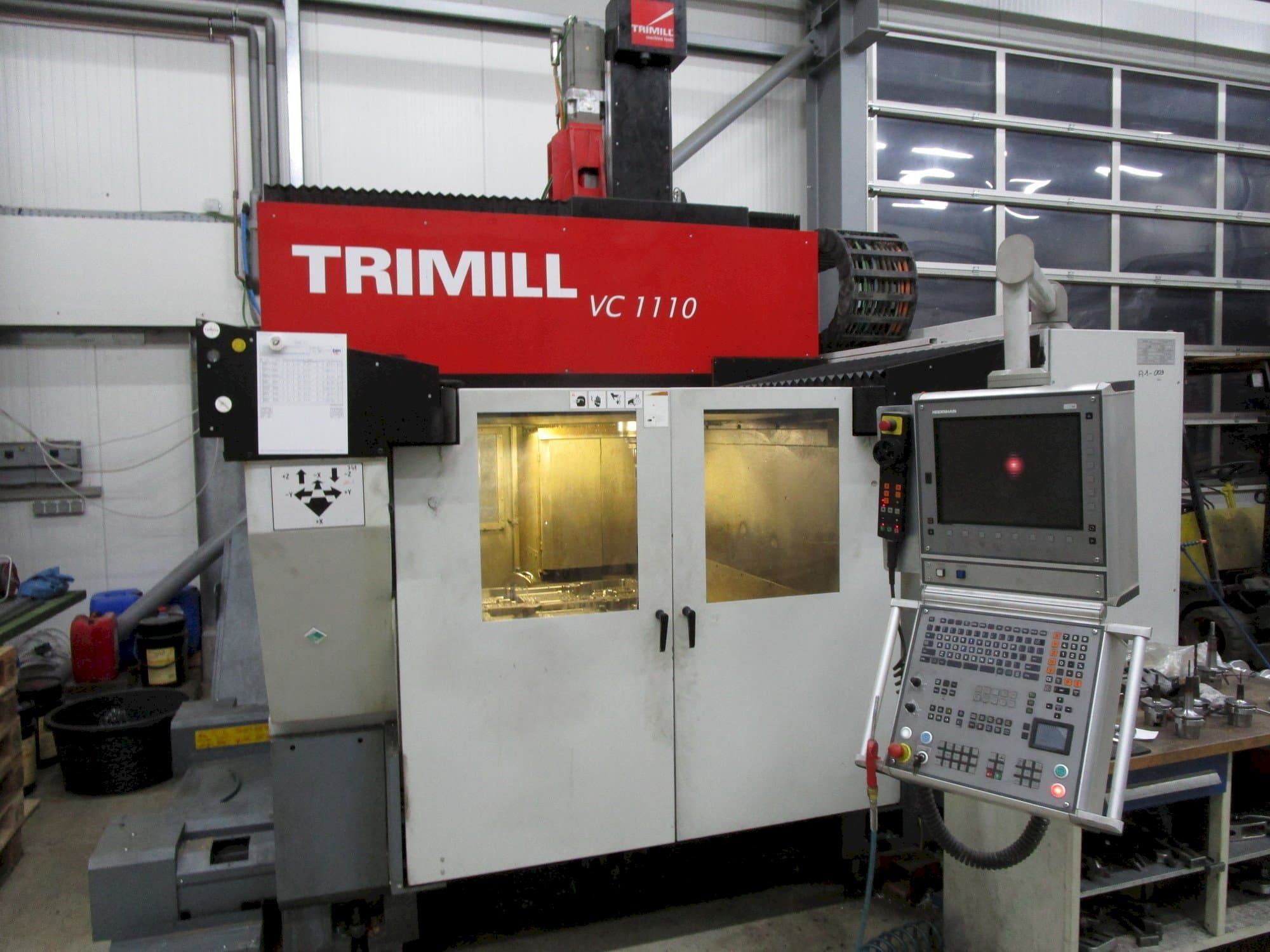

This TRIMILL VC1110 Vertical Machining Center was made in the year 2011 in the Czech Republic and has 34000 production hours, of which 15250 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit. The machine has a spindle speed of 24000 rpm.
Overview
- brand: TRIMILL
- year: 2011
- MODEL: VC1110
- production hours: 34000
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
- GINDUMAC ID: DE-MIL-TRI-2011-00002
Technical Information
Control Unit
- Brand: Heidenhain
- Model: iTNC 530
Main drive
- Spindle speed range: 24000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1100 mm
- Y-AXIS Movement: 1000 mm
- Z-AXIS Movement: 700 mm
Workpiece
- Workpiece weight: 8000 kg
Table
- Outer length: 1300 mm
- Outer width: 1370 mm
Tools
- Type of tool holder: HSK - A100
Additional Information
- Technical Machine Benefits:
- - High-frequency main spindle 25 kw, 170 nm, hsk 80 tool holder
- - Milling spindle cooling
- - Supply of compressed air through the inner spindle
- - Machine table for receiving the workpieces
- - Cnc control heidenhain itnc 530 hsci with 15" tft color screen
- - Direct path measuring systems in all axes
- - Tool changer in plate design for 10 tools
- - 2 screw conveyors, 1 gooseneck slat conveyor
- - Work area enclosure complete, incl. Textile roof
- - High frequency finishing spindle imt 8 kw with automatic tool clamping hsk 40, 24. 000 1/min, docking station
- Qualitative Machine Benefits:
- - Blum laser control for tool measurement
- - Low pressure minimum quantity oiling with external feed trimill inform
- - Trimill teleservice
- - Attachment clamping plate 1. 300 x 1. 350 x 150 mm with t-slots
- - Stable 3-axis machine, specially developed for tool, die and mold making
- - Traversing speeds [mm/min] 30,000
- - Axis accelerations [m/s2] 3
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Your account manager:
Alessandro Martini
Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
Payment Terms
Payment in advance
Asset Financing
