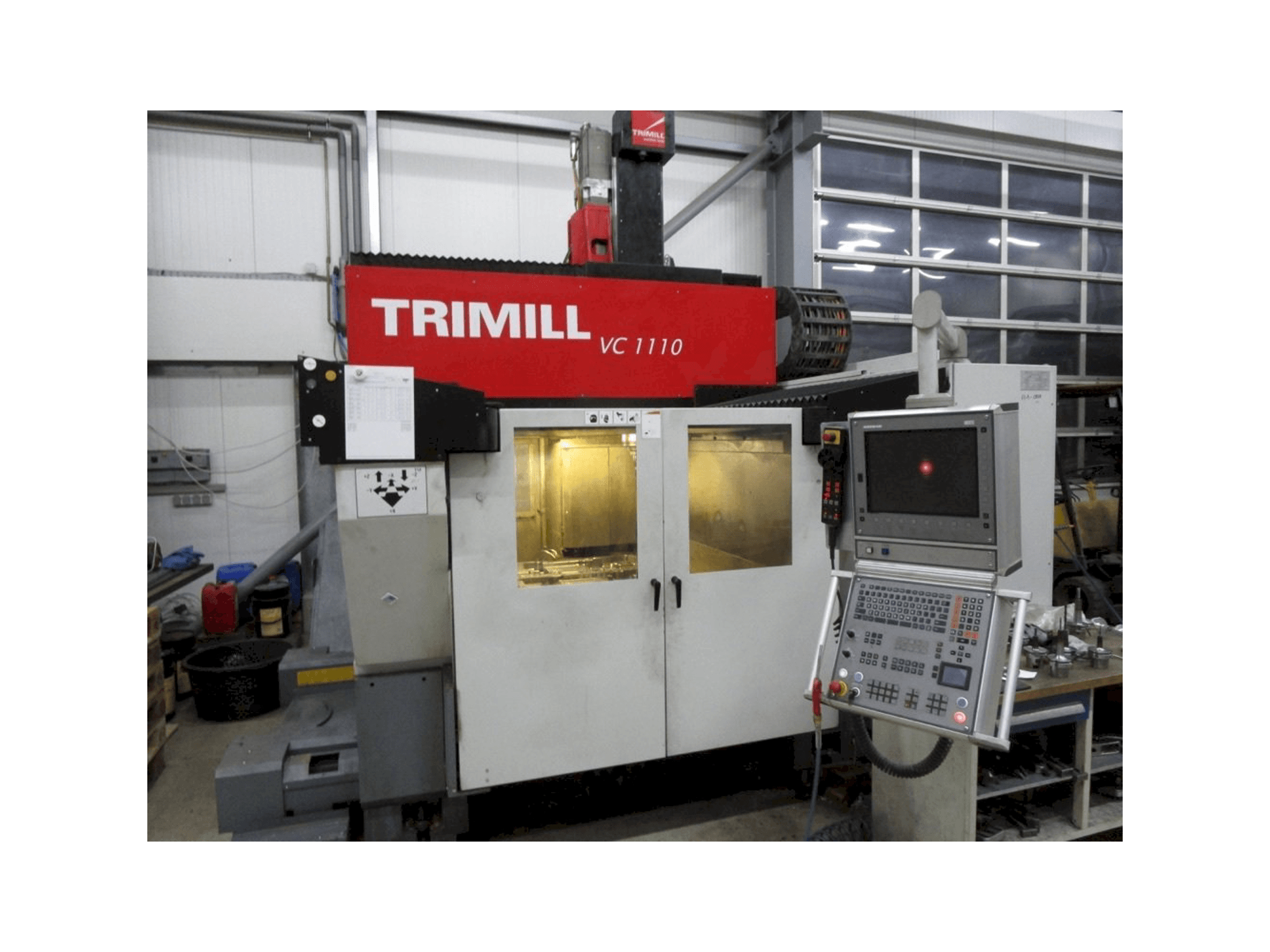

TRIMILL VC1110 milling machine

Show in original language

This TRIMILL VC1110 milling machine was made in the year 2011 in the Czech Republic. It is operated with a Heidenhain TNC530 control unit. It has approximately 12000 spindle hours. This machine has a spindle speed up to 14000 rpm. This 3 axis machine especially developed for the tool, die and mould industry.

Overview

brand: TRIMILL
year: 2011
MODEL: VC1110
production hours: 12000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - TRIMILL VC1110

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC530

Dimensions

Machine Depth: 3550 mm
Machine Height: 3810 mm
Machine Weight: 15000 kg
Table Length: 1500 mm
Table Load: 8000 kg
Table Width: 1300 mm

Movement

Number of Axes: 3
X-axis Travel: 1000 mm
Y-axis Travel: 1110 mm

Technical Specification

Spindle Power: 25 kW
Spindle Speed: 14000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Laser measurement
10 compartment changer
3-d probe
Top equipped

Technical Machine Benefits

Heavy duty 3-axes machine, especially developed for the tool-, die- and mould industry
Closed design of the double-beam and cross-slide (box in box design) with internal, quadruple guided ram-type milling unit
Constantly perfect cutting results by means of load- and thermo symmetric design
Execution as overhead gantry, therefore controlled dynamic and accuracy
Stationary work piece for constantly good surface qualities
High productivity by means of roughing and finishing in one set-up
Very compact machine, large working area in spite of extreme small floor-space
Customized distance between spindle nose and clamping surface
Ergonomic operation by means of floor-level access to the machine tool
Convincing cost-performance ratio

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
