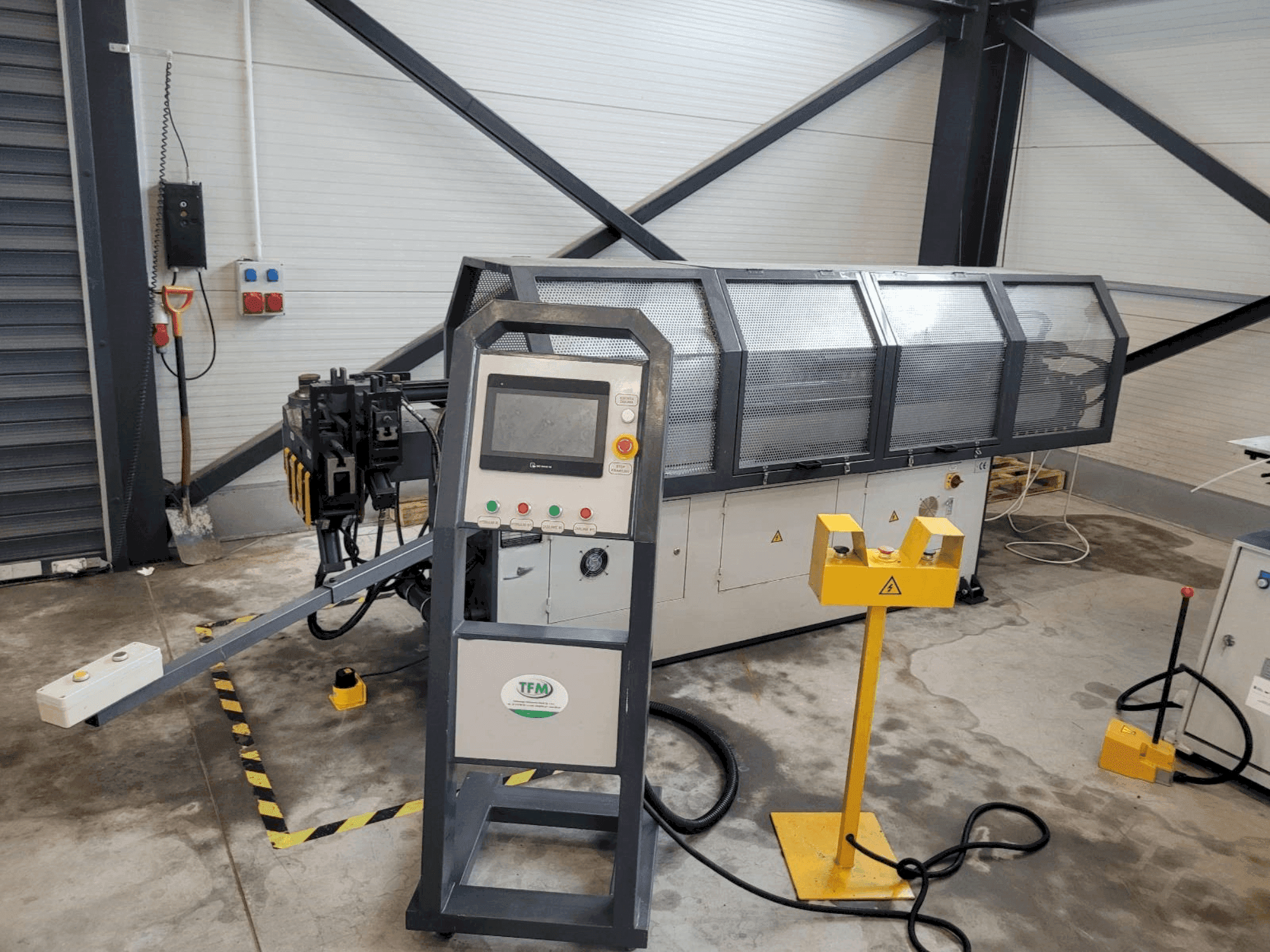

This TFM GM-SB-38CNC-2A1S was manufactured in 2019. It features a max bending capacity of 38 × 2 mm, bending speeds up to 65 °/sec, and motor power of 4 kW. Ideal for precise bending with a max bending angle of 180° and effective length over mandrel of 3200 mm. Consider the opportunity to buy this TFM GM-SB-38CNC-2A1S profile bending machine. Contact us for more information.
Overview
- brand: TFM
- year: 2019
- MODEL: GM-SB-38CNC- 2A1S
- application type: Rolling
- Location: Poland
- machine type: Profile Bending Machine
Technical Information - TFM GM-SB-38CNC- 2A1S
Dimensions
- Machine Depth: 4000 mm
- Machine Height: 1300 mm
- Machine Weight: 1500 kg
Additional Information
Machine Benefits
Technical Machine Benefits
- Max. Bending capacity: 38 × 2 mm
- Min. Bending radius: 20 mm
- Max. Bending radius: 200 mm
- Max. Bending angle: 180°
- Bending precision: ±0. 1°
- Turning angle precision: ±0. 1°
- Feeding precision: ±0. 1°
- Effective length over mandrel: 3200 mm
- Bending speed: 65 °/sec
- Turning pipe speed: 180 °/sec
Extra Information
Feeding speed: 900 mm/sec Motor power of oil system: 4 kW Oil pump flow rate: 17 L/min Max. pressure: 160 kg/cm²
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
