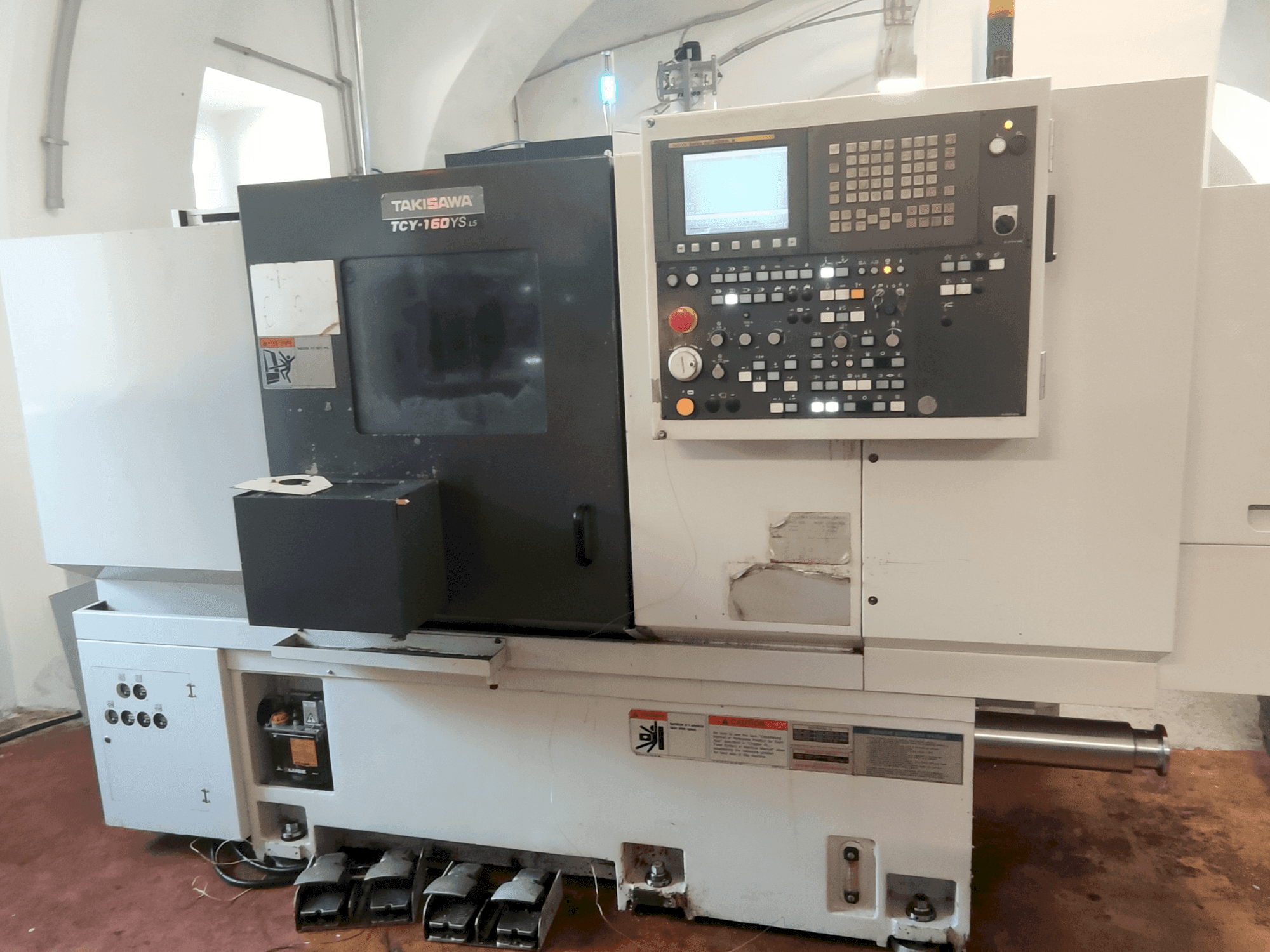

Front view of Takisawa TCY-160YS L5  machine

Takisawa TCY-160YS L5

Takisawa - TCY-160YS L5

2015

Rs. 4,659,050

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Takisawa TCY-160YS L5 Lathe was manufactured in the year 2015. It is equipped with a FANUC Seris 32i B. The machine has a spindle speed of 6000 rpm. Simultaneous machining with spindle and counter spindle based on bar capacity of 42mm. As an Opposed Twin-Spindle CNC Lathe with a max. turning diameter of 220 mm and max. turning length of 491 mm it provides a solid turning solution for machinists.

Overview

  • brand: Takisawa
  • year: 2015
  • MODEL: TCY-160YS L5
  • application type: Turning
  • Location: Czech Republic
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: CZ-TUR-TAK-2015-00001

Technical Information

General Data

  • Measurements width: 2760 MM
  • Measurements depth: 1695 MM
  • Measurements height: 1700 MM
  • Machine weight: 4100 KG

Control Unit

  • Brand: FANUC
  • Model: Seris 32i B

Main drive

  • Number of spindles: 2
  • Spindle speed range: 6000 1/min

Movement

  • X-AXIS Movement: 185 MM
  • Y-AXIS Movement: +/- 30 MM
  • Z-AXIS Movement: 530 MM

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 12

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Bar capacity 42 mm
      • - Max. Swing 340 mm
      • - Max. Turning diameter 220 mm
      • - Max. Turning length 491 mm
      • - Main spindle power 5. 5/3. 7 kw
      • - Sub-spindle speed 6000 rpm, power 3. 7/2. 2 kw
      • - 3. 7/2. 2/1. 5 kw milling motor; 6,000 rpm milling speed
      • - Air blow and coolant through spindle
      • - Workpiece ejector / spring type
      • - Incl. Tool holders
    • Qualitative Machine Benefits:
      • - Good condition

    Extra information

    • - Machine manual available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
