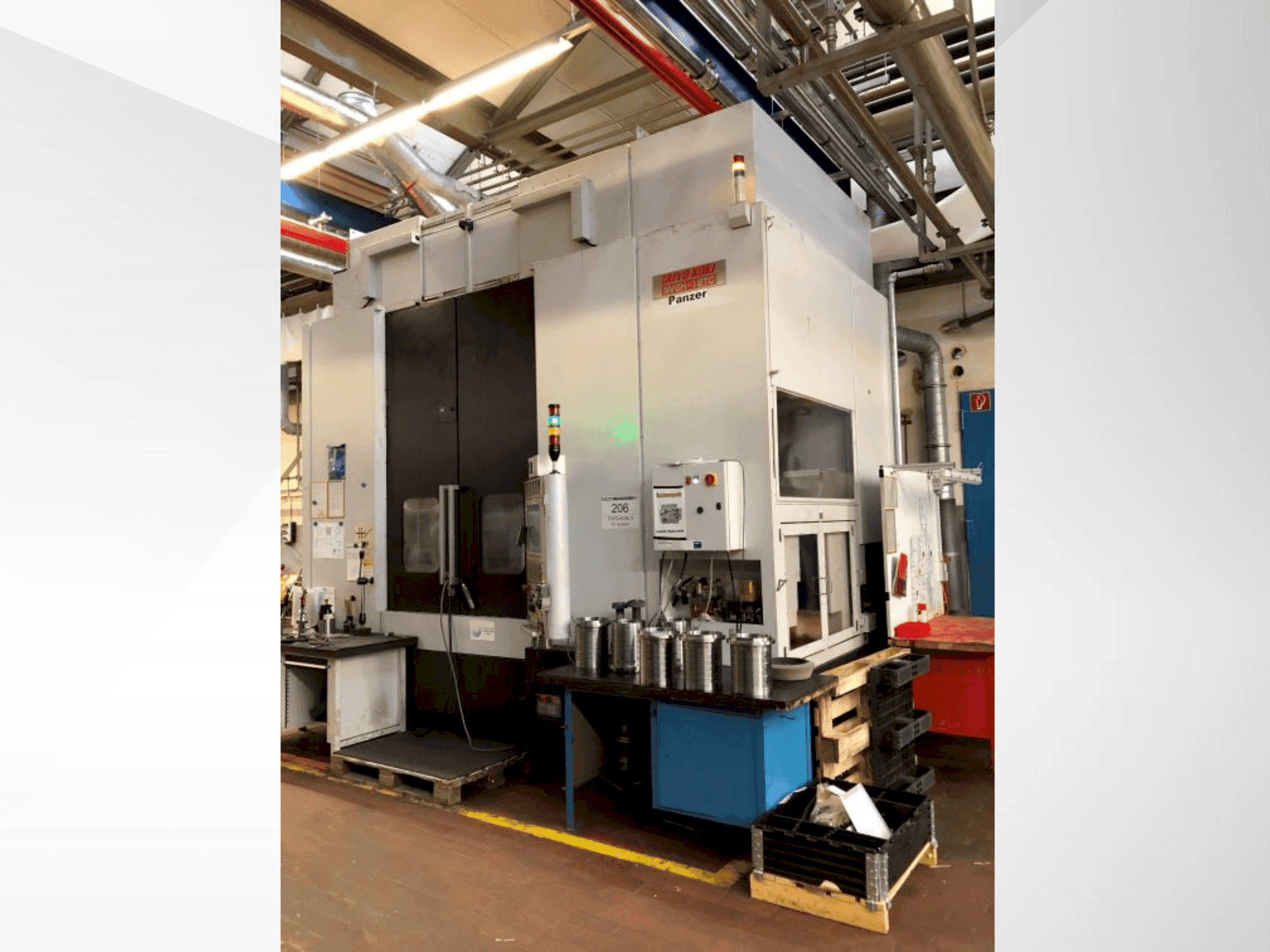

Front view of TAIYO KOKI KOKI NVGH 12TC  machine

TAIYO KOKI KOKI NVGH 12TC

TAIYO KOKI - KOKI NVGH 12TC

2010

Rs. 37,701,750

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TAIYO KOKI KOKI NVGH 12TC Grinding machine was manufactured in the year 2010 in Japan ans has 18000 production hours. It is equipped with a Fanuc 31i control unit. The machine disposes of grinding wheel spindle which has a speed range of 1200-6000 rpm. Contact us anytime for further questions.

Overview

  • brand: TAIYO KOKI
  • year: 2010
  • MODEL: KOKI NVGH 12TC
  • production hours: 18000
  • application type: Grinding
  • Location: Germany
  • machine type: Grinding machines
  • availability: Immediately
  • control unit brand: MAPPS
  • GINDUMAC ID: DE-GRI-TAI-2010-00001

Technical Information

General Data

  • Measurements width: 4449 mm
  • Measurements depth: 3400 mm
  • Measurements height: 3500 mm
  • Machine weight: 30000 kg

Control Unit

  • Brand: MAPPS
  • Model: IV

Main drive

  • Number of spindles: 1
  • Spindle speed range: 1200-6000 1/MIN
  • Spindle motor power: 18.8 kW
  • Number of axis: 4

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Capacity: inner grinding diameter 100-1100 / outer grinding diameter range max. 1200, od straight 600 / angular approx. 150, stroke to workpiece spindle 1250, max. Load on chuck 1. 65 tonnes (chuck: 1. 1t)
      • - Grinding wheel spindle: diameter 75-355, taper bore hsk125a, output 25 kw
      • - Workpiece spindle: table size 1200, speed 150 min-1 (400 vac)
      • - Axes: x 1200 to the right/640 to the left/40000 mm/min, z 775/30000 mm/m
      • - Disc head rotation: max. Indexing angle 240°, indexing angle at the grinding position +/-30°, normal torque 7500 n
      • - Chuck throat (from floor to chuck surface): 1086

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
