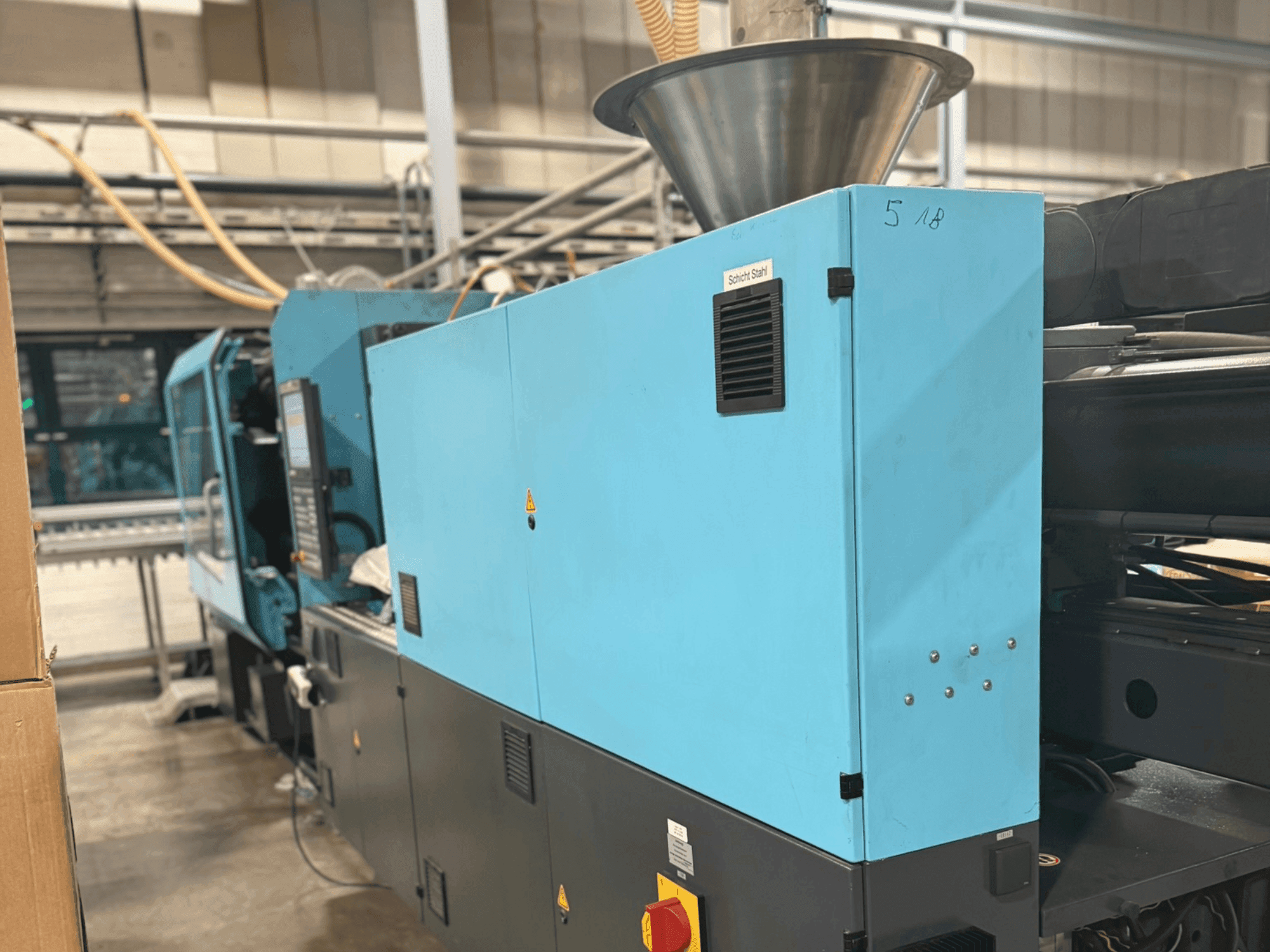

SUMITOMO SHI DEMAG - El-Exis S250/630-1600DE-INJ-SUM-2012-00001

Clamping unit size: 250

Holding force: 2750 kN

Platen size (H x V): 930 x 930 mm

Distance between tie bars (H x V): 630 x 630 mm

Ejector retraction force: 40 kN

Injection unit (size 1600)

• Screw geometry: Standard

• L/D ratio: 25

• Injection rate (PS, without accumulator): 530 cm3/s

• Metering stroke: 270 mm

• Nozzle stroke (max): 110 mm

• Material hopper capacity: 110 L

Electric metering drive: 13.1 kW

Cylinder heating: 14.8 kW

Dry cycle time (EUROMAP 6): 1.2 s

Dry cycle stroke (EUROMAP 6): 441 mm

Dimensions

• Max drive overhang with nozzle contact: 184 mm

• Max drive overhang with nozzle retraction: 1279 mm

The maximum injection weight in polypropylene is 482 g with a screw diameter of 50 mm
