STUDER S40 CNC

Photo Gallery

STUDER - S40 CNCIT-GRI-STU-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used STUDER S40 CNC For Sale | gindumac.com

Show in original language

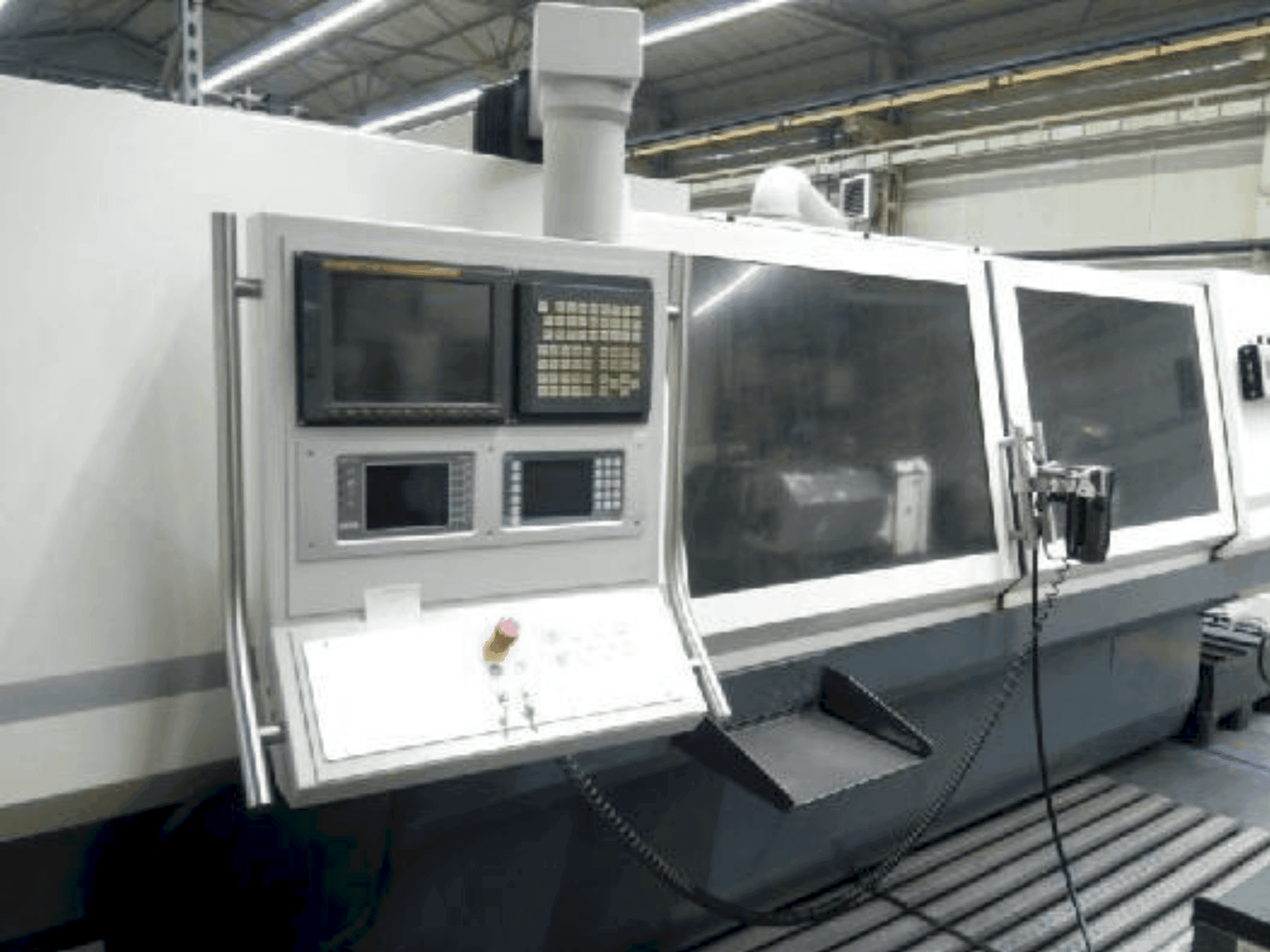

This STUDER S40 CNC cylindrical grinding machine was manufactured in 2011. It features a distance between centers of 1600 mm and a center height of 225 mm. Equipped with one external grinding wheel and two internal electrospindles, it offers speeds up to 42,000 rpm. Includes a coolant filtration unit, self-centering chuck, and various tooling. Contact us for more information about this machine.

Overview

brand: STUDER
year: 2011
MODEL: S40 CNC
production hours: 50000
application type: Grinding
Location: Italy
machine type: Cylindrical Grinding Machine
control unit brand: FANUC

Technical Information - STUDER S40 CNC

Control Unit

Brand: FANUC
Model: Series 16i-T

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centers: 1600 mm
- - Center height: 225 mm
- - Grinding configuration: 1 external grinding wheel in position t4 (right side) / 2 internal electrospindles at positions t1 and t2 with speeds of 24000 and 42000 rpm
- - B-axis with hirth coupling, adjustable in 1° increments / fine positioning accuracy: 0. 0001°
- - Workhead (headstock): iso 50 taper
- - Tailstock: included / self-centering chuck: included
- - Coolant filtration unit: included
- - Accessories included: various tooling and attachments / dresser: flip-up diamond dresser for wheel dressing / grinding wheels included: for both internal and external operations
- - Maintenance history: completed in 2024 / next scheduled maintenance: march 2025 by studer service

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
