STAR MICRONICS - SV-12DE-TUR-STA-2004-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used STAR MICRONICS SV-12 For Sale | gindumac.com

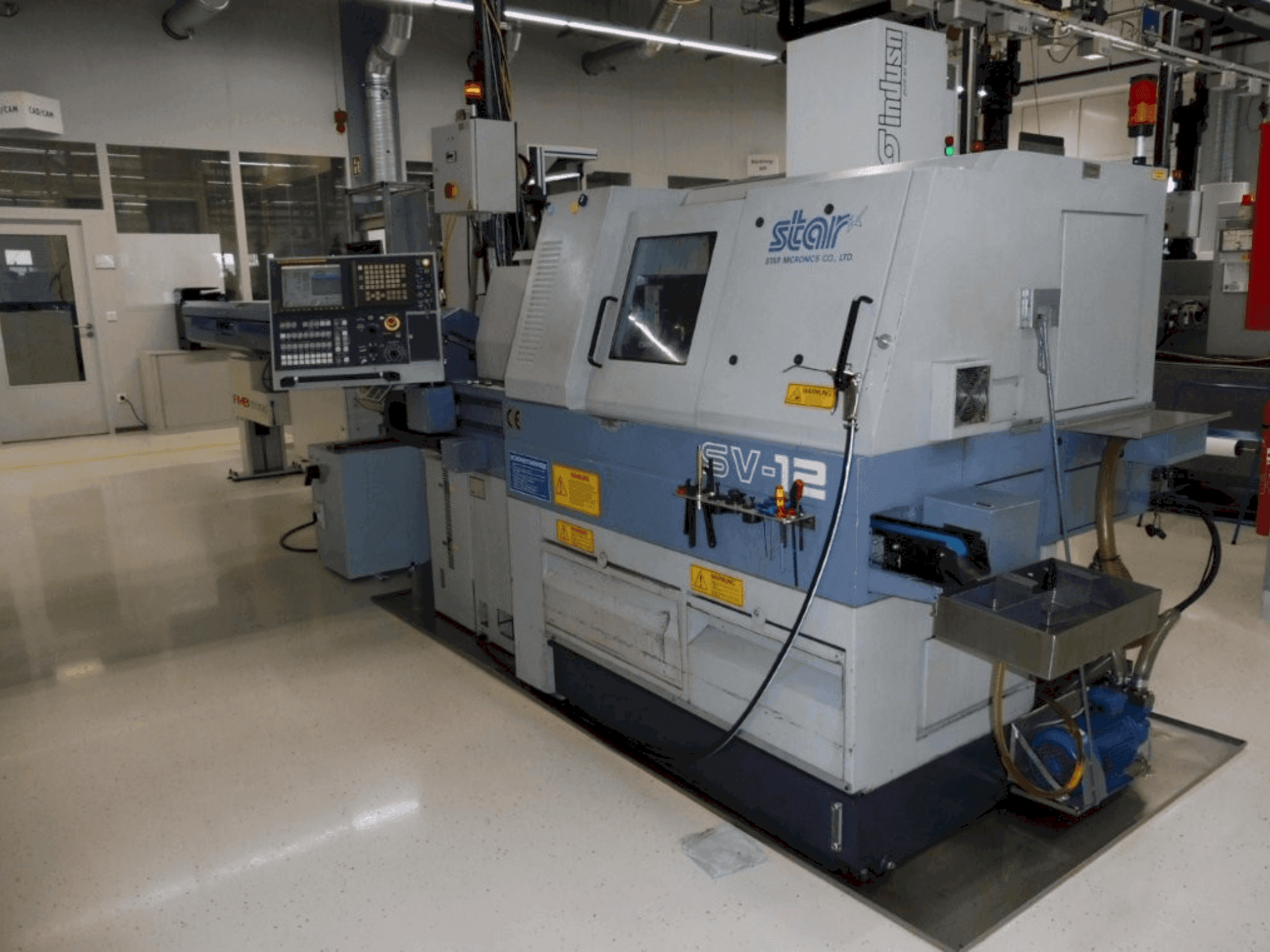

This STAR MICRONICS SV-12 was manufactured in 2004. A reliable Swiss type turning machine, it offers precision and efficiency for specialized turning operations. If you are looking to get high quality turning capabilities consider the STAR MICRONICS SV-12 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: STAR MICRONICS
- year: 2004
- MODEL: SV-12
- production hours: 67000
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - STAR MICRONICS SV-12
Control Unit
- Control Brand: FANUC
- Control Model: Series 16i-T
Dimensions
- Machine Depth: 2670 mm
- Machine Height: 1660 mm
- Machine Weight: 3400 kg
Technical Specification
- Spindle Power: 2.2 kW
- Spindle Speed: 12000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Bar Feeder: Yes
- Indusa Extraction System: Yes
- Loading Magazine: FMB Minimag 18
- Workpiece drm: Φ13 mm
Machine Benefits
Qualitative Machine Benefits
- The machine is very well-maintained, as it comes from the medical sector.
Technical Machine Benefits
- Several parts are completely new, including: power supply cable for a-axis sv-12, control cable for a-axis sv-12, brake cable for a-axis sv-12, alpha servo a3b/3000 a64+s
- Technical machine benefits: integrated mechanical/electrical/hydraulic structure
- Qualitative machine benefits: well-maintained from the medical sector
- Operation mode: right-handed machine
- Maximum machining diameter: Φ13 mm /maximum drilling: stationary tool: Φ10 mm, power-driven tool: Φ8 mm /maximum tapping: stationary tool: m8 × p1. 25, power-driven tool: m6 × p1. 0 /maximum milling: Φ10 mm /maximum die cutting: m8 × p1. 25 / maximum slotting: 2 mm width × 6 mm depth
- Coolant oil: water-soluble / non-water-soluble
- Hydraulic oil: mineral hydraulic oil (viscosity grade: iso vg32)
- Lubrication oil: sliding surface lubricant (viscosity grade: iso vg68)
- Power supply: voltage: 3 phase ac200v ±10%, frequency: 50/60 hz ±1 hz, capacity: loading power average: 10 kva
Extra Information
Tools Whirling Holder Polygon Apparatus Driven Holders (3) Swiveling Driven Holder Double Holders (2) Tool Holders (2) Fixed Holders (5)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
