➤ Used STAR MICRONICS SR-32JII-typeA | Swiss Type Lathe

Show in original language

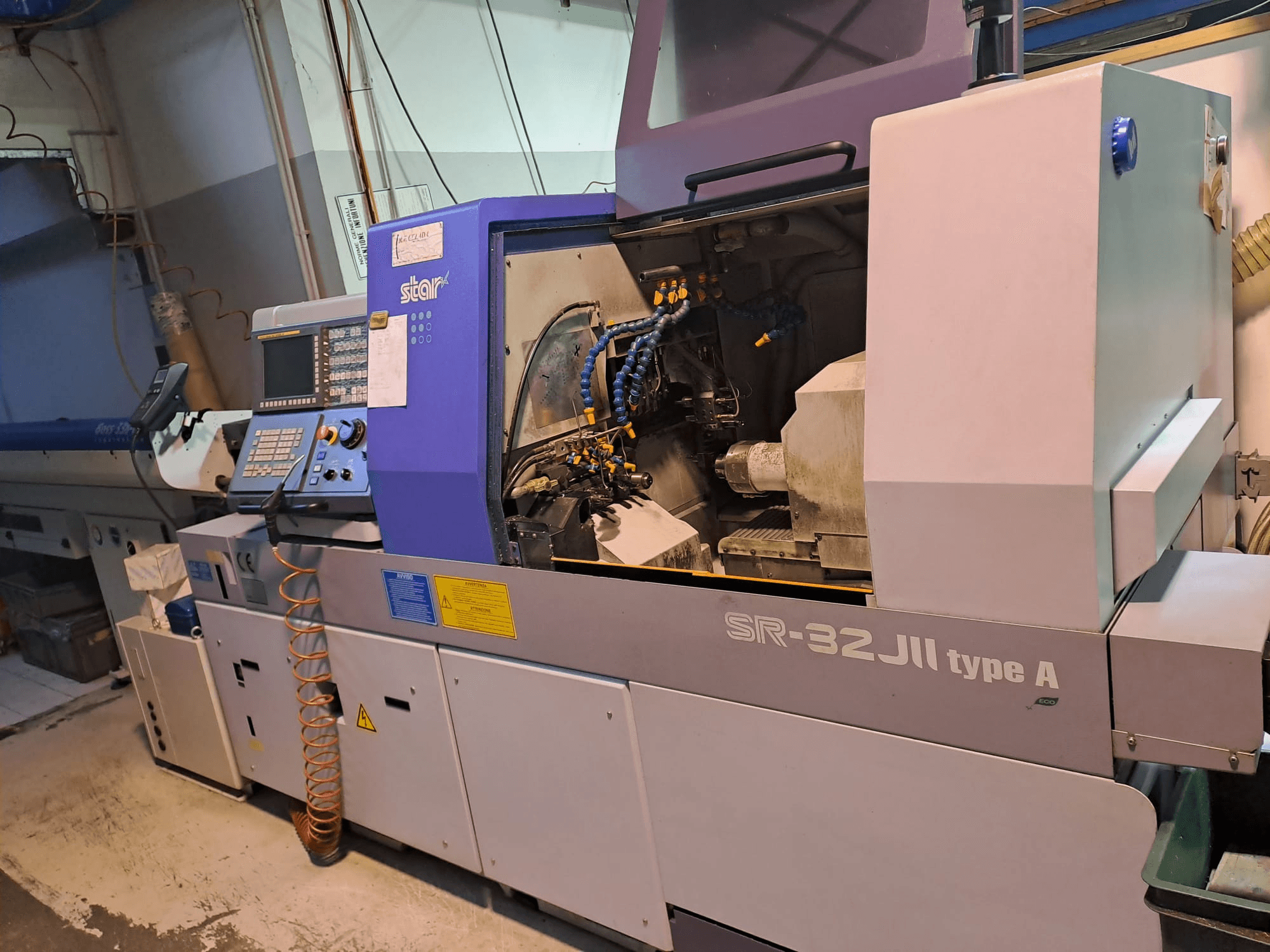

This 7-axis STAR MICRONICS SR-32JII-typeA was manufactured in 2017. It features a bar capacity of Ø32 mm and includes a main spindle and sub-spindle with C axis. The machine is equipped with a synchronized guide bushing and a gang tool plate with 6 positions. If you are looking to get high-quality turning capabilities, consider the STAR MICRONICS SR-32JII-typeA swiss type turning machine we have for sale. Contact us for further details.

Overview

brand: STAR MICRONICS
year: 2017
MODEL: SR-32JII-typeA
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - STAR MICRONICS SR-32JII-typeA

Control Unit

Control Brand: FANUC
Control Model: 32i-B

Dimensions

Machine Height: 1780 mm
Machine Length: 2690 mm
Machine Weight: 4100 kg
Machine Width: 1345 mm

Movement

Number of Axes: 7

Technical Specification

Counter Spindle: Yes
Max. Bar Diameter: 32 mm

Additional Information

Bar capacity: Ø32 mm
Spindles: Main + sub-spindle with C axis
Guide bushing: Synchronized type (Neukomm)
Cross slides: X-Y / X-Z configuration

Standard equipment

Pneumatic unit
Safety door lock
Spindle & sub-spindle cooling unit
Coolant tank: 255 L with level & flow control
Automatic lubrication system
Working area lighting
Pneumatic cleaning through sub-spindle
Tool breakage control
Parts conveyor
Electronic handwheel
RS232 / USB interface
CE marking

Tooling configuration

Gang tool plate with 6 positions
5 radial tool positions (incl. 3 motorized ER20)
5 front tool positions (incl. ER16 + ER20)
Motorized backworking plate (6 positions)

Additional equipment

High-pressure pre-installation
High-pressure coolant system: 69 bar / 20 L/min
Rear axial drilling/milling unit (ER16)
Chip conveyor
Coolant filtration system

Bar feeder

IEMCA BOSS 338/37 HD
- Max bar length: 3700 mm
- Capacity: Ø38 mm

Machine hours; 4,000 hours of work

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
