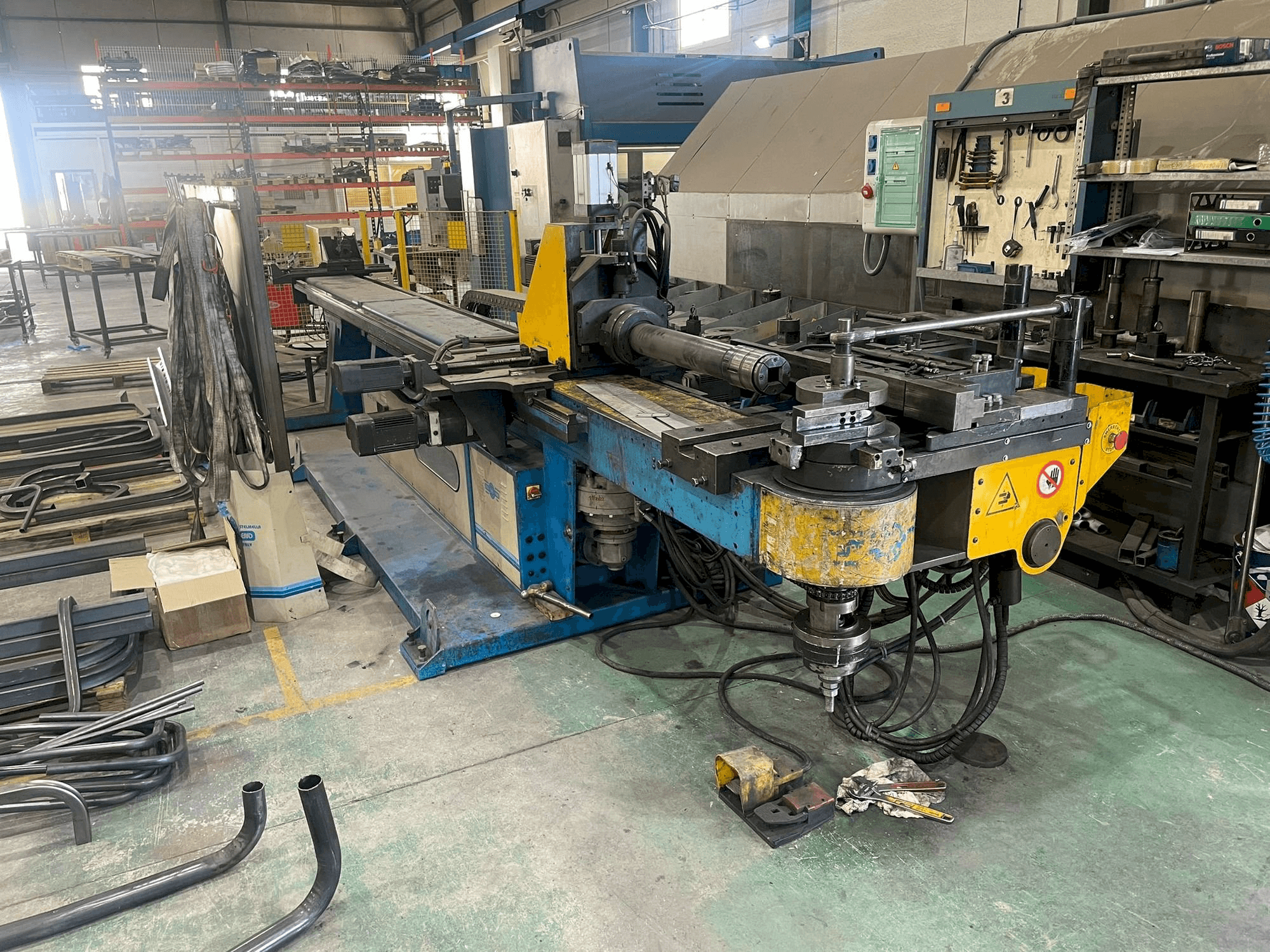

STAR-BEND - STAR 800 CN6/GEN/LES-BEN-STA-2006-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Minimum inner bending radius (_1) with standard shaft (Ø 60 mm) <= 40 mm
  • - Maximum bending radius with standard arm (on the axis of the tube) 320 mm
  • - Maximum bending radius with special arm (on the axis of the tube) 600 mm
  • - Useful length on spindle (_3) 6000 mm
  • - Spindle neck (over the die center) 1200 mm
  • - Head height (from die throat center) 520 mm
  • - Working height from die center to floor (_2) 1210 mm
  • - Maximum bending angle 220 °.
  • - Inner pitch of the positioning 80 mm
  • - Adjustable clamping carriage stroke 120 mm, adjustable spindle travel (_2) 0-100 mm, adjustable stroke of contrast slide 120 mm
• Qualitative Machine Benefits:
  • - Precision speed: max. Bending speed (y-axis)(*2) 90°/1".
  • - Max. Translation speed (x-axis) 1000 mm/1".
  • - Max. Rotation speed (z axis) 360°/1".
  • - Repeatability translation rate (x axis) +/- 0. 1 mm.
  • - Repeatability of bending angle (y-axis) +/- 0. 1°.
  • - Repeatability rotation angle (z axis) +/- 0. 1 °.
  • - Maximum productivity (with bends at 90°) 500 cycle / hour
