SPINNER TTC300-52 SMMCY

Photo Gallery

SPINNER - TTC300-52 SMMCYTR-TUR-SPI-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
SPINNER TTC300-52 SMMCY Lathe

Show in original language

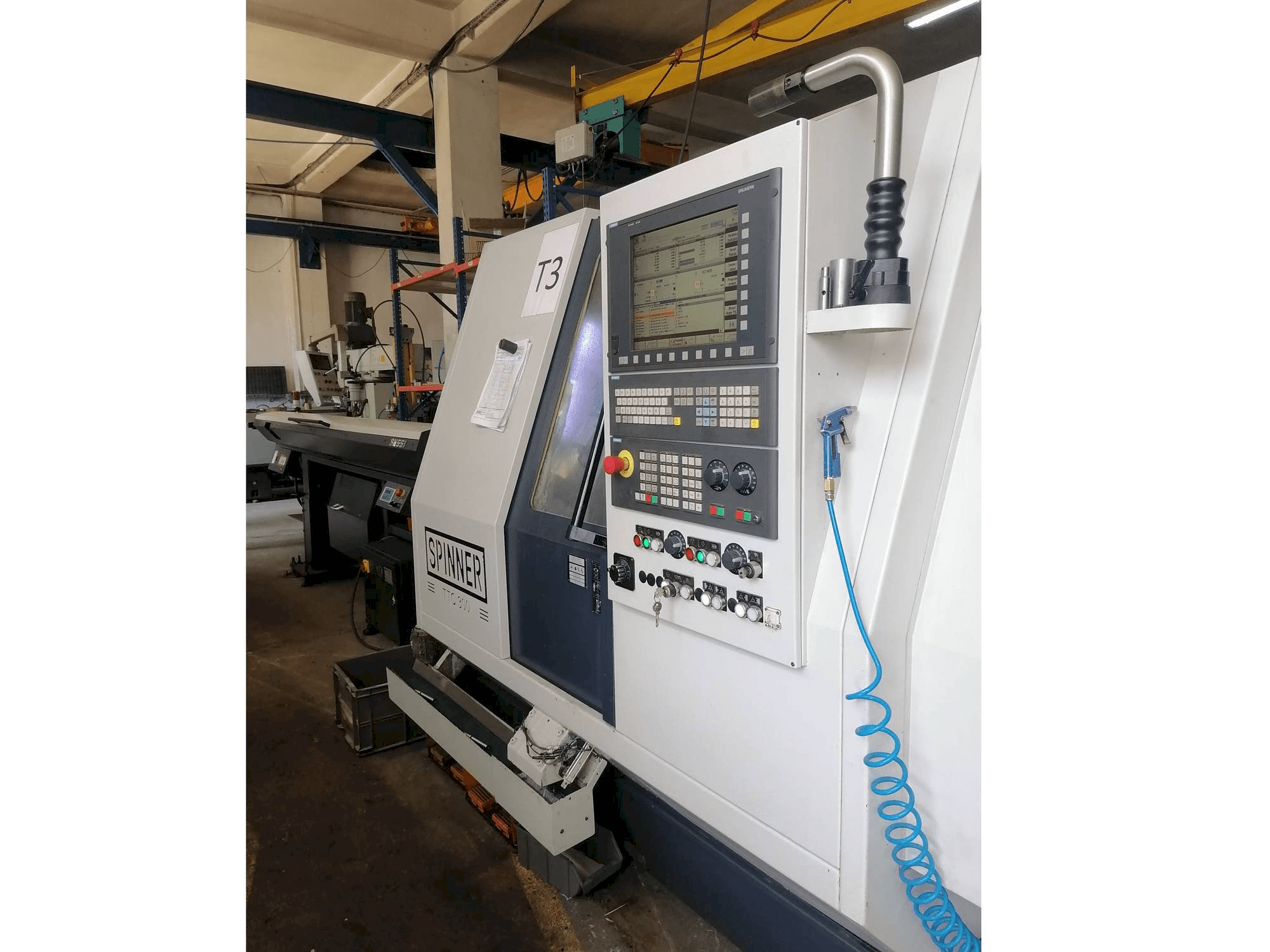

This SPINNER TTC300-52 SMMCY Lathe was manufactured in the year 2012 in Turkey. It is operated through a Siemens Sinumerik 840D control unit. This machine can operate with a spindle speed of up to 5000 rpm and a maximum turning length of 400 mm. 2 units are available.

Overview

brand: SPINNER
year: 2012
MODEL: TTC300-52 SMMCY
application type: Turning
Location: Turkey
machine type: Horizontal Turning Machine

Technical Information - SPINNER TTC300-52 SMMCY

General Data

Measurements width: 2000 mm
Measurements depth: 2000 mm
Measurements height: 2000 mm
Machine weight: 4600 kg

Main drive

Spindle speed range: 5000 1/MIN

Media

Main electronic connection: 3 x 400 V - 50/60 Hz
Chip conveyor: Yes

Additional Information

Additional equipment

LNS SYS51 magazine bar feeder, dia 51 max
Spindle coolant system, Electronic panel coolant system
Spinner original

Machine Benefits

Qualitative Machine Benefits

Two turrets are working simultaneously
Siemens 840d with shop turn options.

Technical Machine Benefits

Max. Slewing diameter: 400 mm
Max. Turning diameter: 200 mm
Max. Turning length: 400 mm
Stroke x1/x2/y (option) /z: 180/110/(+40/-40)/450 mm
Max. Speed x1/x2/y/z: 15/15/15/24
Mirror size: 210 mm
Spindle motor power (100% / 40%) torque (100% / 40%): 15 / 19 kw
Cooling tank capacity: 150l
Upper turret has c and y axis
Lower turret is c axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
