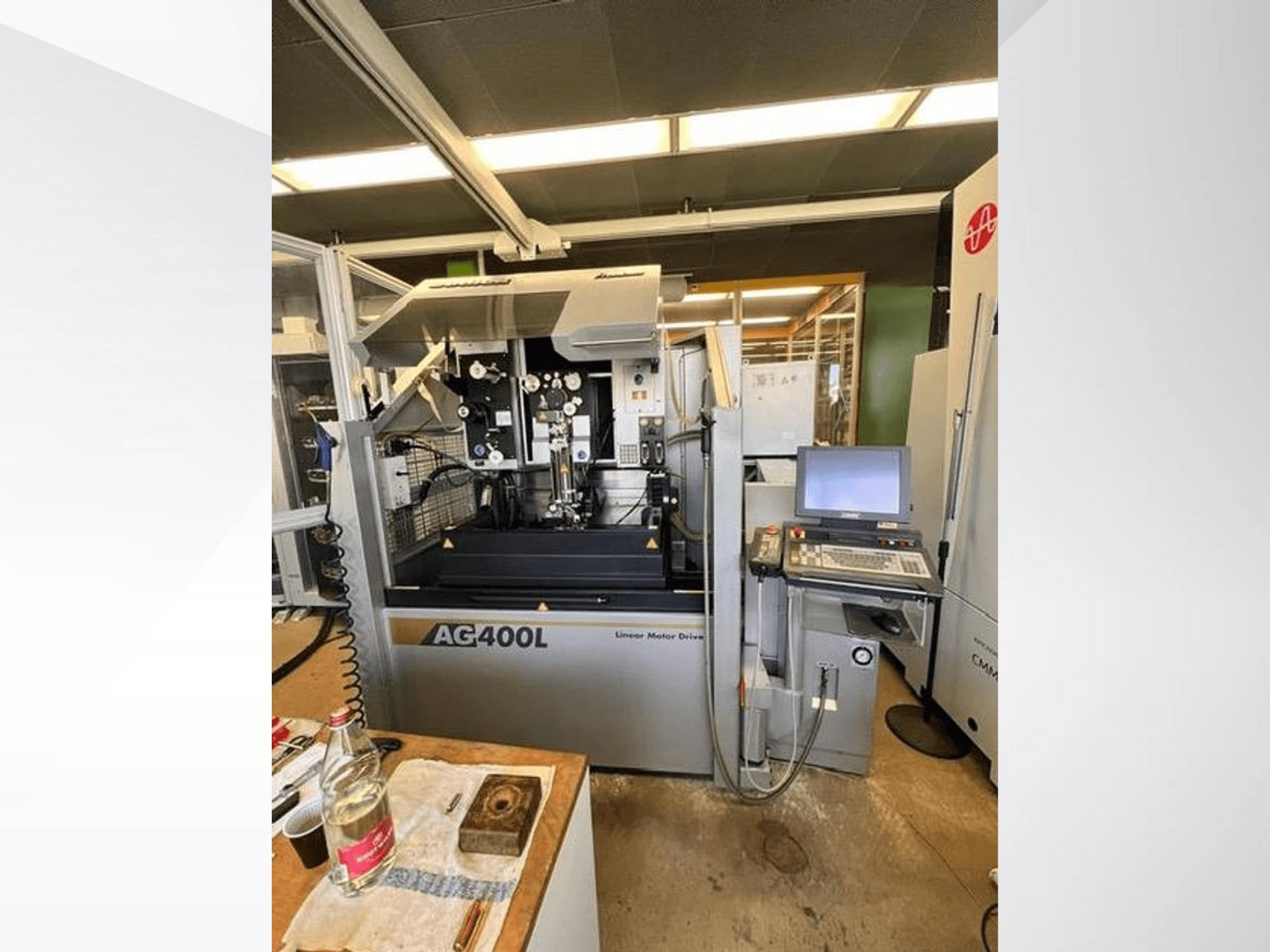

Sodick AG 400 L

Photo Gallery

Sodick - AG 400 LIT-EDM-SOD-2012-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick AG 400 L - Wire EDM For Sale | gindumac.com

Show in original language

This 5-axis Sodick AG 400 L wire EDM machine was manufactured in 2012. It features a work tank of 850 × 610 mm, supports a maximum workpiece weight of 500 kg, and offers extensive travel with X-axis at 400 mm, Y-axis at 300 mm, and Z-axis at 250 mm. Wire diameters range from 0.15 to 0.33 mm with a feed speed up to 420 mm/sec. Consider the opportunity to buy this Sodick AG 400 L wire EDM machine. Contact us for more information.

Overview

brand: Sodick
year: 2012
MODEL: AG 400 L
application type: EDM
Location: Italy
machine type: Wire EDM Machine

Technical Information - Sodick AG 400 L

Dimensions

Machine Depth: 2395 mm
Machine Height: 2220 mm
Machine Length: 2225 mm
Machine Weight: 3950 kg

Movement

Number of Axes: 5
X-axis Travel: 400 mm
Y-axis Travel: 300 mm
Z-axis Travel: 250 mm

Additional Information

U-axis travel: 120 mm
V-axis travel: 120 mm
Max workpiece height: 240 mm
Max workpiece weight: 500 kg
Table / work tank dimensions: 850 x 610 mm
Wire diameter: 0.15 – 0.33 mm
Wire feed speed: 420 mm/sec
Wire tension: 300 – 2300 g
Wire spool capacity: 5 – 8 kg
Dielectric tank dimensions: 650 x 2080 mm
Dielectric capacity: 600 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
