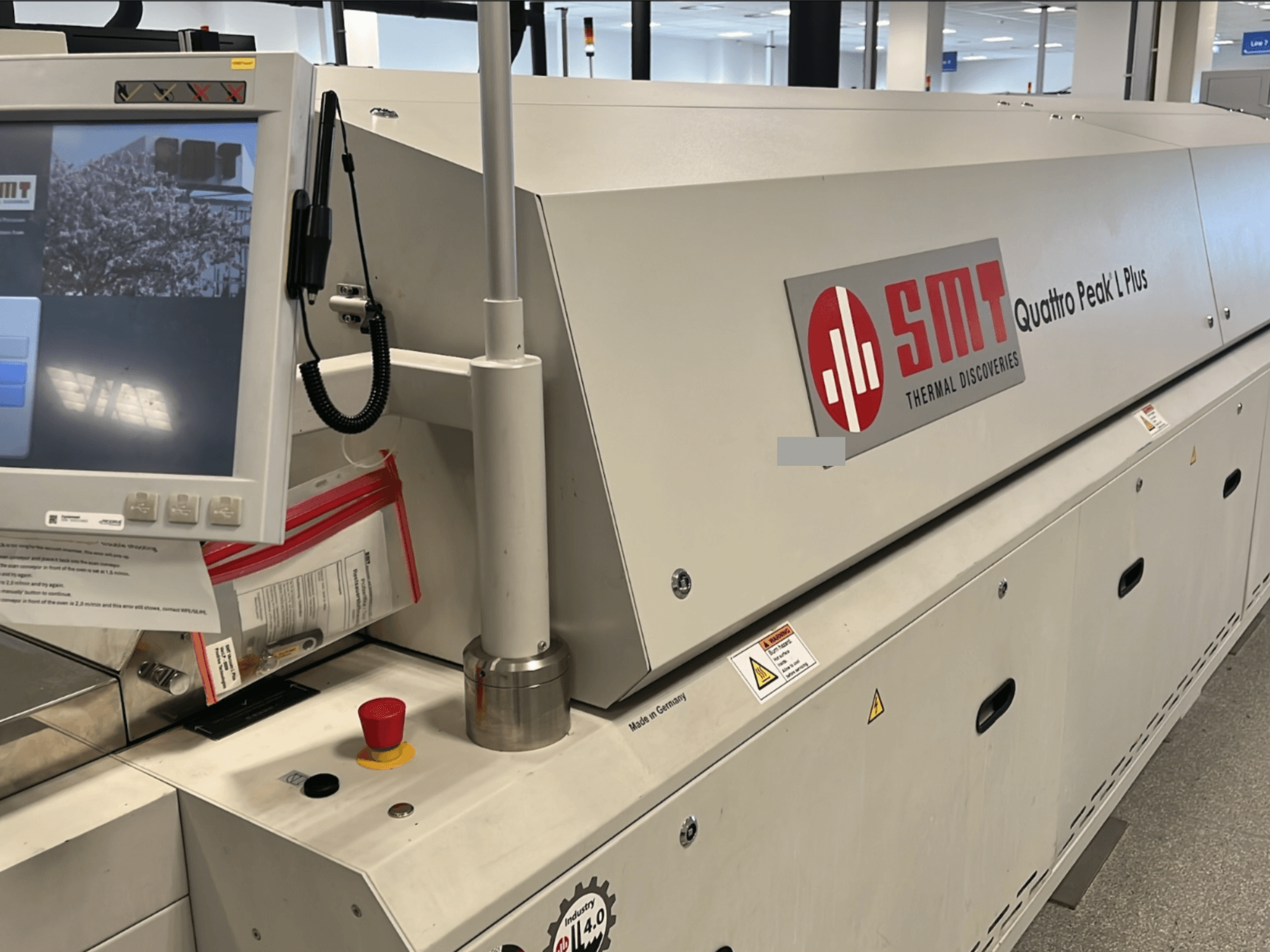

Vacuum Reflow System VAC-L Plus manufactured in 2018. It features a comprehensive heating configuration with 5 preheating zones and 4 peak zones, along with a vacuum chamber measuring 450 x 510 mm. The typical conveyor speed is 1.3 m/min, and it includes a single lane chain conveyor. If you are looking to get high-quality reflow capabilities, consider the SMT Vacuum L Plus Vac machine we have for sale. Contact us for further details.
Overview
- brand: SMT
- year: 2018
- MODEL: Vacuum L Plus Vac
- production hours: 35069
- application type: Other Sheet Metal Machinery
- Location: Netherlands
- machine type: Sheet Metal Machine
Technical Information - SMT Vacuum L Plus Vac
Dimensions
- Machine Length: 4400 mm
Movement
- Number of Axes: 4
Additional Information
Heating configuration: 5 x preheating zones, 4 x peak zones, 1 x vacuum chamber
Cooling configuration: 3 x zones standard (up to 5 optional)
Typical conveyor speed: 1.3 m/min
VAC cycle time: approx. 38 s per lane
Vacuum chamber dimensions (L x W): 450 x 510 mm (max. product)
Vacuum chamber cycle time extension: approx. 8–13 s
Process gas cleaning: 3 x high-temperature ABS
Fan speed control: Infinitely variable via frequency converter (5 pcs total)
UPS voltage: 24 V
Nitrogen residual oxygen display: DRSM011
Nitrogen measurement display: PC monitor
Conveyor type: Single-lane chain conveyor (pin chain)
Conveyor width: 65–510 mm
Conveyor rail: Fixed rail front (Rail 1)
Chain pin length: 3 mm
Center support height/drop: 10 mm / 10 mm
Network interface: Ethernet
Handling interface: SMEMA (IPC/SMEMA-STD1)
Cooling zone lengths: Zone 1 = 585 mm; Zone 2 = 473.5 mm; Zone 3 = 473.5 mm
Cooling water requirement: < 15°C and 15 l/min
Barcode interface: RS232
Monitoring sensors: PT100 (Guard software)
Additional equipment
Included: Not specified
Option compatibility (not included unless stated):
Nitrogen options: RE0004, RM0002, VA0002, RE0005
Cooling options: RE0026, RE0066, RE0067, RM0008
Process monitoring options: RE0007, AL0011
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
