➤ Used SMEC PL 800VM RH For Sale | gindumac.com

Show in original language

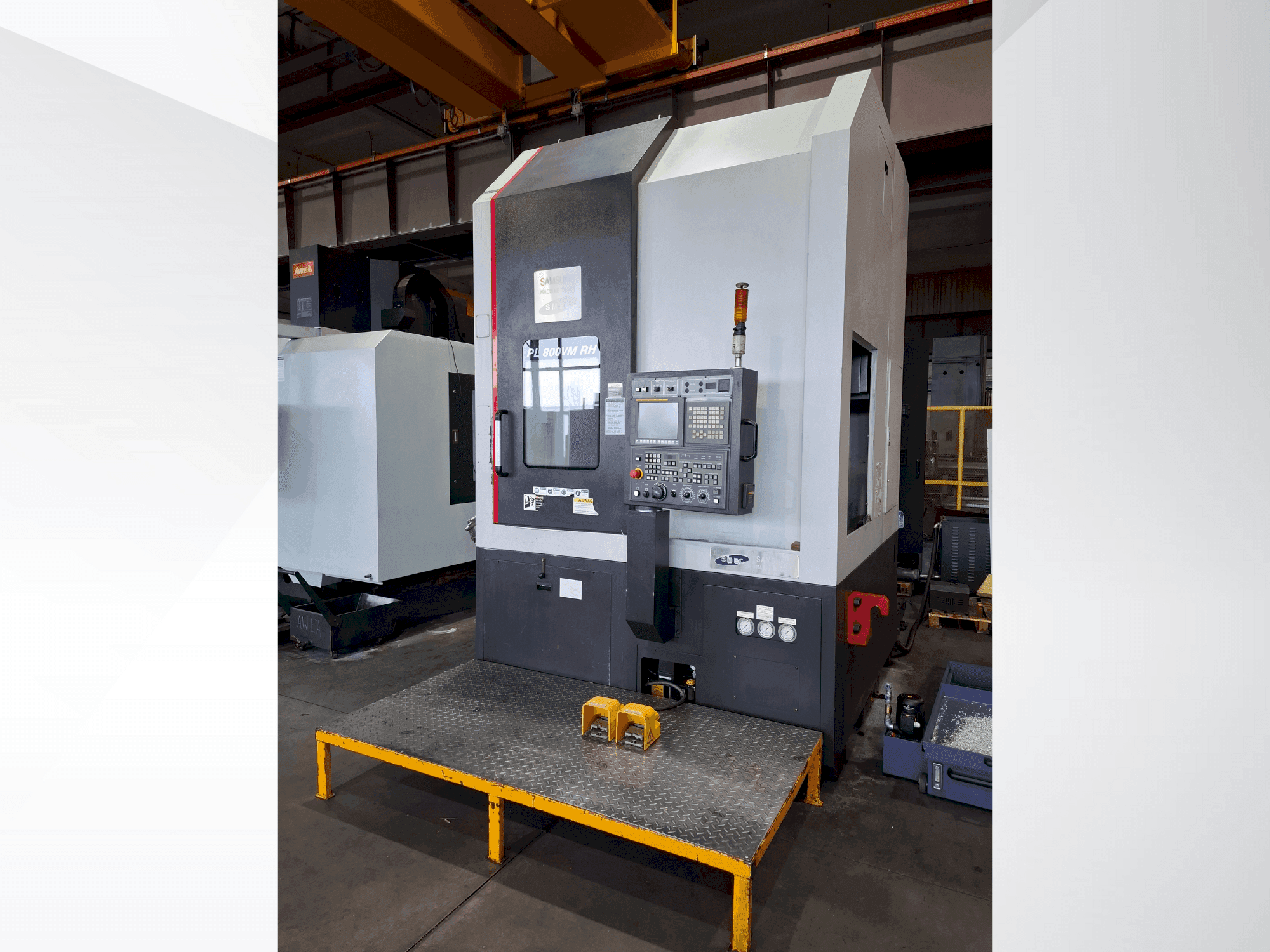

This 3-axis SMEC PL 800VM RH vertical turning machine was manufactured in 2014. It features a maximum swing of Ø890 mm, turning diameter of Ø810 mm, and a turning length of 800 mm. Equipped with a Fanuc 0i-TD control and a 10.4” TFT LCD color monitor, it offers a spindle speed of 2000 rpm and a tool turret with 12 stations. Ideal for robust and precise machining. For more information about this vertical turning machine, please reach out to us.

Overview

brand: SMEC
year: 2014
MODEL: PL 800VM RH
application type: Turning
Location: Poland
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: Fanuc

Technical Information - SMEC PL 800VM RH

General Data

Measurements width: 2822 MM
Measurements depth: 2050 MM
Measurements height: 3491 MM
Machine weight: 11000 KG

Control Unit

Brand: Fanuc
Model: 0i-TD

Main drive

Spindle speed range: 2000 1/MIN
Spindle bore: 104 mm
Tool taper: A2-11 (ASA)

Movement

X-AXIS Movement: 430 mm
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 20 m/min

Workpiece

Workpiece drm over bed: 890 mm
Workpiece drm: 810 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turret indexing speed (full): 0. 15 s
- - Tool size (turning and facing): 32 x 32 mm
- - Tool size (boring bar max. Diameter): 63 mm
- - Power consumption: 53 kva
- - Slide ways (x/z): box guide

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
