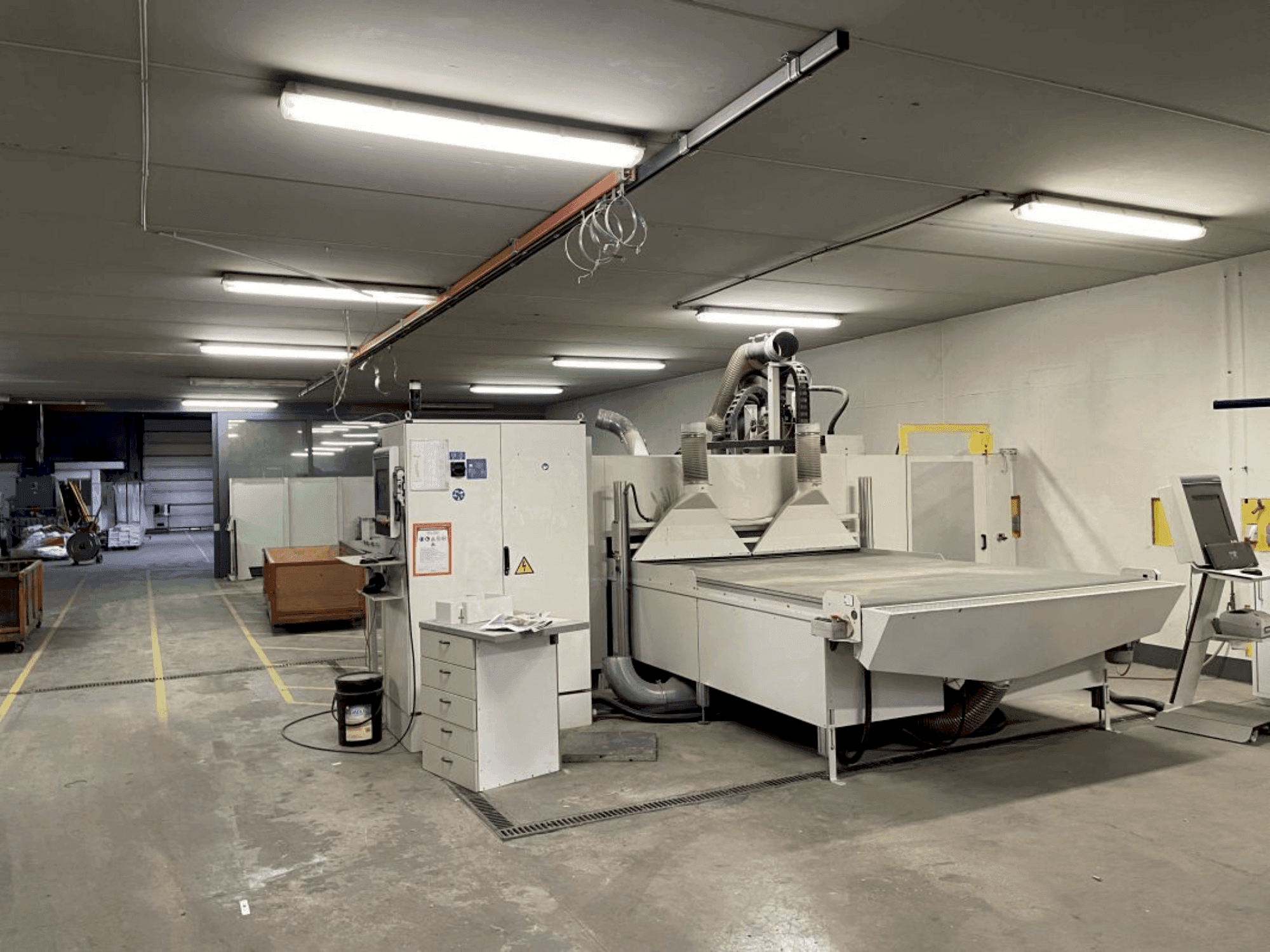

SCM - Morbidelli Author M400BE-WOO-SCM-2016-00001

Additional equipment

• - Mobile remote control "TecPad" with cable and 7" color screen
• - Central optimized dust protection
• - F18L drilling head with inverter and pressure tank
• - milling spindle 5 axes Prisma 5 KS with 12 kW with power cooling
• - automatic change R16
• - 1 tool holder cone HSK-63 with collet ER-32 automatic central lubrication
• - Conveyor belt for unloading workpieces 4250 x 2100 mm
• - Extraction set in the unloading zone
• - Manual labeling station
• - Air blower for tools

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Processing area = 4970x2120 mm
  • - For discharge* folding stops for zones "a" and "d" controlled by nc
  • - Vacuum pump 250 mp 50 hz / vacuum circuit with high capacity of 750 m/h at 50 hz
  • - Preparation for 2 additional vacuum pumps
  • - Xilog maestrotelesolve programming software
  • - Loading platform for panels of 4250 x 2120 mm
  • - Automatic loading, unloading and cleaning system for panels y=2120 mm
  • - Basic prisma ks milling motor with 12 kw (s6) - "speed"
  • - F18l drilling unit
  • - Special conditions:* customer voltage: 3 x 380
• Qualitative Machine Benefits:
  • - Multifunctional work table made of aluminum automatic lifting table, loading system with vent pipes, pusher and carpet
  • - Teleservice via the internet
  • - Rapid 16 magazine mobile at the rear of the gantry
  • - Work table divided into 8 vacuum zones
  • - Closed drag chain at the rear of the machine

Extra information

• - Excluding cutting tools and accessories for dust extraction, unless expressly stated in the order confirmation.

Payment Terms

• Payment in advance

•
