Schneeberger NGC

Photo Gallery

Schneeberger - NGCIT-GRI-SCH-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

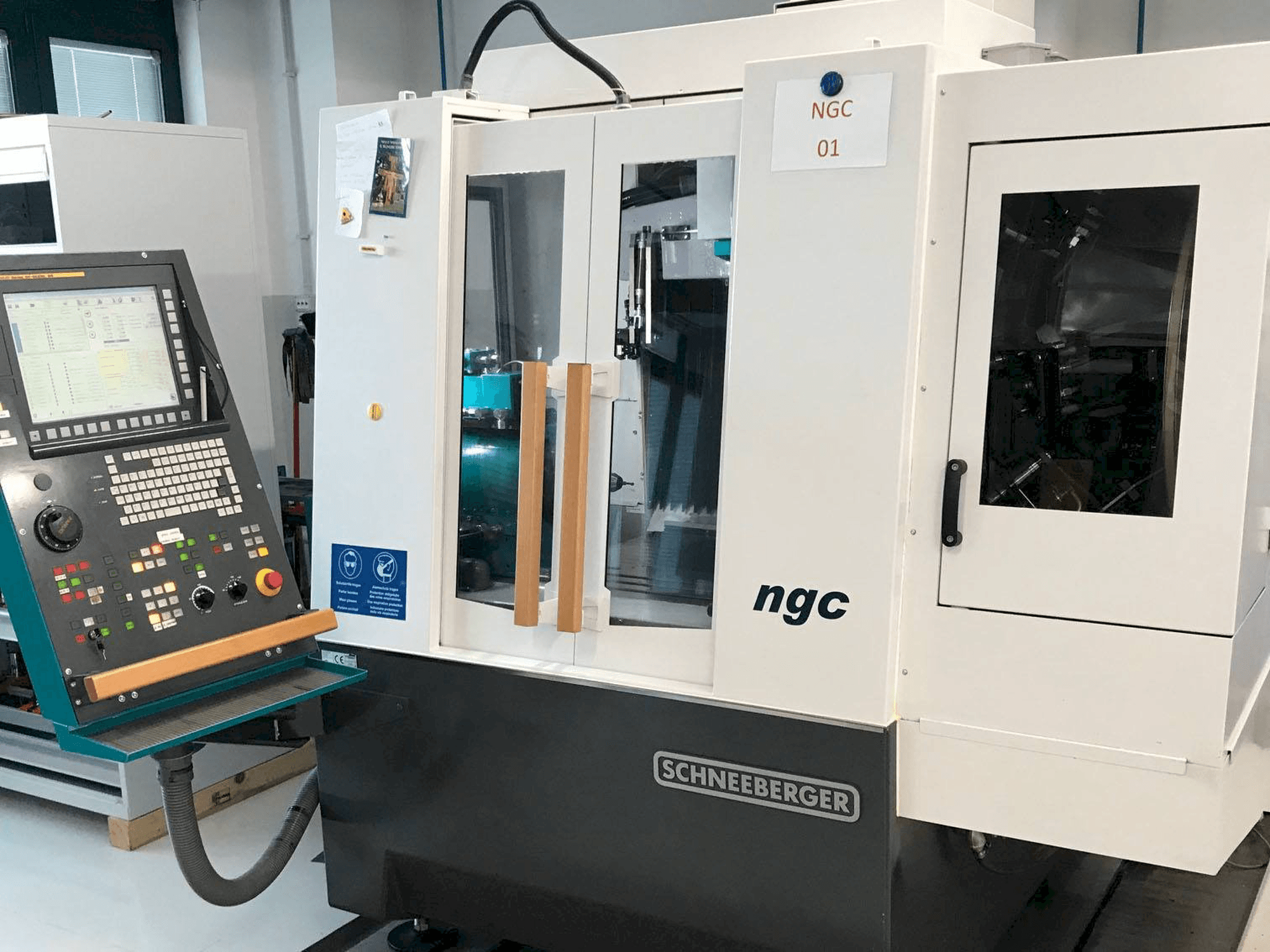

Schneeberger NGC Grinding Machine

Show in original language

This Schneeberger NGC Grinding Machine was made in Switzerland in 2015. This machine counts with an average of 5672 production hours on a central shift, having worked for only 43 months, 6 hours a day. This machine stands out for its wheel loader of 7 positions. It can work with a cutting length of 300 mm.

Overview

brand: Schneeberger
year: 2015
MODEL: NGC
production hours: 5672
application type: Grinding
Location: Italy
machine type: Cylindrical Grinding Machine
control unit brand: FANUC

Technical Information - Schneeberger NGC

Control Unit

Control Brand: FANUC
Control Model: Series 31i - Model B5

Dimensions

Machine Depth: 2150 mm
Machine Height: 2080 mm
Machine Weight: 5000 kg

Movement

A-axis Max: 50°
C-axis: 345°
X-axis Travel: 470 mm
Y-axis Travel: 390 mm
Z-axis Travel: 325 mm

Additional Information

Additional equipment

Dust Extractor

Machine Benefits

Qualitative Machine Benefits

Machine in perfect conditions

Technical Machine Benefits

Wheel loader with 7 positions
Machine tool holding system: schaublin up
2 software systems installed: both quinto 5. 46 plus quinto g1 (new software schneeberger) + external key license to work on external pc
Automatic central lubrication
Hydraulic tool clamping
Tailstock cfg 4151
Integrated tool loader
Pallet size 300mm x 300 mm
Grinding head 12000 rpm
Cutting length 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
