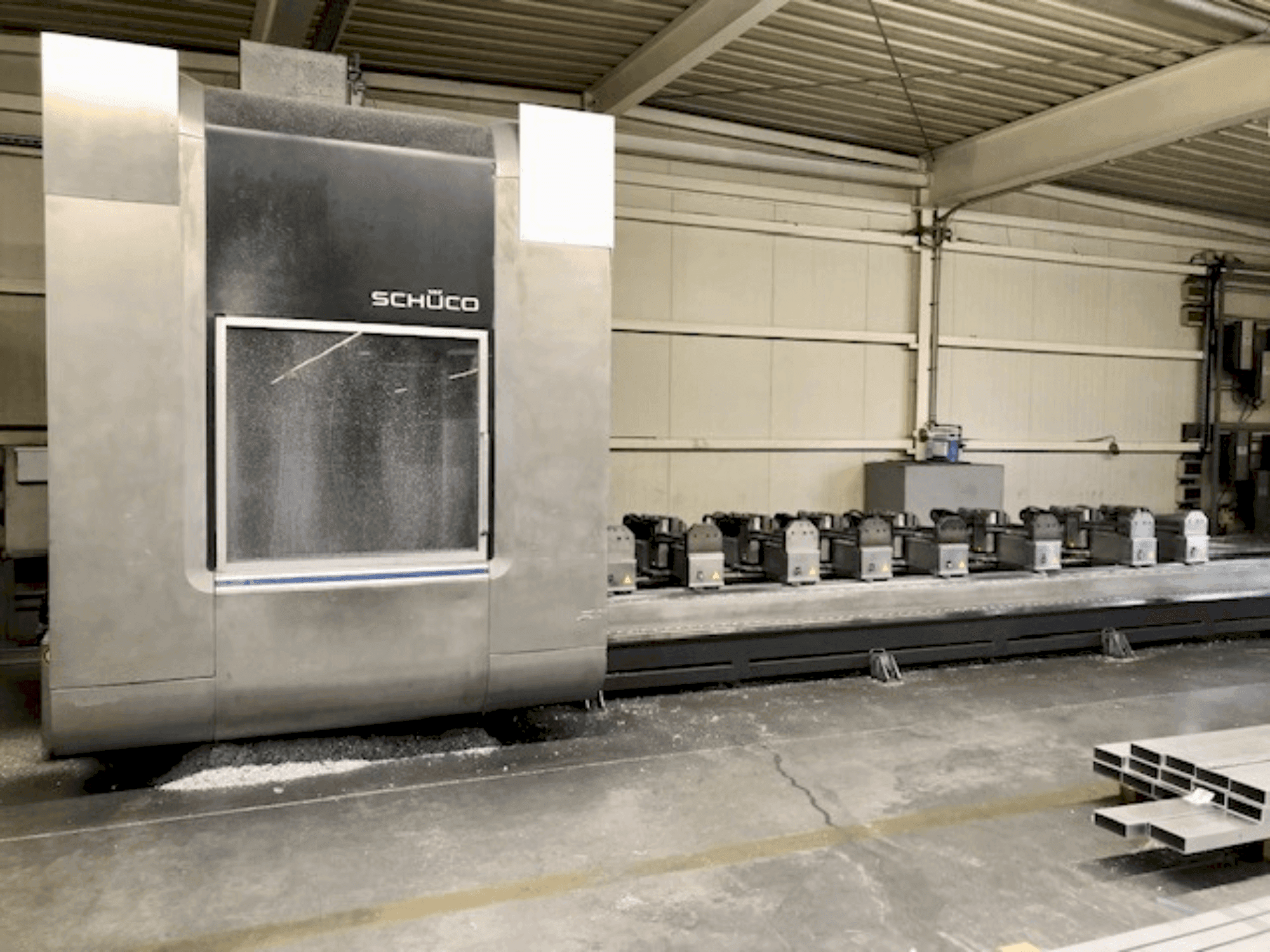

SCHÜCO - MFM DC 500DE-MIL-SCH-2009-00001

Additional equipment

• - Automatic central lubrication: SPC driven
• - Air conditioning unit
• - Control panel: 19” touch TFT colour display
• - Software: SchüCam
• - 500 mm saw blade in a 5-axis spindle"
• - also suitable for PVC profiles

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Number of controlled nc axes: 14
  • - Processing length: 7500 mm
  • - Rotation of a axis: continuously from +110° to -110°
  • - Rotation of c axis: continuously from +220° to -220°
  • - Number of spaces in moving tool magazine: 16
  • - Number of special positions for tools: 2
  • - Automatic clamping
  • - Number of clamps: 8 - 12
  • - High-speed processing with a maximum speed of 24,000 rpm
  • - Capable of processing steel up to a wall thickness of 5 mm
• Qualitative Machine Benefits:
  • - Profile supports with quick release system
  • - Max. Cross section (w x h) / length – single bar processing: 400 x 300 / 7500 mm (for 200 mm tool length)
  • - Min. Cross section (w x h) / length – single bar processing: 30 x 30 / 300 mm (for 200 mm tool length)
  • - Max. Number of profiles per machine: up to 8 bars (depending on individual bar lengths)
  • - Number of fixed profile stops: 1
  • - Changing the clamps in 2 operations: automatic
  • - Finish: ral 9006 (white aluminium), ral 7016 (anthracite grey)
  • - A saw is integrated and each part can also be cut to size after processing.

Extra information

• - Machine still under power
