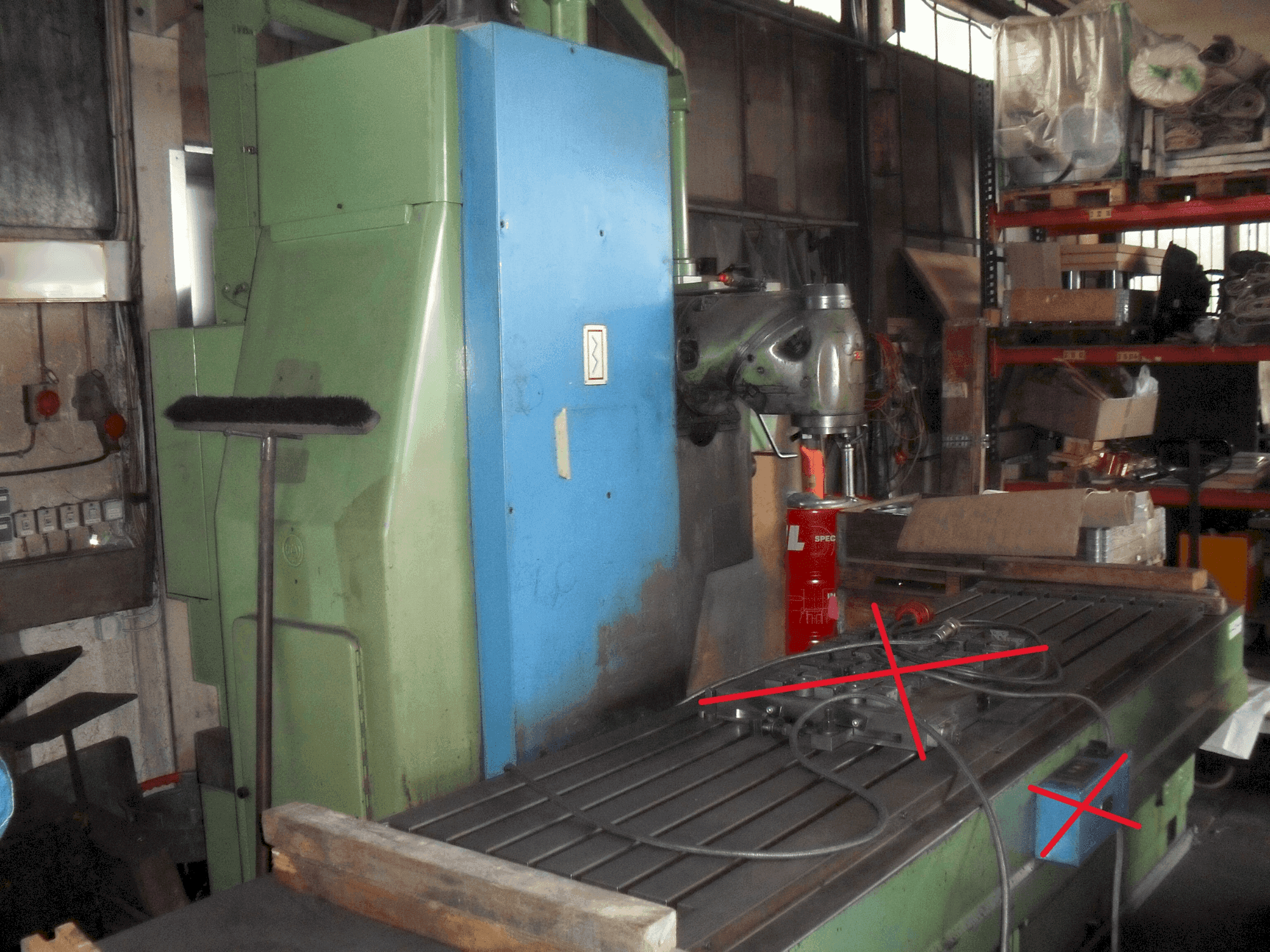

Front view of SACHMAN RP 3  machine

SACHMAN RP 3

SACHMAN - RP 3

1984

Rs. 726,000

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis milling machine was manufactured in 1984. The Sachman RP-3 offers robust travel paths, including an x-axis ranging from 1800 to 2500 mm and a y-axis of 815 mm, ensuring versatility in handling various workpiece sizes. It features a maximum feed speed of 5000 mm/min and a rapid traverse rate of 8000 mm/min, promoting efficient processing times. Additionally, the milling slide capabilities allow for variable speeds up to 2250 rpm, making the Sachman RP-3 machine we have for sale essential for precise milling operations. Contact us for additional details or inquiries.

Overview

  • brand: SACHMAN
  • year: 1984
  • MODEL: RP 3
  • application type: Milling
  • Location: Germany
  • machine type: Milling Machine
  • availability: Immediately
  • GINDUMAC ID: DE-MIL-SAC-1984-00001

Technical Information

General Data

  • Machine weight: 10000 KG

Main drive

  • Number of axis: 3

Movement

  • X-AXIS Movement: 1800/2500 mm
  • Y-AXIS Movement: 815 mm
  • Z-AXIS Movement: 802/1012 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Motor torque x-axis: 19. 7 nm
      • - Motor torque y and z-axis: 14. 2 nm
      • - Max. Feed speed: 5000 mm/min
      • - Rapid traverse: 8000 mm/min
      • - Axial pressure x-axis: 1200 kg
      • - Axial pressure y and z-axis: 1000 kg
      • - Clamping table: usable area 2000/2700x730mm, max. Permissible load 3000kg
      • - Milling slide: speed at constant torque 10-85 rpm, speed at constant power 85-2250 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
