RIS-INGOLD Rismatic 151G-12
RIS-INGOLD - Rismatic 151G-12
1982
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- RIS-INGOLD Rismatic 151G-12 Revolving Index Machine

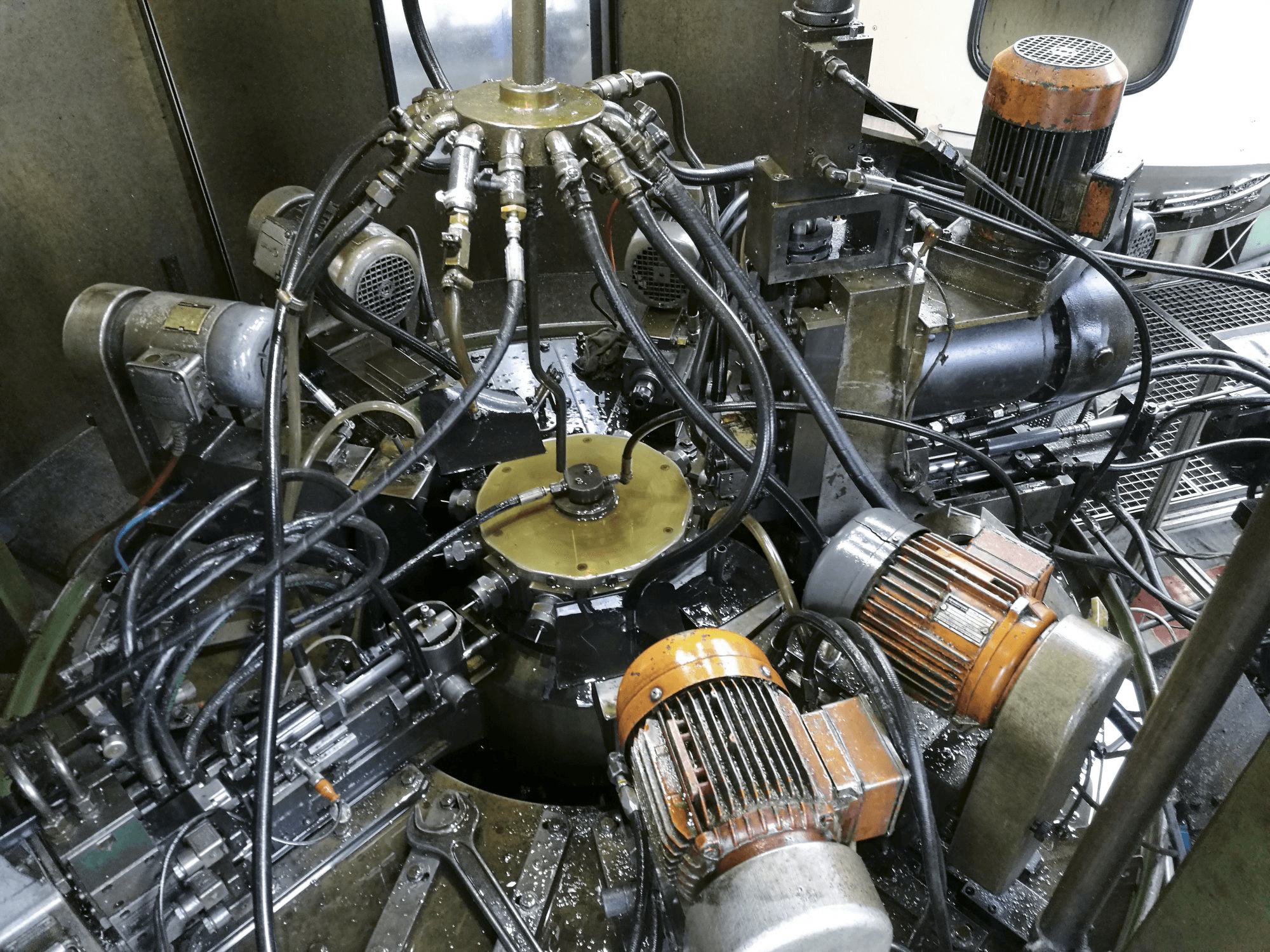

This RIS-INGOLD Rismatic 151G-12 Revolving Index Machine was built in 1982 in Germany and has been active for approximately 56000 production hours. The machine comes with 12 processing station tools as additional equipment. In the past the machine was utilized for parts production for the automotive industry, and the main material handled was stainless steel of up to 4 mm.
Overview
- brand: RIS-INGOLD
- year: 1982
- MODEL: Rismatic 151G-12
- production hours: 56000
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: Sold
- GINDUMAC ID: DE-MIL-RIS-1982-00001
Technical Information
General Data
- Measurements width: 7830 mm
- Measurements depth: 2000 mm
- Measurements height: 2530 mm
- Machine weight: 2800 kg
Turret
- Number of turrets: 12
Tools
- Max tool diameter: 1,5 - 15 mm
- Max tool length: 50 mm
Media
- Main electronic connection: 380 V
- Power consumption: 30 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
