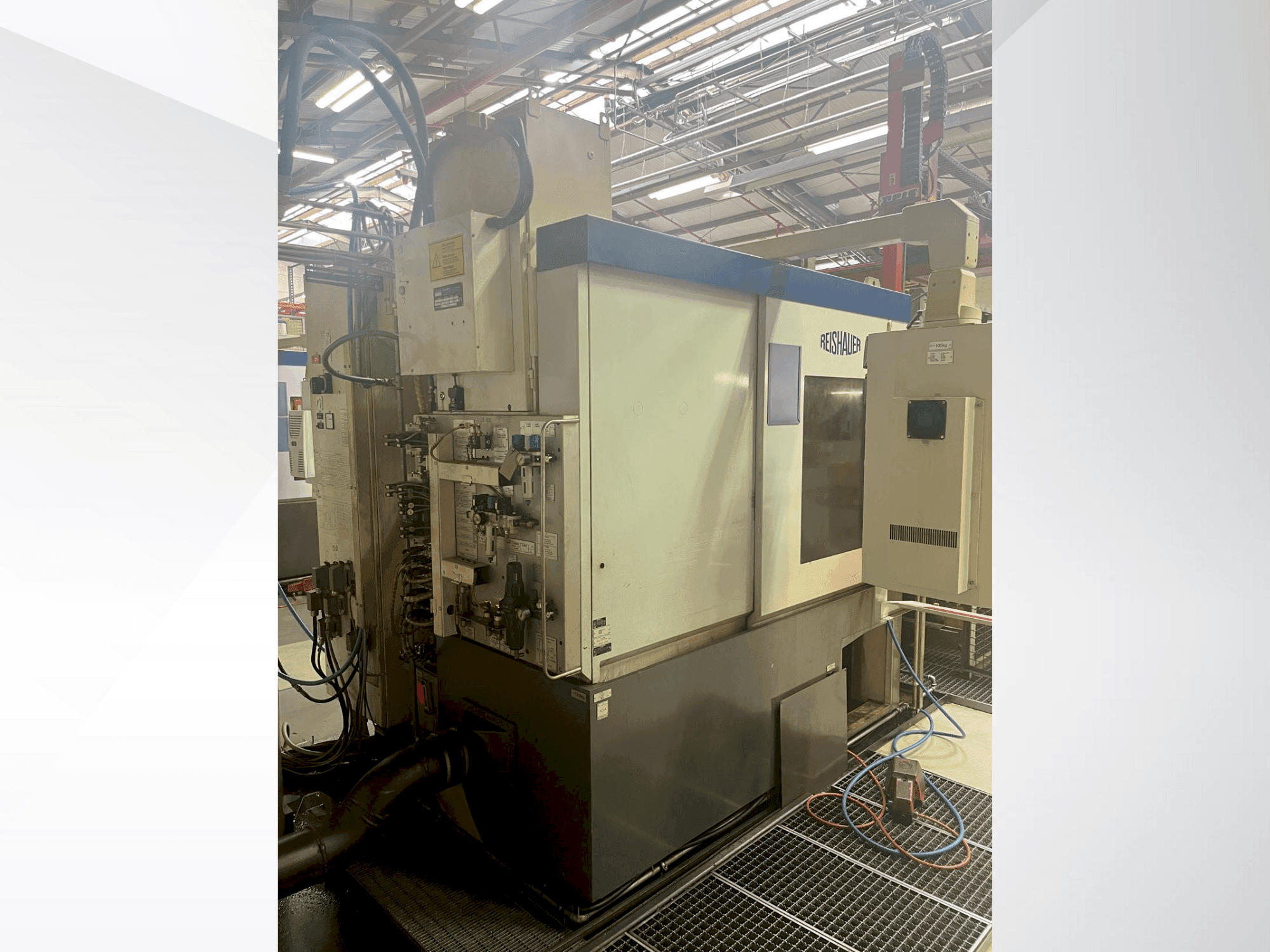

Front view of Reishauer RZ 150  machine

Reishauer - RZ 150DE-GRI-REI-2007-00001

Rs. 14,605,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Reishauer RZ 150 grinding machine was manufactured in 2007. It features a maximum wheel diameter of 150 mm, wheel width of 100 mm, and can handle workpieces up to 2 kg. The machine offers a grinding stroke of 100 mm and a clamping length up to 350 mm. It supports spindle speeds from 0 to 5200 1/min and includes Rice robot handling. For more information about this grinding machine, please reach out to us.

Overview

  • brand: Reishauer
  • year: 2007
  • MODEL: RZ 150
  • application type: Grinding
  • Location: Germany
  • machine type: Grinding Machine
  • availability: Immediately
  • control unit brand: Siemens

Technical Information - Reishauer RZ 150

General Data

  • Measurements width: 3500 MM
  • Measurements depth: 4800 MM
  • Measurements height: 3200 MM
  • Machine weight: 8500 KG

Control Unit

  • Brand: Siemens
  • Model: 840 D

Main drive

  • Spindle speed range: 0 - 5200 1/MIN

Workpiece

  • Workpiece weight: 2 kg

    Additional equipment

    • - Shift axis (Y) / Pivot axis (A) / Feed axis (X) / Feed axis (Z)
    • - Controlled dressing device (C4)
    • - Grinding oil nozzle (P-axis)
    • - RP 120 grinding worm profiling device
    • - Hydraulic equipment: Tank capacity approx. 40 litres
    • - Automatic CO2 extinguishing system FB 704
    • - Tailstock nc-controlled
    • - Pressure booster system
    • - Control cabinet with Siemens S7-300 controller, pump capacity 160l/min at 20 bar,

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Wheel diameter: 150 mm
        • - Max wheel width: 100 mm
        • - Module: 1 - 3
        • - Number of teeth: 5 - 150
        • - Max helix angle: +- 40 degrees
        • - Top circle diameter: 10 - 145 mm
        • - Base circle diameter: 10 - 145 mm
        • - Grinding stroke: 100 mm
        • - Clamping length: 350 mm
        • - Workpiece turret (c3) / workpiece spindle (c1 and c2)
      • Qualitative Machine Benefits:
        • - Rice robot handling

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
