REIGNMAC - 520 MOULDING MASTERSI-PLA-REI-2016-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used REIGNMAC 520 MOULDING MASTER | For Sale

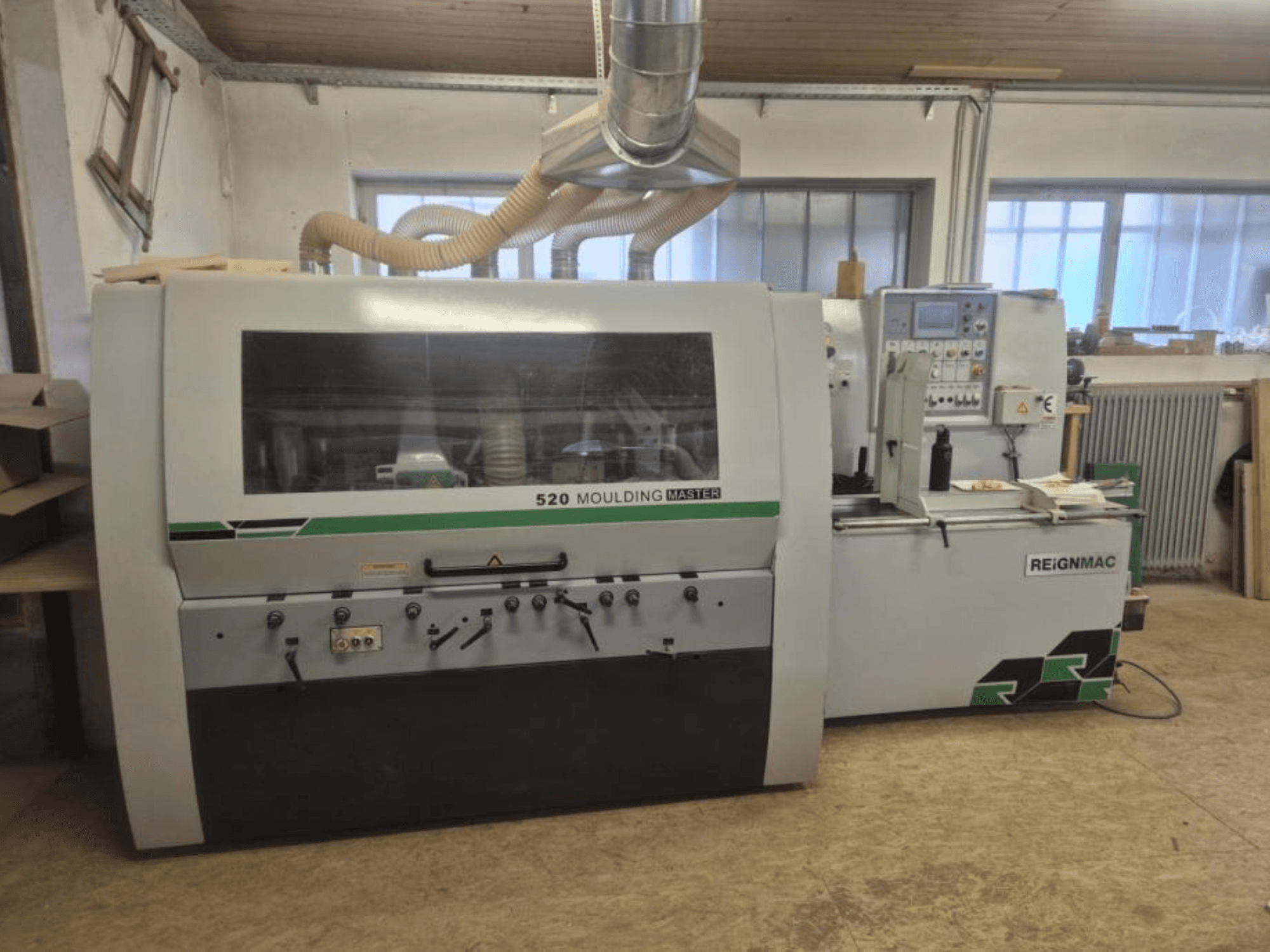

This 6-axis REIGNMAC 520 Moulding Master was manufactured in 2016. It features a working width of 20–200 mm and a working thickness of 8–120 mm, with a feed speed of 6–24 m/min. The machine is equipped with six spindles, with a spindle speed of 6000 rpm and a maximum tool diameter of Ø145 mm. If you are looking to get high-quality woodworking capabilities, consider the REIGNMAC 520 Moulding Master machine we have for sale. Contact us for further details.
Overview
- brand: REIGNMAC
- year: 2016
- MODEL: 520 MOULDING MASTER
- application type: Planing
- Location: Slovenia
- machine type: Wood Planer
- control unit brand: SIEMENS
Technical Information - REIGNMAC 520 MOULDING MASTER
Control Unit
- Control Brand: SIEMENS
- Control Model: Smart Line
Dimensions
- Machine Height: 1730 mm
- Machine Length: 3850 mm
- Machine Weight: 3750 kg
- Machine Width: 1635 mm
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 6000 RPM
- Working Width: 200 mm
Additional Information
Working width: 20–200 mm
Working thickness: 8–120 mm
Feed speed: 6–24 m/min
Working table length: 1700 mm
Pressure beam vertical adjustment: 10 mm
Infeed table adjustment: 10 mm
Spindle configuration:
Number of spindles: 6
Spindle diameter: 40 mm
Maximum tool diameter:
First bottom spindle: 108–145 mm
Right/left spindles: 108 mm
Top spindle: 140 mm
Bottom finishing spindle: 96 mm
Motor power:
Feed motor: 5.5 kW (7.5 HP)
Right spindle motor: 5.5 kW (7.5 HP)
Left spindle motor: 5.5 kW (7.5 HP)
Top spindle motor: 7.5 kW (10 HP)
Bottom spindle motor: 5.5 kW (7.5 HP)
Feed beam lifting motor: 1.1 kW
Total installed power: 28.6 kW
Additional equipment
Safety cabin included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
