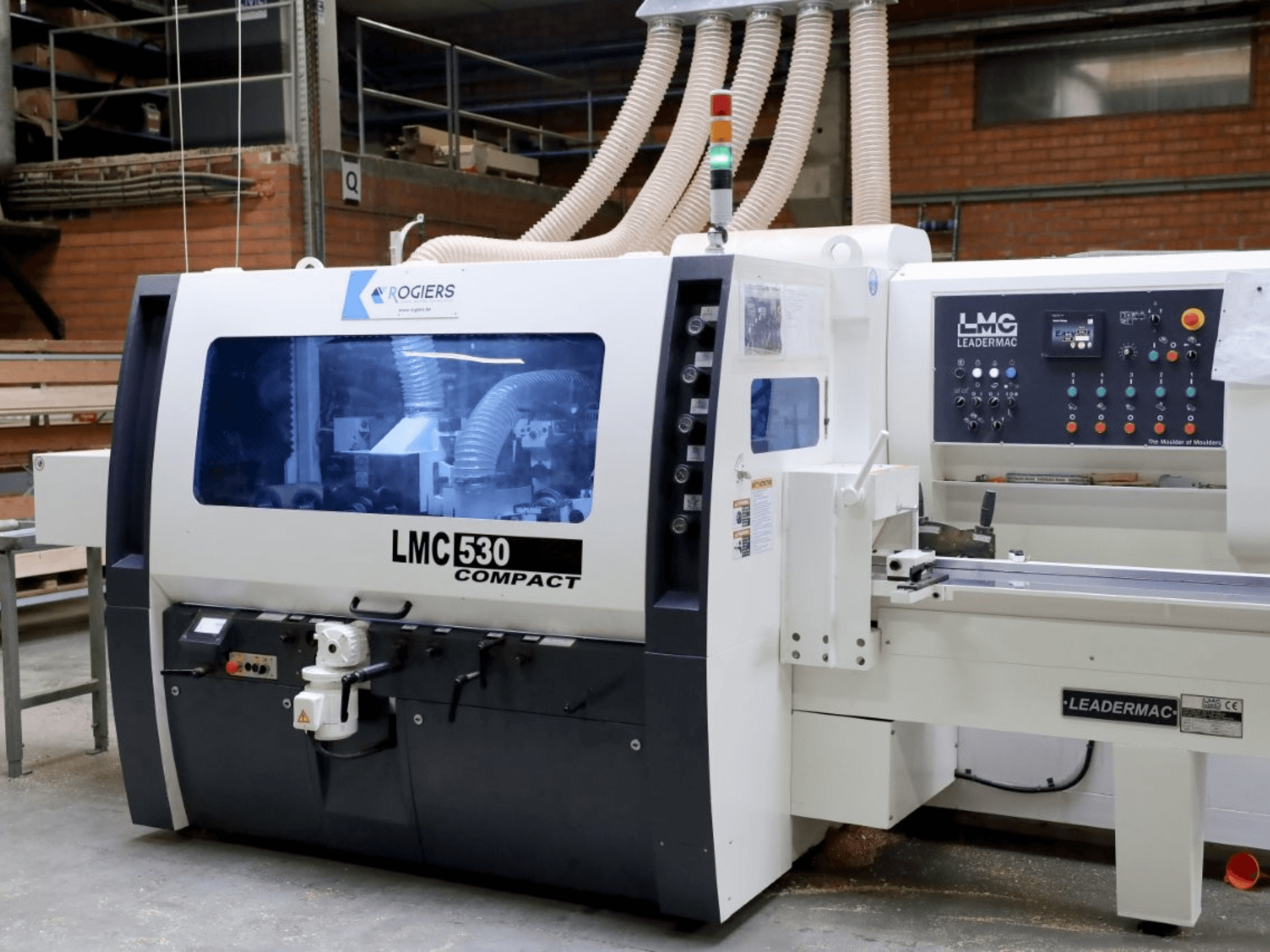

This 5s LEADERMAC Compact LMC-530C was manufactured in 2022. It features a working width of 15 – 300 mm and a working thickness of 10 – 150 mm, making it suitable for various woodworking applications. With multiple spindles and a Schneider 5.7” EASYSET touchscreen control, this machine offers advanced capabilities. Consider the opportunity to buy this LEADERMAC Compact LMC-530C wood planer. Contact us for further details.
Overview
- brand: LEADERMAC
- year: 2022
- MODEL: Compact LMC-530C
- application type: Planing
- Location: Belgium
- machine type: Wood Planer
Additional Information
Ref.: e/haaaa/dc
Working width: 15–300 mm
Working thickness: 10–150 mm
Minimum workpiece length: 800 mm
Minimum consecutive length: 300 mm
Infeed table: 2500 mm
Pneumatic left side pressure roller
Two-piece pressure shoe
Schneider 5.7" EASYSET touchscreen control
NC control axis 3 (left radial)
NC control axis 4 (top radial)
NC control for pressure beam height adjustment
Feed motor: 7.5 HP, feed speed 6–24 m/min
1st spindle: 15 HP, Ø50 mm, 6,000 rpm
2nd spindle: 10 HP, Ø50 mm, 6,000 rpm
3rd spindle: 10 HP, Ø50 mm, 6,000 rpm
4th spindle: 20 HP, Ø50 mm, 6,000 rpm
5th spindle: 20 HP, Ø50 mm, 6,000 rpm
Additional equipment
Additional table for multi-rip saw
Anti-kickback device for multi-rip saw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
