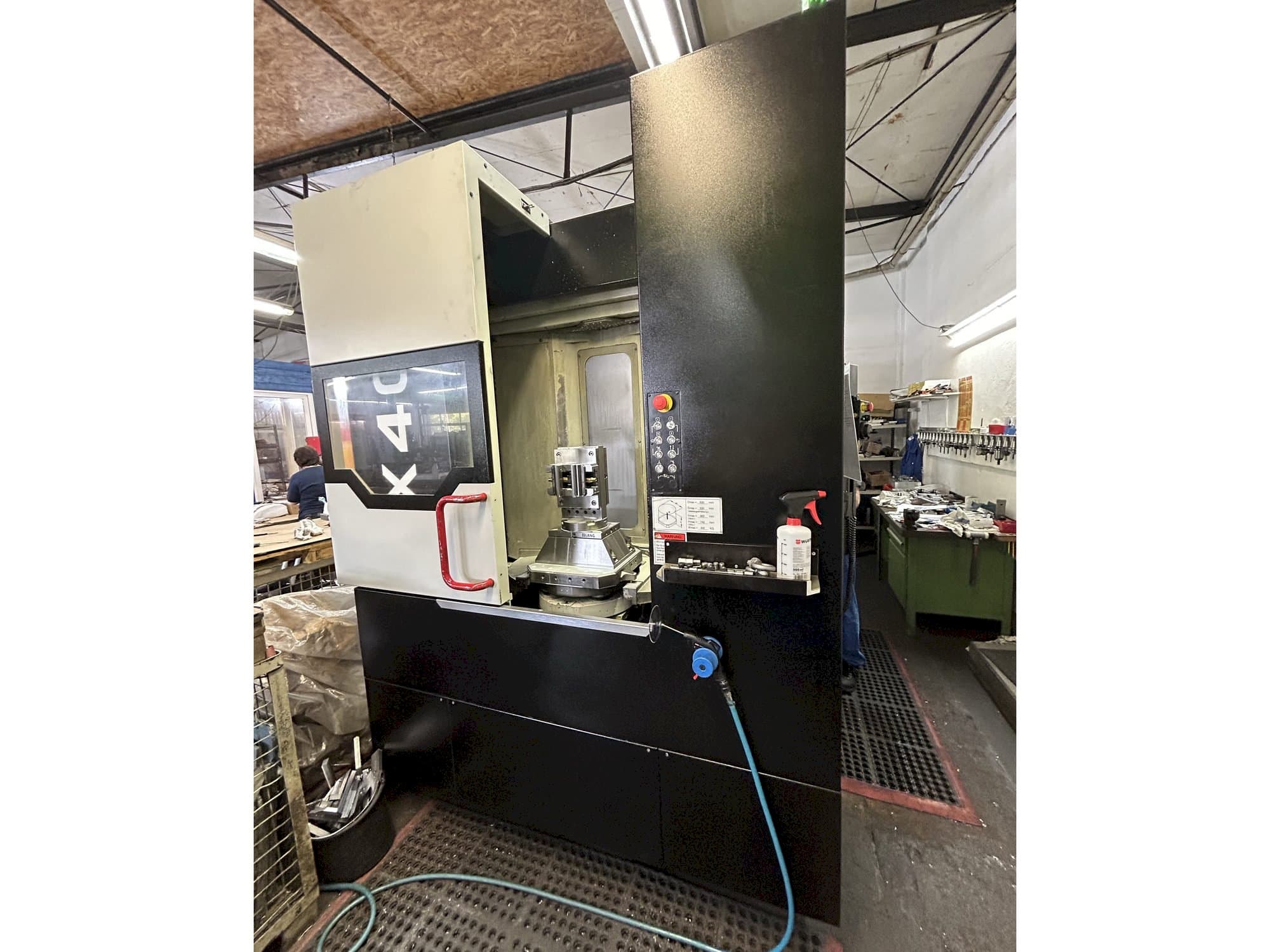

Front view of Quaser HX404  machine

Quaser - HX404DE-MIL-QUA-2016-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Quaser HX404 Horizontal Machining center was manufactured in the year 2016 in Taiwan. It is equipped with a Fanuc 31 LB control unit. The machine has a spindle speed of 15000 rpm.

Overview

  • brand: Quaser
  • year: 2016
  • MODEL: HX404
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Sold
  • control unit brand: FANUC

Technical Information - Quaser HX404

General Data

  • Measurements width: 2365 mm
  • Measurements depth: 4915 mm
  • Measurements height: 2895 mm
  • Machine weight: 10500 kg

Control Unit

  • Model: 31 LB
  • Brand: FANUC

Main drive

  • Spindle speed range: 15000 1/MIN
  • Spindle motor power: 26 kW

Movement

  • X-AXIS Movement: 560 mm
  • Y-AXIS Movement: 640 mm
  • Z-AXIS Movement: 640 mm
  • B-AXIS Movement: 360º MM

Tools

  • Type of tool holder: BT 40

    Additional equipment

    • - pallet is included
    • - No zero point clamping systems included
    • - 1x hydraulic power unit (motor)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Number of tool magazine positions 60
        • - Tool changing time [sec] 1. 4 max. Tool diameter [mm] 76 max. Tool diameter with free adjacent space [mm 125 tool length max. [mm] 350 tool weight max. [kg] 7
        • - Coolant system
        • - Volume of coolant tank [l] 650 internal coolant supply pressure [bar] 20 internal coolant supply [l/min] 25 jet cooling pressure [bar] 3 jet cooling [l/min] 60 chip flushing pressure [bar] 1. 5 chip flushing [l/min] 25 coolant spray gun yes
        • - Heat compensation
        • - Temperature-controlled oil cooling system for main spindle yes cooled ball screws
        • - Lectrical connected load: 41 kva
        • - Required pneumatic connection [bar] 6 hydraulic unit yes hydraulic oil tank [l] 200
        • - Pallet size: 400 x 400 mm
      • Qualitative Machine Benefits:
        • - Maximum swing diameter: 630 mm
        • - Pallet change time: 5,5 s
        • - Maximum loading weight: 400 kg
        • - Maximum height on pallet: 900 mm
        • - Main spindle torque max. [nm]: 177
        • - Tool holding system: bt40fc

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
