➤ Used QGrind QGRIND U1000 For Sale | gindumac.com

Show in original language

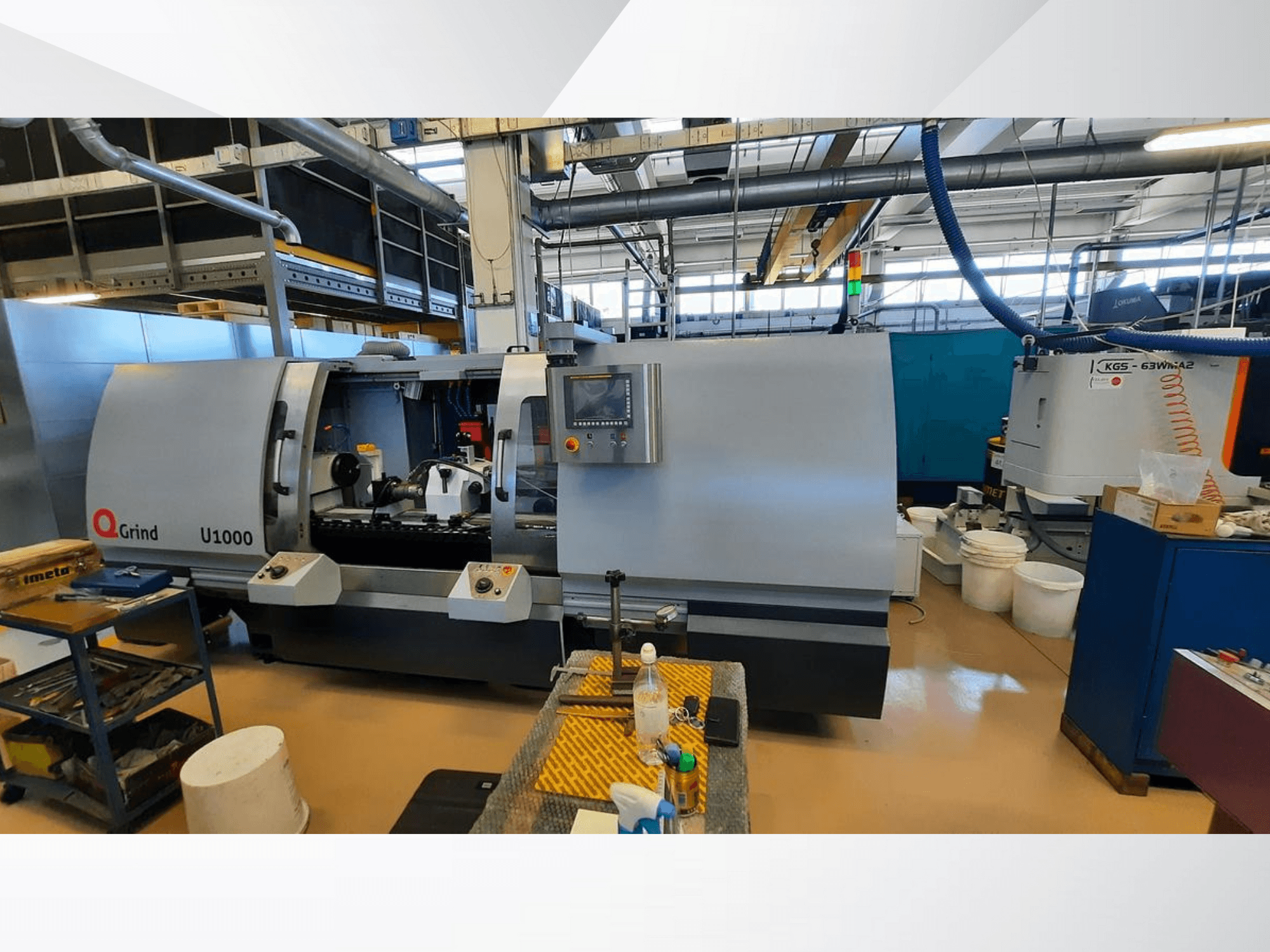

This 3-axis QGrind QGRIND U1000 cylindrical grinding machine was manufactured in 2012. It features a max workpiece diameter of 450 mm, a distance between centers of 1000 mm, and a grinding length of 800 mm. Equipped with a Fanuc 0i-TF control unit and a 15" touchscreen, it offers precise control and ease of use. Consider the opportunity to buy this QGrind QGRIND U1000 cylindrical grinding machine. Contact us for more information.

Overview

brand: QGrind
year: 2012
MODEL: QGRIND U1000
application type: Grinding
Location: Italy
machine type: Cylindrical Grinding Machine

Technical Information - QGrind QGRIND U1000

Dimensions

Machine Depth: 2200 mm
Machine Height: 1900 mm
Machine Length: 4400 mm
Machine Weight: 6500 kg

Movement

X-axis Travel: 260 mm
Z-axis Travel: 1115 mm

Additional Information

Max X-axis speed: 6 m/min
Max Z-axis speed: 10 m/min
Min incremental movement X/Z: 0.001 mm
Encoder resolution X/Z: 0.0001 mm
X-axis linear scale: Heidenhain
Z-axis guide type: V + scraped flat
X-axis guide type: Linear
B-axis servo controlled: Yes
Max workpiece diameter: 450 mm
Distance between centers: 1000 mm
Max grinding length between centers: 800 mm
Max workpiece weight between centers: 150 kg
Workpiece spindle taper: MT5
Table tilt: 2° clockwise / 7.5° counterclockwise
Wheel peripheral speed: 35–45 m/s
Left wheel dimensions: Ø455 × 50 × Ø127 mm
Right wheel dimensions: Ø355 × 38 × Ø127 mm
Tailstock taper: MT5
Tailstock quill travel: 50 mm
Tailstock actuation: Hydraulic
Grinding wheel motor power: 4.5 kW
Workhead speed: 5–400 RPM
Wheel orientation range: 35–190°
Max spindle speed for internal grinding: 30000 RPM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
