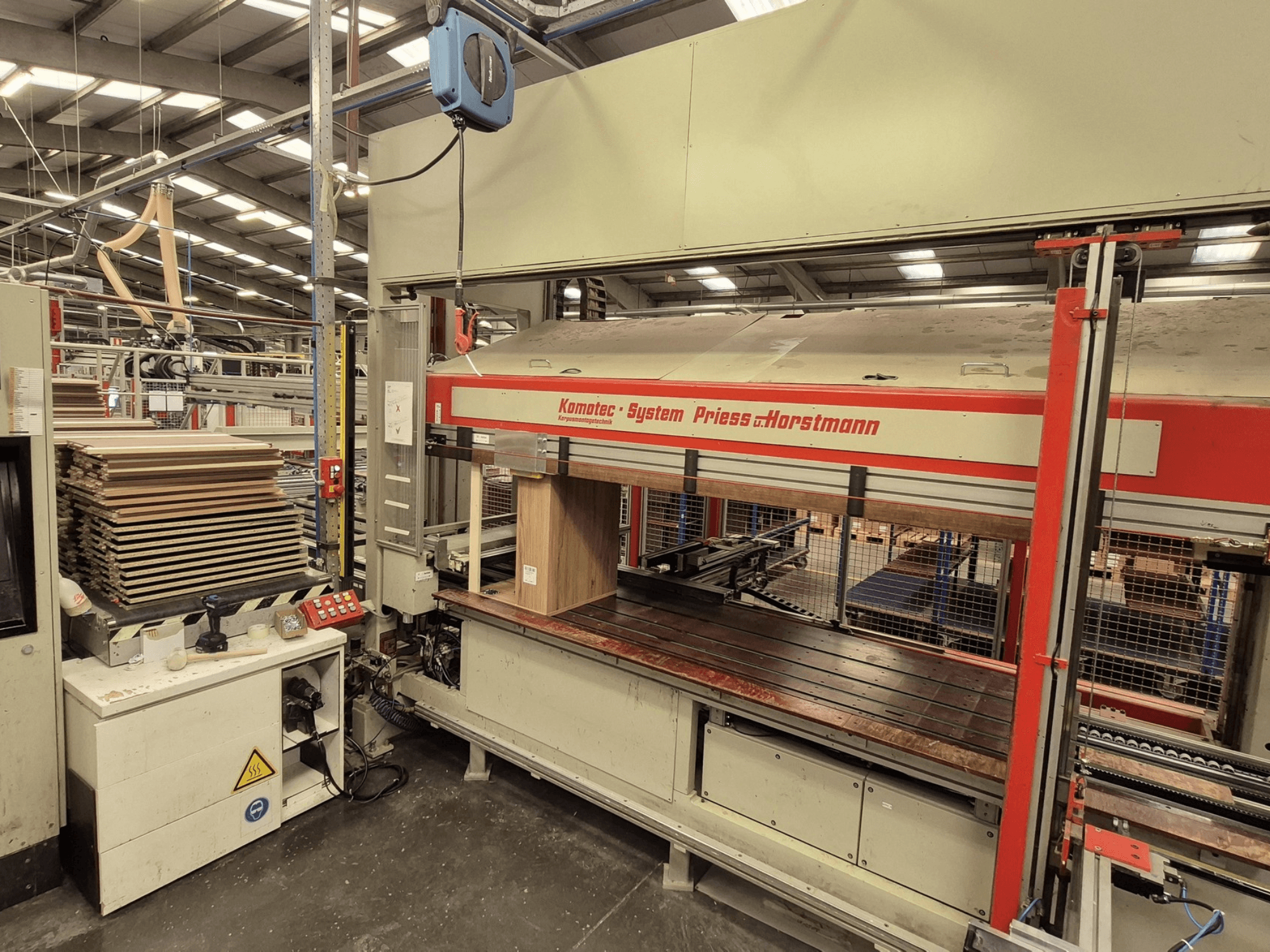

Priess & Horstmann - KP-5-CNCBE-PRE-PRE-2003-00001

• Workpiece dimensions

  • Cabinet height: 300–2500 mm

  • Cabinet width: 300–1300 mm (smaller widths possible manually with fillers)

  • Cabinet depth: 160–700 mm

  • Max side thickness: 56 mm (including fittings)

• Operational requirements

  • Power supply: 400 V ±10%, 50 Hz, 3-phase, approx. 10 kW

  • Compressed air: 6–7 bar, oil-free and dry

  • Space/ergonomics: Minimum room height 3700 mm; working height 930 mm

• Visual configuration (RAL colors)

  • Machine and control cabinet: RAL 7032 Kieselgrau

  • Supports and safety guards: RAL 3000 Feuerrot

  • Motors and extraction hoods: RAL 9005 Mattschwarz

Additional equipment

• Buffer system

  • Roller conveyors (Roba)

    • Roba_11: ~2800 mm length, 700 mm usable width; split round-belt drive; two 0.55 kW motors; 60 m/min; 1 fixed end stop + 1 controllable center stop

    • Roba_12: ~2800 mm length, 700 mm usable width; 0.55 kW motor; 60 m/min; primary operator controls (Start/Stop, Emergency Stop)

    • Rollers: Ø60 mm, plastic-coated; pitch 128 mm

    • Working height: 930 mm (±20 mm)

  • Cross conveyors (QF)

    • QF_11 and QF_12: 8 toothed belts; 0.55 kW motors with frequency inverters

    • Speed: 40 m/min at 50 Hz

    • Operation: Pneumatically tiltable (hoch schwenkbar)

    • Total transverse width: ~1720 mm

• ZWA-1-CNC unit

  • Workpiece dimensions: cabinet height 300–2500 mm; width 300–1200 mm; depth 160–700 mm

  • Operational: Electrical and compressed air supplied via downstream carcass press

  • Working height: 930 mm

  • Space: Minimum room height 3700 mm

  • Construction: Solid, torsion-resistant frame with precision guides for lifting table
