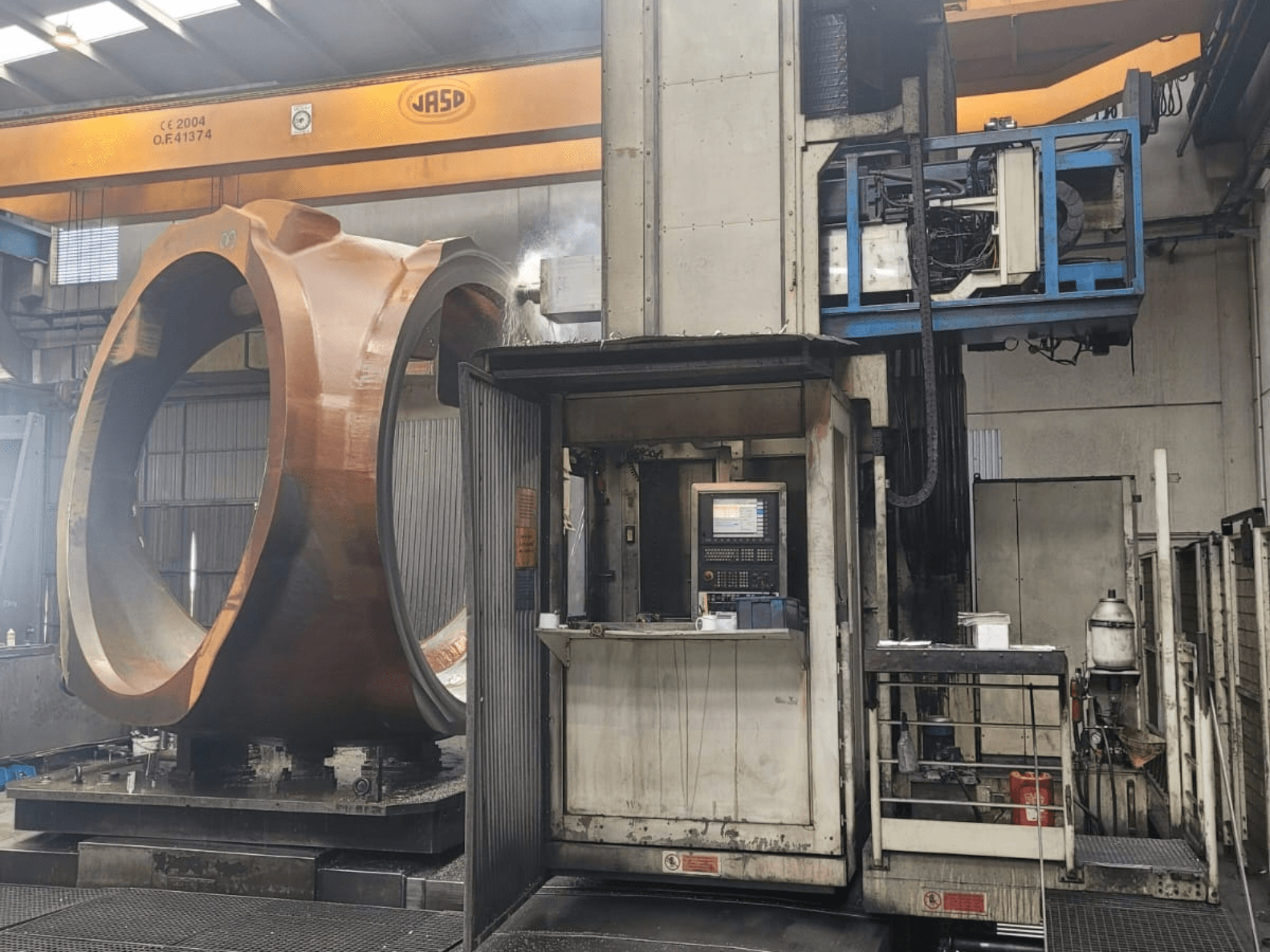

This 4-axis PAMA Speedram 1000 was manufactured in 2004. It features an impressive X-axis travel of 12,000 mm, Y-axis travel of 4,000 mm, and Z-axis travel of 1,000 mm. The machine includes a robust spindle diameter of 160 mm and a maximum spindle speed of 3,000 rpm. If you are looking to get high-quality milling capabilities, consider the PAMA Speedram 1000 mill-turn centre we have for sale. Contact us for further details.
Overview
- brand: PAMA
- year: 2004
- MODEL: Speedram 1000
- application type: Milling
- Location: Spain
- machine type: Mill-Turn Centre
- control unit brand: SIEMENS
Technical Information - PAMA Speedram 1000
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Table Load: 25000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 12000 mm
- Y-axis Travel: 4000 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 46 kW
- Spindle Speed: 3000 RPM
- Tool Stations: 60
Additional Information
W-axis travel: 700 mm
Spindle orientation: Horizontal
Spindle diameter: 160 mm
Spindle torque: 2,300 Nm
Ram section: 360 × 400 mm
Rapid traverse X/Z: 25,000 mm/min
Rapid traverse Y: 15,000 mm/min (20,000 mm/min possible)
Rapid traverse W: 20,000 mm/min
Tool cone: BT 50 BIG-PLUS
Operator pendant: Motorized
Additional equipment
Chip conveyor
Coolant through spindle: 15 l/min, 25 bar
External coolant: 50 l/min, 4 bar
Vertical fixed head TS 20 M: 30 kW, 2,500 rpm
TG4 retractable table: 2,000–3,000 mm, 25,000 kg load
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
