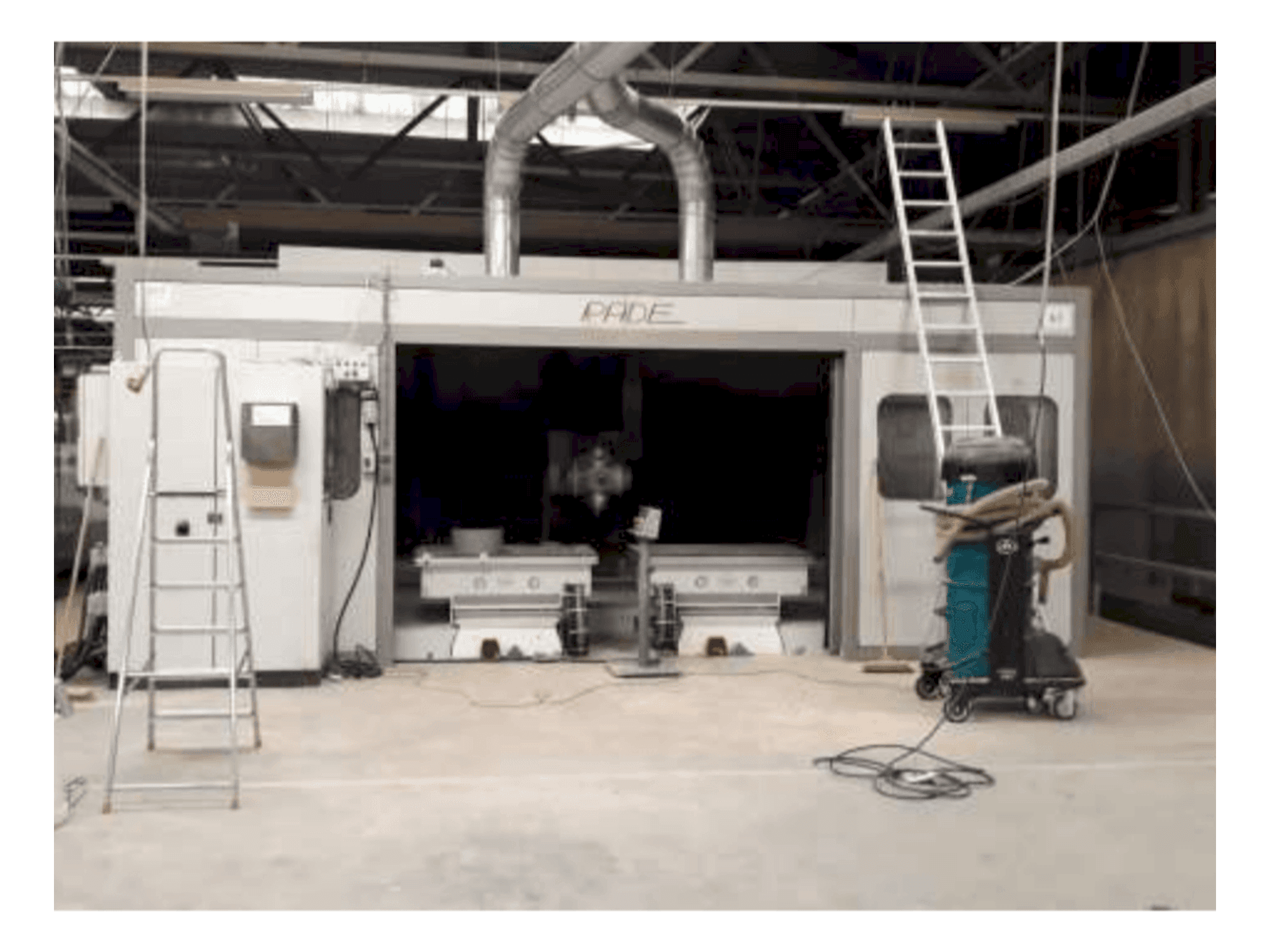

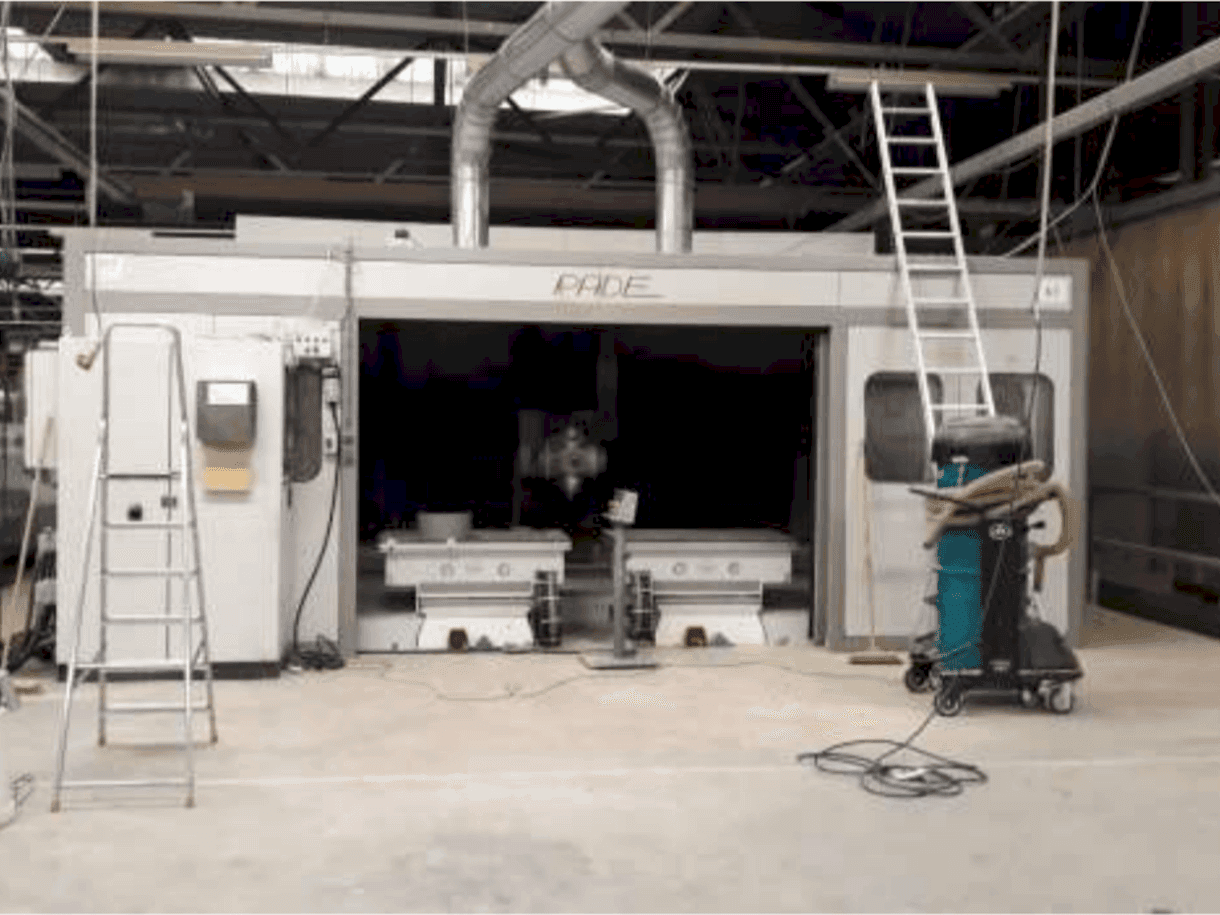

Front view of PADE UNI 5 concept  machine

PADE UNI 5 concept

PADE - UNI 5 concept

2002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This PADE UNI 5 concept Universal Machine Center was manufactured in 2002. It is operated through a CNC NUM 1040 W.1 PC version control unit. This 6 axis machine has a spindle speed up to 18000 rpm. It has a CNC NUM 1040 Standard feature and a conveyor belt for wood-dust and cut-pieces. the hand pedant is not included.

Overview

  • brand: PADE
  • year: 2002
  • MODEL: UNI 5 concept
  • production hours: 27030
  • application type: Milling
  • Location: Serbia
  • machine type: Machining centers (universal)
  • availability: Sold
  • control unit brand: NUM
  • GINDUMAC ID: RS-MIL-PAD-2002-00001

Technical Information

General Data

  • Measurements width: 6500 mm
  • Measurements depth: 4085 mm
  • Measurements height: 2060 mm
  • Machine weight: 5200 kg

Control Unit

  • Brand: NUM
  • Model: 1040 W.1 PC version

Main drive

  • Spindle speed range: 18000 rpm 1/MIN
  • Number of axis: 6

Movement

  • X-AXIS Movement: 3500 mm
  • Y-AXIS Movement: 1240 mm
  • Z-AXIS Movement: 1230 mm

Workpiece

  • Workpiece x: 3500 mm

Table

  • Outer length: 1250 mm
  • Outer width: 800 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Routing head with four different tools
      • - Y1 i y2 axis-transversal: 1240 mm
      • - Z axis-height: 1230 mm
      • - A axis (rotation): unlimited
      • - B axis (rotation): 400 degrees
      • - Maximum tolerance axes x, y and z – 0,05 mm
      • - Maximum tolerance axes a and b – 0,02 degrees
      • - Chunk shank – type er40
      • - Rapid tool attachment – hsk50
      • - Number of electro motors: 4
    • Qualitative Machine Benefits:
      • - Cnc num 1040 standard feature
      • - Conveyor belt for wood-dust and cut-pieces
      • - Air-conditioning in the electrical cabinet

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
