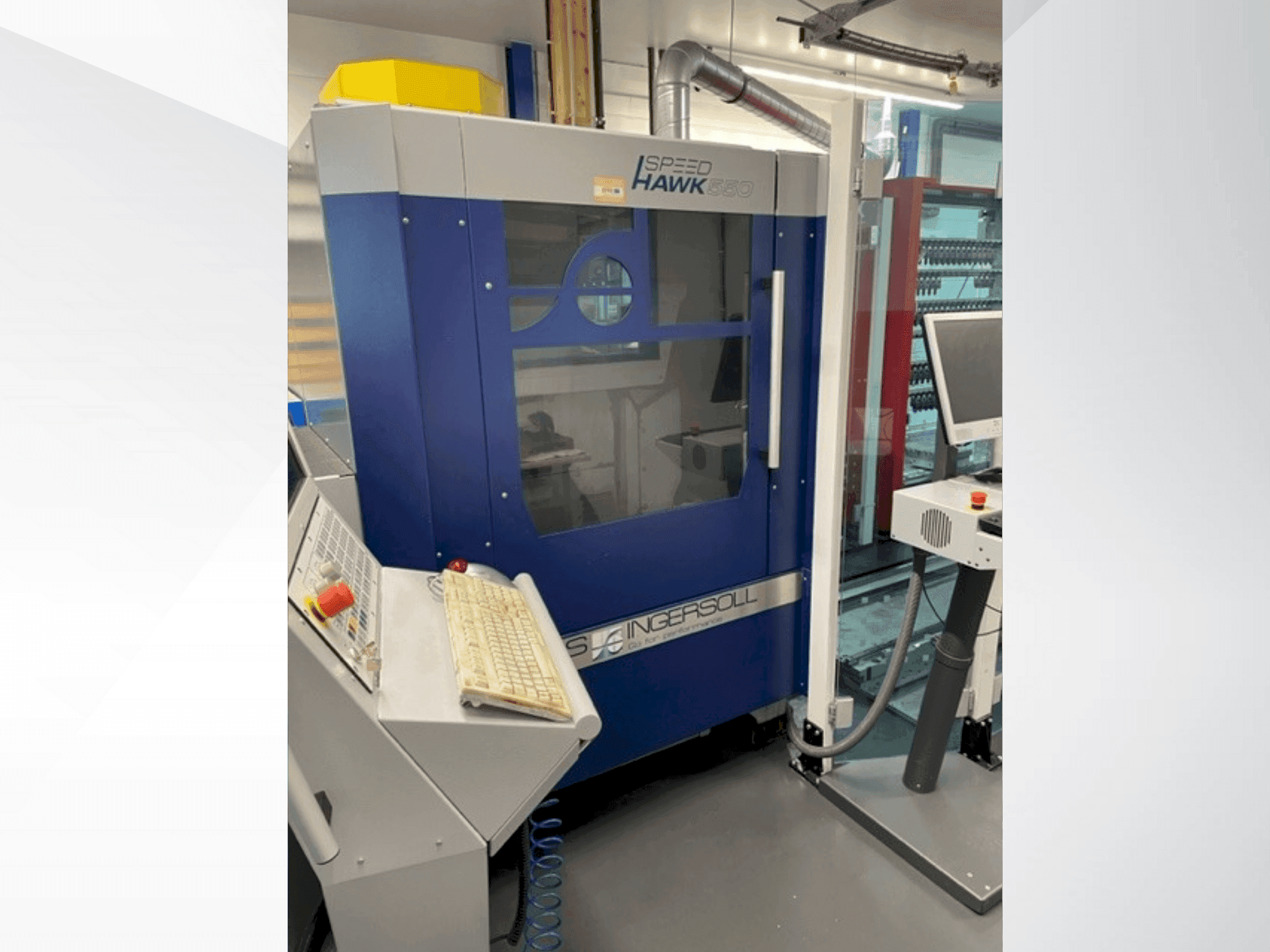

Front view of OPS INGERSOLL SPEED HAWK 550  machine

OPS INGERSOLL - SPEED HAWK 550DE-MIL-OPS-2010-00001

Rs. 4,991,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis OPS INGERSOLL SPEED HAWK 550 milling machine was manufactured in 2010. It features a high-frequency spindle with speeds up to 42,000 rpm, HSK E40, and a laser system for tool breakage control. Additionally, it includes an infrared measuring probe and a MultiChange Easy basic unit. Ideal for milling, measuring, and die-sinking electrodes, the OPS INGERSOLL SPEED HAWK 550 represents a robust opportunity. It is optional a separate 40-position workpiece changer , a shrinking unit available and approx. 500 electrode holders available. Contact us for further details regarding this milling machine.

Overview

  • brand: OPS INGERSOLL
  • year: 2010
  • MODEL: SPEED HAWK 550
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - OPS INGERSOLL SPEED HAWK 550

Control Unit

  • Model: 2060

Main drive

  • Number of spindles: 1
  • Spindle speed range: 42000 rpm 1/MIN
  • Tool taper: HSK E40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 mm
  • Y-AXIS Movement: 400 mm
  • Z-AXIS Movement: 400 mm

    Additional equipment

    • - Laser system for tool breakage control and tool length-diameter compensation
    • - Infrared measuring probe
    • - MultiChange Easy basic unit
    • - Diebold shrink unit
    • - Optional: Around 500 pieces electrode tools available

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Ultra-high spindle speed: 1-42,000 rpm for high-precision and fast machining operations.
        • - Advanced tool control: laser system for tool breakage control and tool length-diameter compensation for increased accuracy and reduced downtime.
        • - Versatile measuring system: infrared measuring probe for precise measurements.
        • - Optional: seperate 40-position workpiece changer available / shrinking unit available / approx. 500 electrode holders available
      • Qualitative Machine Benefits:
        • - Precision machining: high-quality, precise machining capabilities suitable for die-sinking electrodes.
        • - Improved tool life: diebold shrink unit ensures proper tool clamping, supporting extended tool life.

      Extra information

      • - This machine together with ZK GENIUS 700 (2018) + Chameleon Automation is a Automation cell for milling, measuring and die-sinking electrodes": https://www.gindumac.com/product/zk-genius-700_DE-EDM-ZKX-2018-00001

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
