- ➤ Used Okuma MB 5000H For Sale | gindumac.com

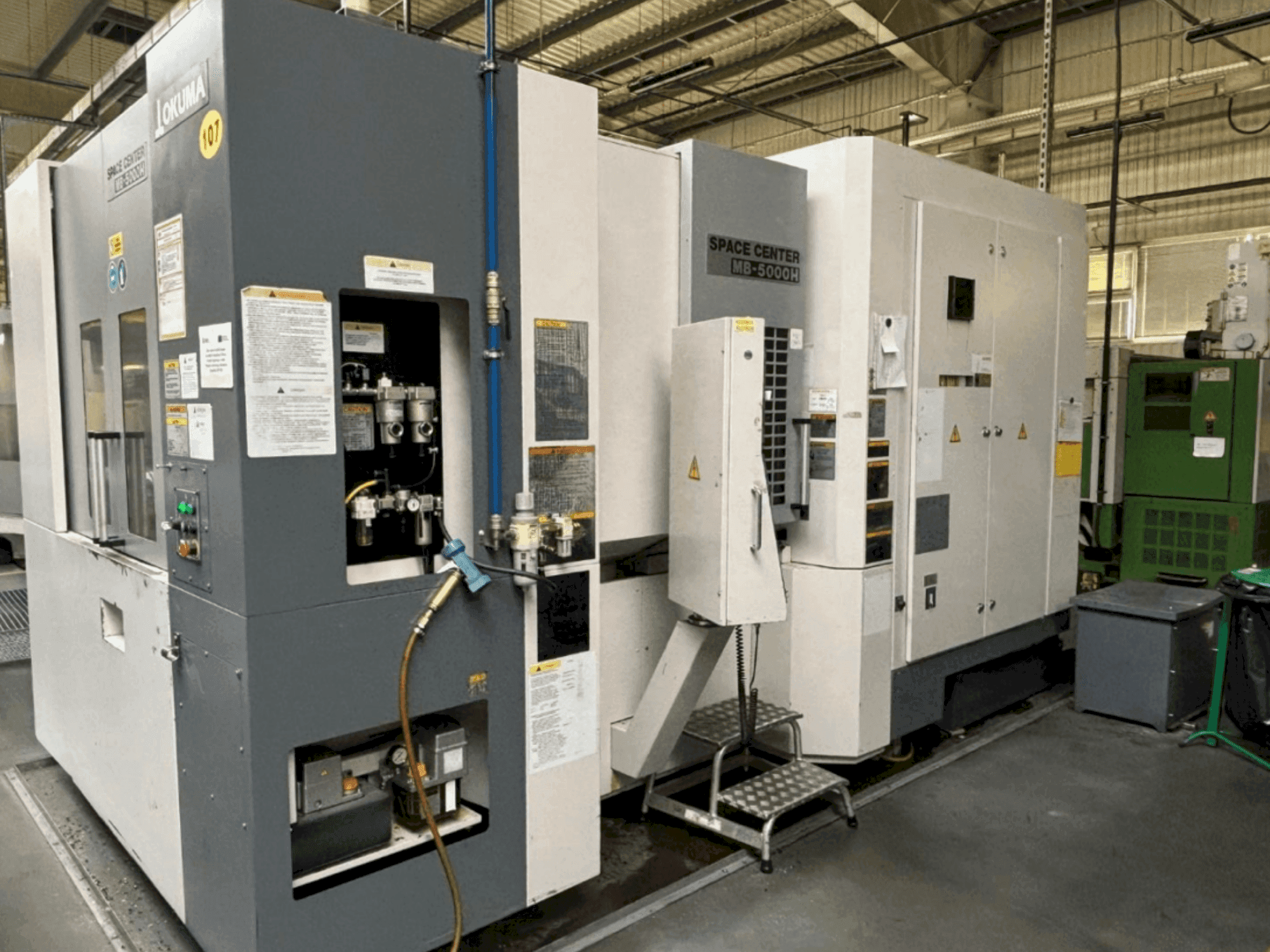

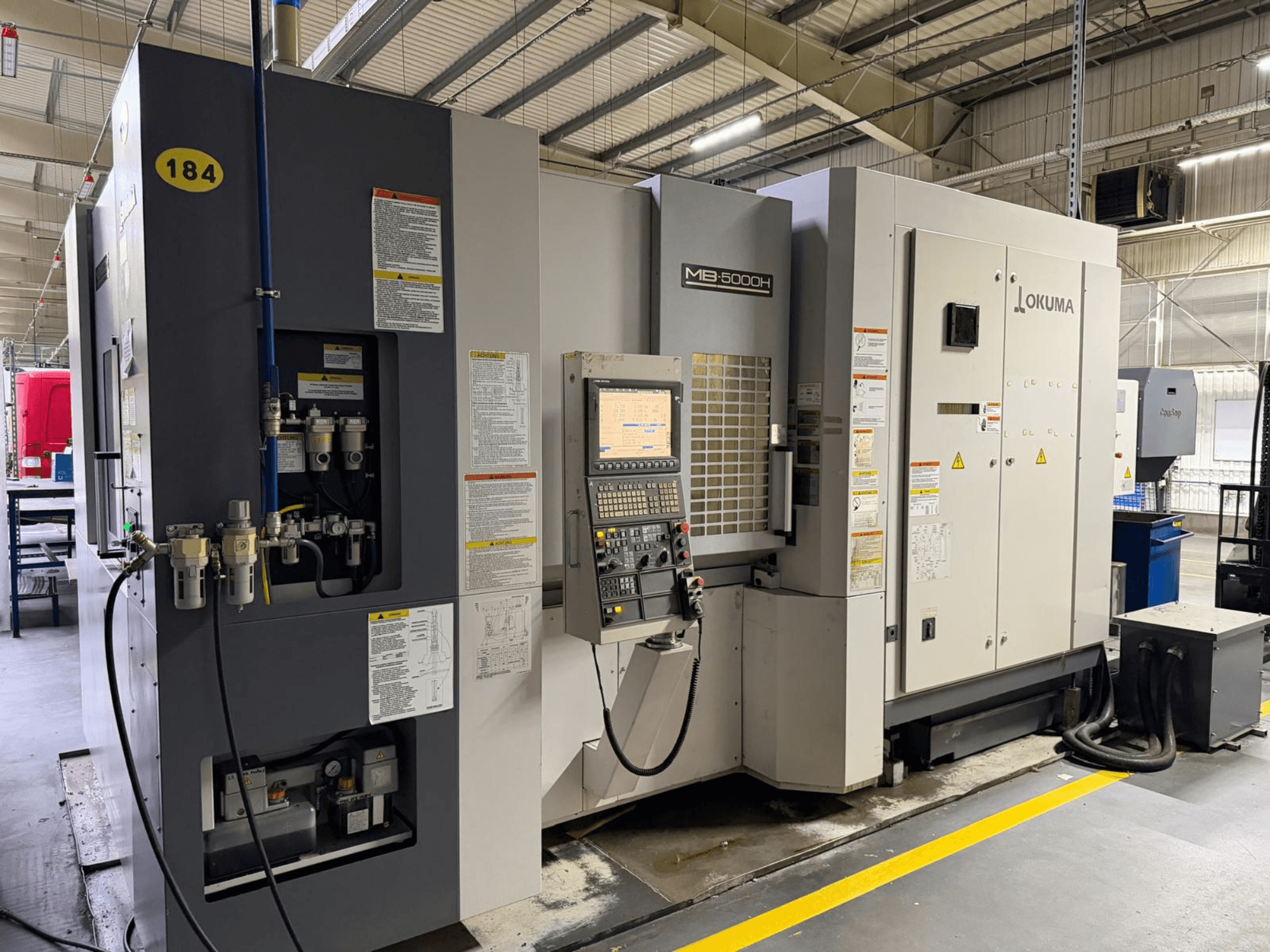

This 4-axis Okuma MB 5000H was manufactured in 2011. It features a robust horizontal machining center design with a 500 × 500 mm pallet size, capable of handling a maximum load of 500 kg. The spindle supports speeds from 50 to 15,000 min⁻¹ with a SK40 taper, enhancing its versatility. Additional features include a chip conveyor, shower system, and provision for a Renishaw probe. If you are looking to get high-quality milling capabilities consider the Okuma MB 5000H machine we have for sale. Contact us for more information.
Overview
- brand: Okuma
- year: 2011
- MODEL: MB 5000H
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
Technical Information - Okuma MB 5000H
Dimensions
- Machine Depth: 2700 mm
- Machine Height: 2864 mm
- Machine Weight: 11500 kg
- Table Load: 500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 760 mm
- Y-axis Travel: 760 mm
- Z-axis Travel: 760 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Spindle Speed: 15000 RPM
Additional Information
Spindle center to pallet top: 50–810 mm
Spindle nose to pallet center: 135–895 mm
Table/Pallet:
Pallet size: 500 × 500 mm
Indexing: 1°
Workpiece capacity:
Max workpiece: Ø800 × 1,000 mm
Spindle:
Bearing diameter: Ø70 mm
Power (10 min / continuous): 26 / 18.5 kW
Through-spindle cooling: Yes
Feed / rapid rates:
Cutting feedrate: 1–60,000 mm/min
Axes feed motor power X/Y/Z: 4.6 kW
Table indexing motor power: 3.0 kW
Tooling / ATC:
Tool shank: MAS403 / BT40
Pull stud: MAS 2
Magazine capacity: 64 tools
Tool selection: Random
Floor space: 2,700 × 4,710 mm
Features:
Shower system: Yes
Provision for Renishaw probe: Yes
Presetting at table edge: Yes
Additional equipment
Chip conveyor: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
