Okuma MACTURN 250W

Photo Gallery

Okuma - MACTURN 250WIT-TUR-OKU-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

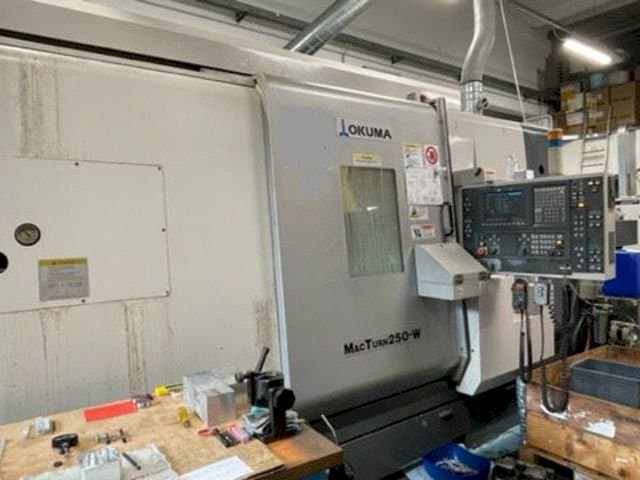

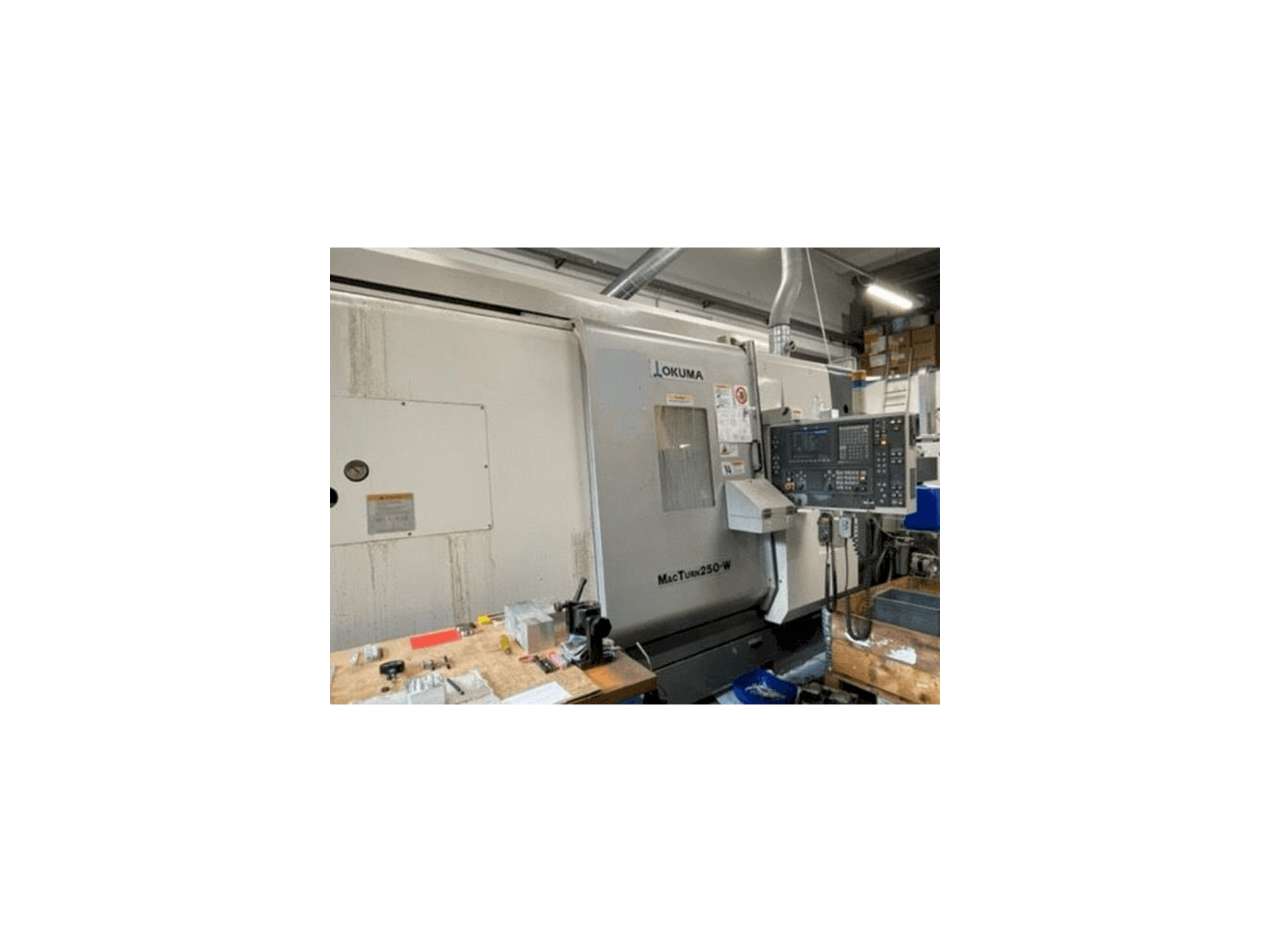

OKUMA MACTURN 250W Lathe

Show in original language

This OKUMA MACTURN 250W Multitasking Lathe was made in 2002. It is equipped with a OSP-U100L manuf control unit and has 9 axis. The machine has a spindle speed of 45-6000 rpm.

Overview

brand: Okuma
year: 2002
MODEL: MACTURN 250W
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - Okuma MACTURN 250W

Dimensions

Machine Depth: 3900 mm
Machine Height: 3000 mm
Machine Weight: 15500 kg

Movement

Number of Axes: 9

Technical Specification

Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

B1 monitor for lubrication monitoring
Chip conveyor ,touch setter
Kitagawa hollow cylinder air blow off jaws ,waterblow inside for whashing
Single stations h1 turret hsk 63
M-spindle standard 6. 000 full controlled b-axis
0,001 standard 1 degree 44 atc, 44 pcs. In
Atc chain, 1 pcs. In dok. Atc 44 stations
Automatic switching to reserve tools, controlled by following: 1. Number of parts 2. Cutting time 3. Tool wear from mop-s or automated tool measurement point 1,2,3 can be combined
Auto cut off power by m02 series or alarms.
Max. Turning diameter: 650 mm

Technical Machine Benefits

Turning length: 1170 mm
Spindle bore: 51 mm
Motor for live tools vac 7,7/5,3/3,7 kw (5/20 kont)
Airblow on spindle and couterspindle
Hydraulic units
3 refrigeration units (each for each spindle )
Shields for chips and cooling water
Blocking of door
Work light
Lower turret 12 pcs. Vdi-40 static

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

specification MACTURN250W_page-0001.pdf
