Okuma MA 600

Photo Gallery

Okuma - MA 600IT-MIL-OKU-2005-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma MA 600 For Sale | gindumac.com

Show in original language

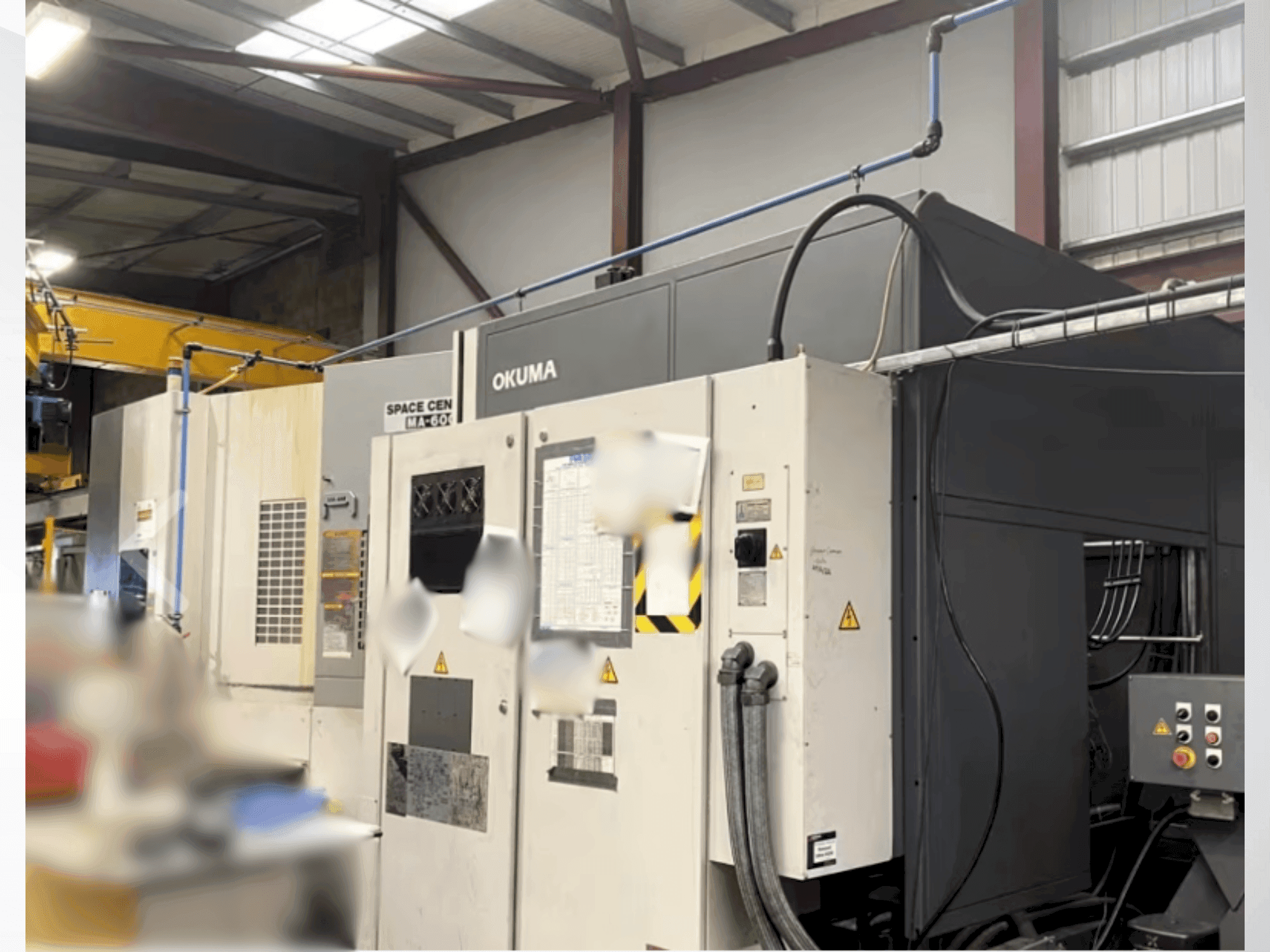

This 4-axis Okuma MA 600 horizontal machining center was manufactured in 2005. It features a powerful CNC P 200 control, with a maximum spindle speed of 6000 RPM and a spindle torque of 606 Nm. The machine includes a 100-tool station with chain management and rapid feeds up to 60 m/min in X, Y, Z axes. Dimensions include a maximum height of 3.28 m and a weight of 24,000 kg. The opportunity to buy this Okuma MA 600 horizontal machining center is significant. Contact us for further details.

Overview

brand: Okuma
year: 2005
MODEL: MA 600
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - Okuma MA 600

Movement

Number of Axes: 4
X-axis Travel: 1000 mm
Y-axis Travel: 900 mm
Z-axis Travel: 1000 mm

Technical Specification

Max. Tool Weight: 25 kg
Spindle Power: 30 kW
Spindle Speed: 6000 RPM
Taper Size: BT 50

Additional Information

Additional equipment

Consep 2000 chip conveyor

Machine Benefits

Qualitative Machine Benefits

Max non-adjacent tool diameter: 240 mm
Compressed air pressure: 4-6 bar
Refrigeration through spindle: 20 bar
Probe preparation zero offset
Presetting on board mechanical table

Technical Machine Benefits

Ikz: 20 bar
Table drive motor power: 1. 9 kw
Table indexing time (90° - 180°): 2. 0 – 3. 0 sec
Pallet change time: 7 sec
Distance between spindle nose/table center: 70-1070 mm
Front bearing diameter: 100 mm (60 mm)
Max spindle torque: 606 nm
Tool change time (tool/tool): 1. 9 sec
Tool change time (chip/chip): 4. 4 sec
Max adjacent tool diameter: 140 mm (100 mm)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
