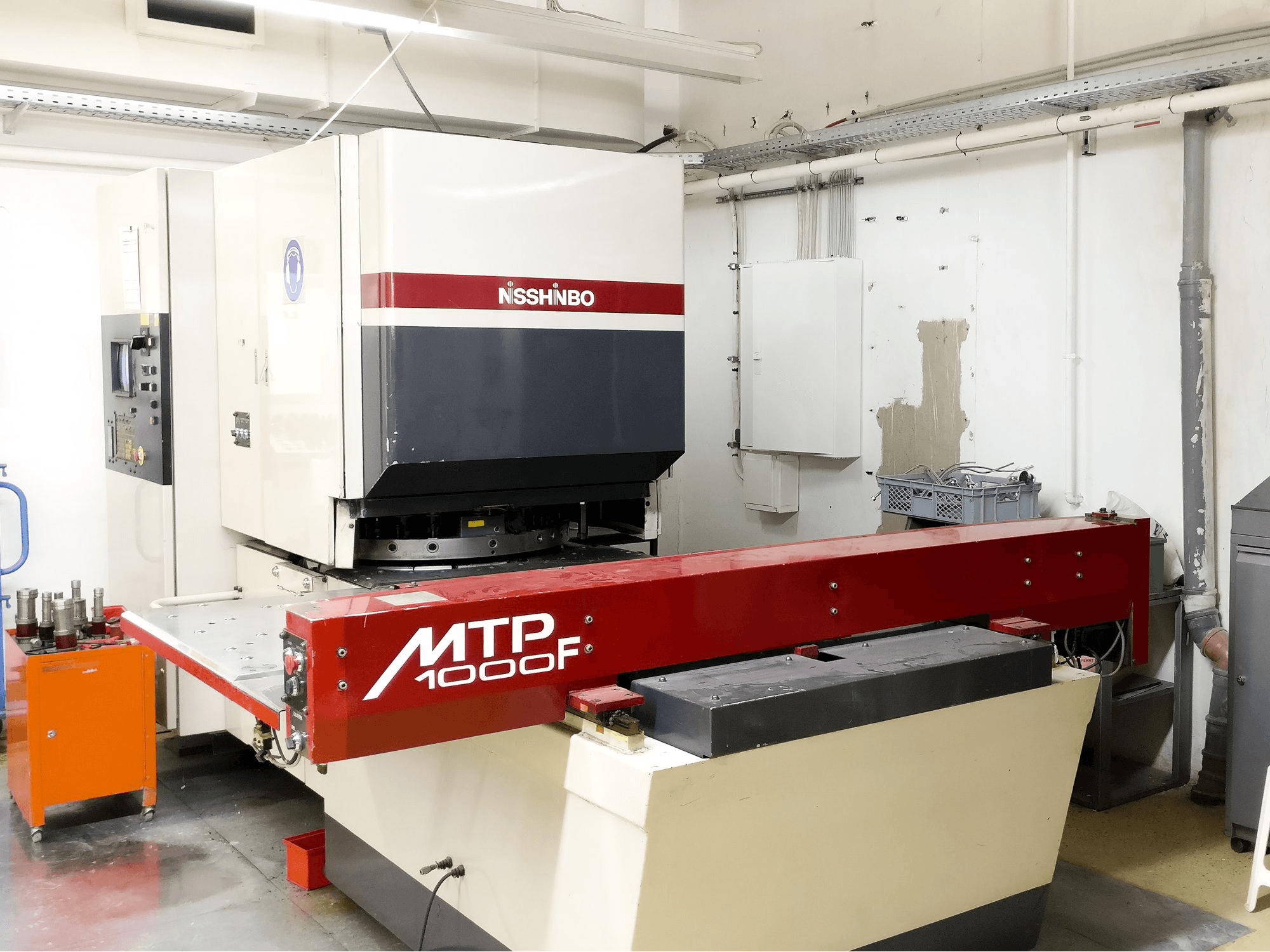

Left view of Nisshinbo MTP-1000F machine
Left view of Nisshinbo MTP-1000F machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Nisshinbo - MTP-1000FDE-PUN-NIS-1992-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Nisshinbo MTP-1000F Turret Punching Machine was manufactured in 1992 and has a production record of 18800 working hours. This machine operates on a 220 kN strong punching force through Nisshinbos own Control unit, and is delivered with several diverse toolsets as additional equipment.

Overview

  • brand: Nisshinbo
  • year: 1992
  • MODEL: MTP-1000F
  • production hours: 18800
  • application type: Punching
  • Location: Germany
  • machine type: Turret Punch Press

Technical Information - Nisshinbo MTP-1000F

General Data

  • Measurements width: 3975 mm
  • Measurements depth: 2338 mm
  • Measurements height: 2200 mm
  • Machine weight: 7500 kg

    Main drive

    • Punching force: 220 kN
    • Maximum sheet thickness: 6 mm

    Workpiece

    • Workpiece x: 1000 mm
    • Workpiece y: 2560 mm

    Tools

    • Number of stations: 22
    • Max tool diameter: 100 mm

    Media

    • Main electronic connection: 380 V / 50 Hz
    • Power consumption: 9 kVA
    • Oil tank: 60 L

      Additional Information

      Additional equipment

      • Diverse toolsets

      *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
