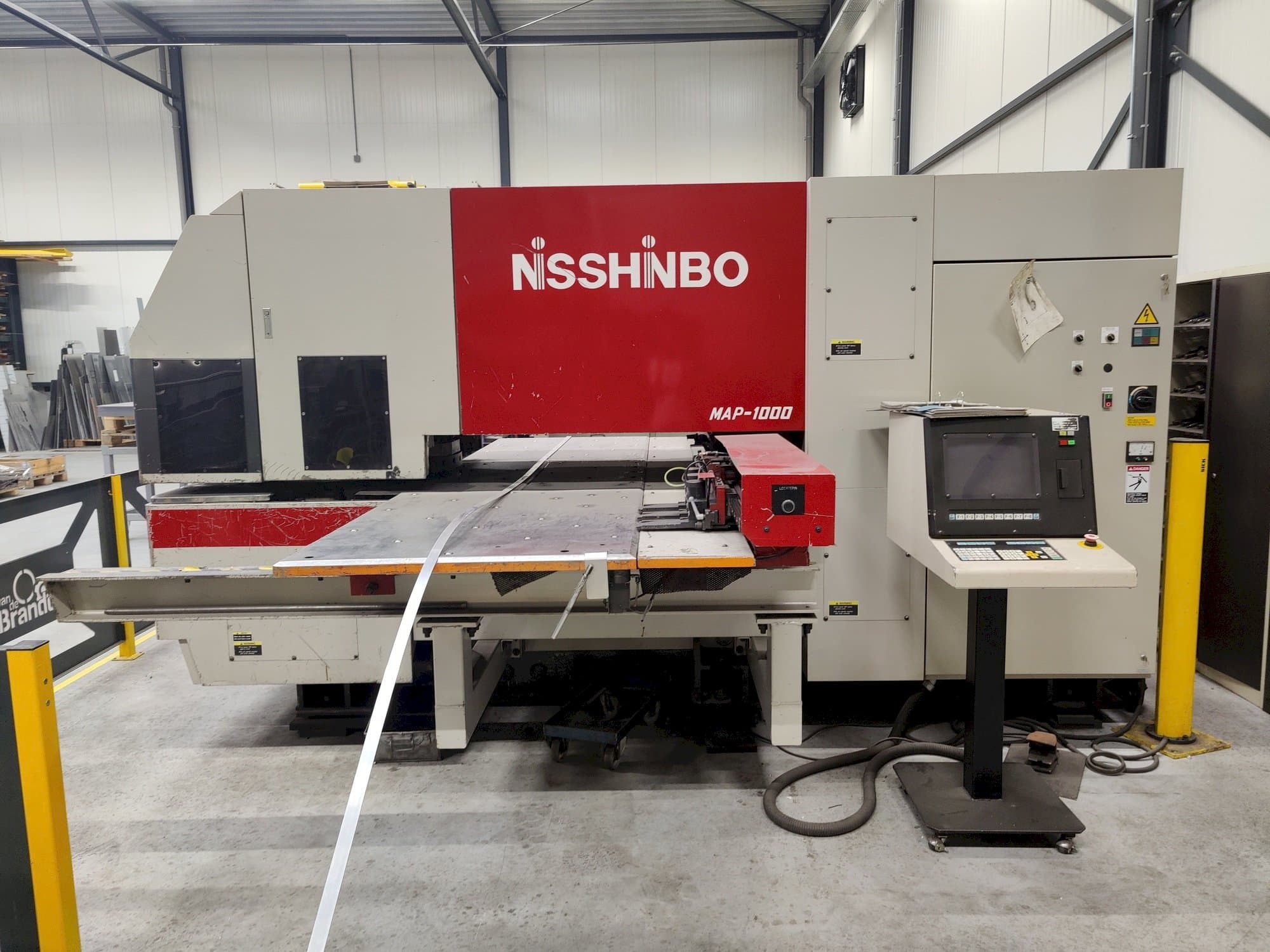

Front view of Nisshinbo MAP-1000 machine
Front view of Nisshinbo MAP-1000 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Nisshinbo - MAP-1000NL-PUN-NIS-1999-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Nisshinbo MAP-1000 Punching machine was manufactured in the year 1999 in Japan. It is equipped with a Nisshinbo PAL-510T control unit. The machine has a pressing force of 2200 kN.

Overview

  • brand: Nisshinbo
  • year: 1999
  • MODEL: MAP-1000
  • application type: Punching
  • Location: Netherlands
  • machine type: CNC Punch Press

Technical Information - Nisshinbo MAP-1000

General Data

  • Measurements width: 3650 mm
  • Measurements depth: 4400 mm
  • Measurements height: 2245 mm
  • Machine weight: 13000 kg

Control Unit

  • Model: PAL-510T

Main drive

  • Pressing force: 220 kN

Table

  • Outer length: 1000 mm
  • Outer width: 2100 mm

Media

  • Main electronic connection: 380 V/ 50 Hz
  • Power consumption: 18 kVa

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Punching frequency: 300 spm
      • - Ram stroke length: 32mm
      • - Max. Working thickness: 6. 35mm
      • - Max. Working diameter: 100mm
      • - Table feed rate: 50 m/min
      • - Turret: 22 positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
