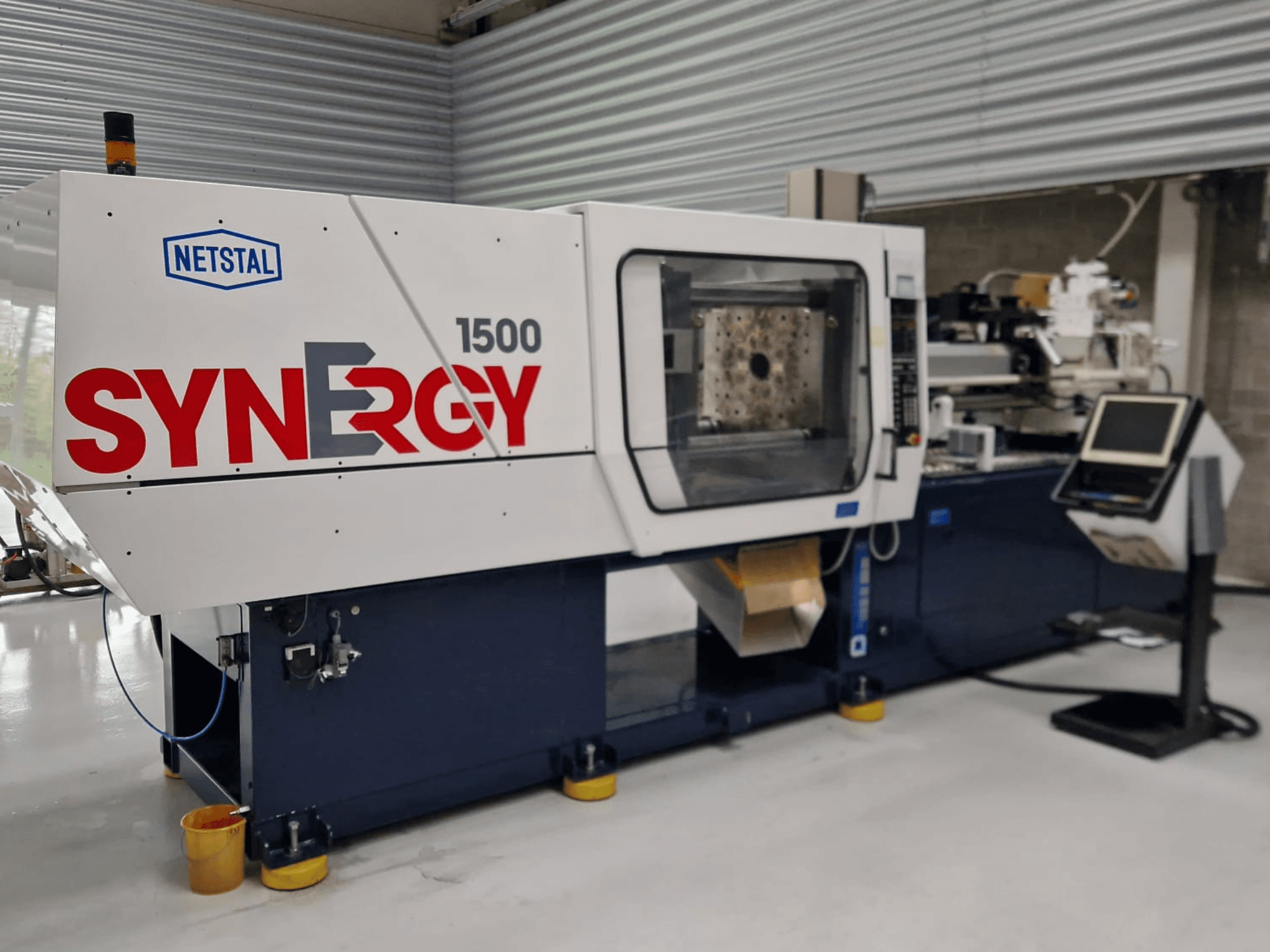

Netstal - Synergy 1500-460 CH-INJ-NET-2000-00001

Hydraulics and clamping

• Operating pressure: 210 bar

• Injection force: 279 kN

• Opening stroke: 0–450 mm

• Mould height: 400–700 mm

Electrical supply

• Supply 1 (3L+PE)

  • Nominal voltage: 400 V / 50 Hz

  • Nominal current: 63 A

  • Motor protection: 55 A

  • Motor power: 30 kW

  • Cable cross-section: 16 mm²

  • Nameplate values: Nominal current 55 A; Nominal power 30 kW

• Supply 2 (heating/control) (3L+N+PE)

  • Nominal voltage: 400 V / 50 Hz

  • Nominal current: 100 A

  • Total connected load (heating/control): 67.6 kW

  • Cable cross-section: 35 mm²

  • Nameplate values: Nominal current 97.7 A; Nominal power 67.6 kW

• Control voltages

  • AC: 230 V

  • DC: 5 V / ±15 V / 24 V

Auxiliaries and drives

• Oil filter motor: 400 V / 0.6 A

• Central lubrication (slow): 400 V / 0.9 A

• Central lubrication (fast): 400 V / 3.0 A

• Central lubrication (F110): 230 V / 1.0 A / 0.10 kW

Heating/plasticizing and outlets

• Plasticizing 1: 230 V / 20.9 kW

• Plasticizing 2: 230 V

• Mould heating: 230 V

• Socket outlets: 230 V / 57.7 kW
