➤ Used Netstal ELION 800-270F For Sale | gindumac.com

Show in original language

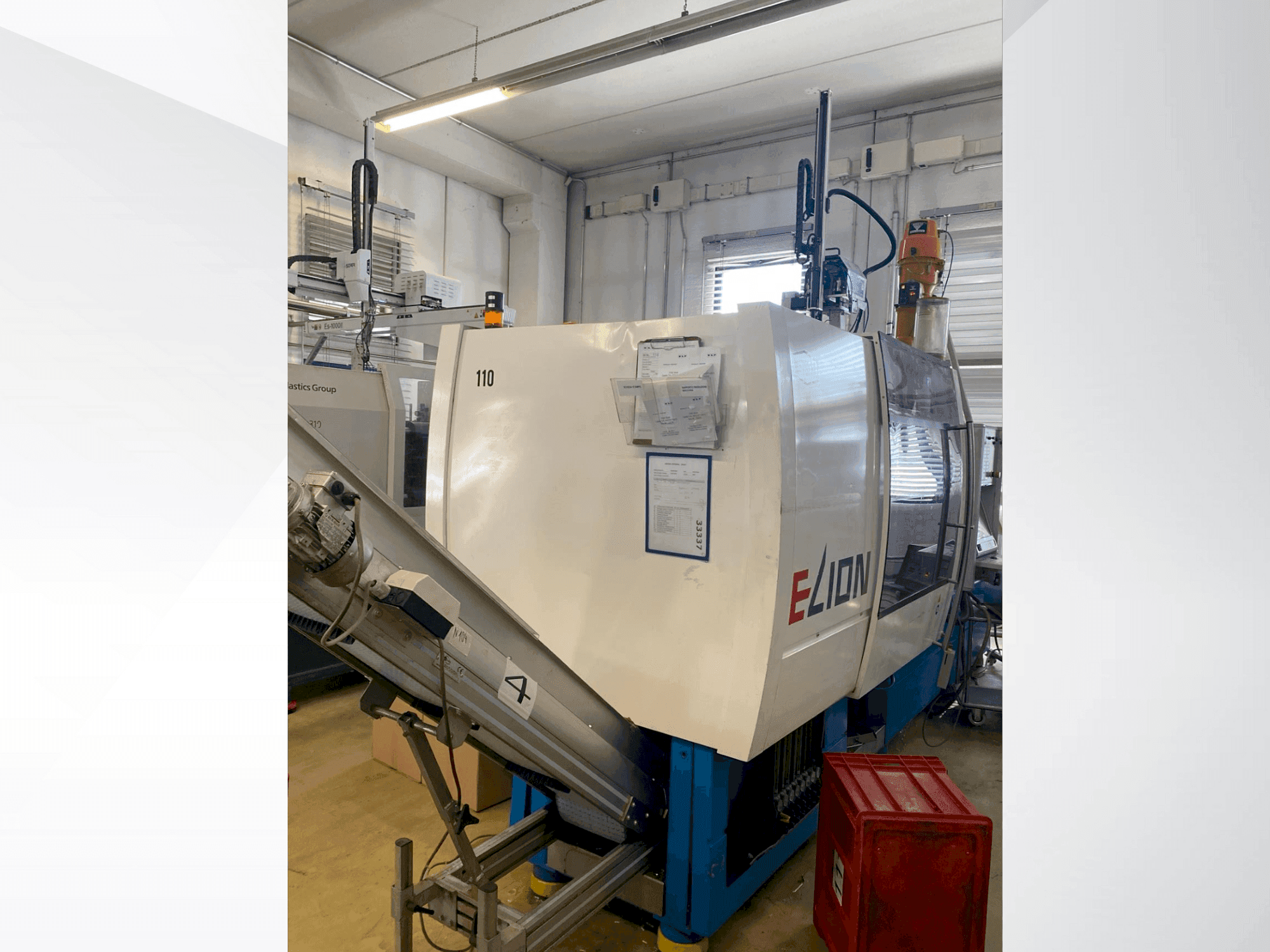

This Netstal ELION 800-270F was manufactured in 2009. A robust hydraulic injection moulding machine featuring a clamping force of 800 KN and a screw diameter of 40 mm. It supports a maximum shot volume of 160.8 cm³ and a shot weight of 154.3 g. Dimensions are 4776 mm in length, 1711 mm in width, and 2042 mm in height, weighing approximately 8.30 tons. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: Netstal
year: 2009
MODEL: ELION 800-270F
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Netstal ELION 800-270F

General Data

Measurements width: 1711 mm
Measurements depth: 4776 mm
Measurements height: 2042 mm
Machine weight: 8300 kg

Injection Unit

Screw diameter: 40 mm
Shot weight: 154.3 g (PS)
Injection pressure: 1690 bar
Screw speed: 530 rpm

Clamping unit

Clamping force: 800 kN
Opening stroke: 350 mm
Distance between bars: 410 x 410 mm
Mould height min: 200 – 500 mm
Mould height max: 400 – 700 mm
Ejector stroke: 120 mm
Ejector force for / back: 27 kN

Additional equipment

- Core pull: 0 units

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max metering stroke: 128 mm
- - Max shot volume: 160. 8 cm³
- - Standard injection flow rate: 314. 2 cm³/s // power injection flow rate: 565. 5 cm³/s
- - Max injection speed standard/power: 250 / 450 mm/s // max screw speed force/speed/master: 400 / 530 / 550 rpm
- - Max torque force: 480 nm // max torque speed: 330 nm // max torque master: 480 nm
- - Heating capacity: 17. 7 kw
- - Opening force: 800 kn // max retraction force: 27 kn
- - Max mold weight: 1174 kg
- - Dry cycle stroke: 1. 3 – 287 s – mm
- - Nozzle contact force: 25 / 50 kn // nozzle retraction stroke: 510 mm
Qualitative Machine Benefits:
- - High injection pressure: 1690 bar
- - High injection flow rate: 314. 2 cm³/s (standard), 565. 5 cm³/s (power)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
