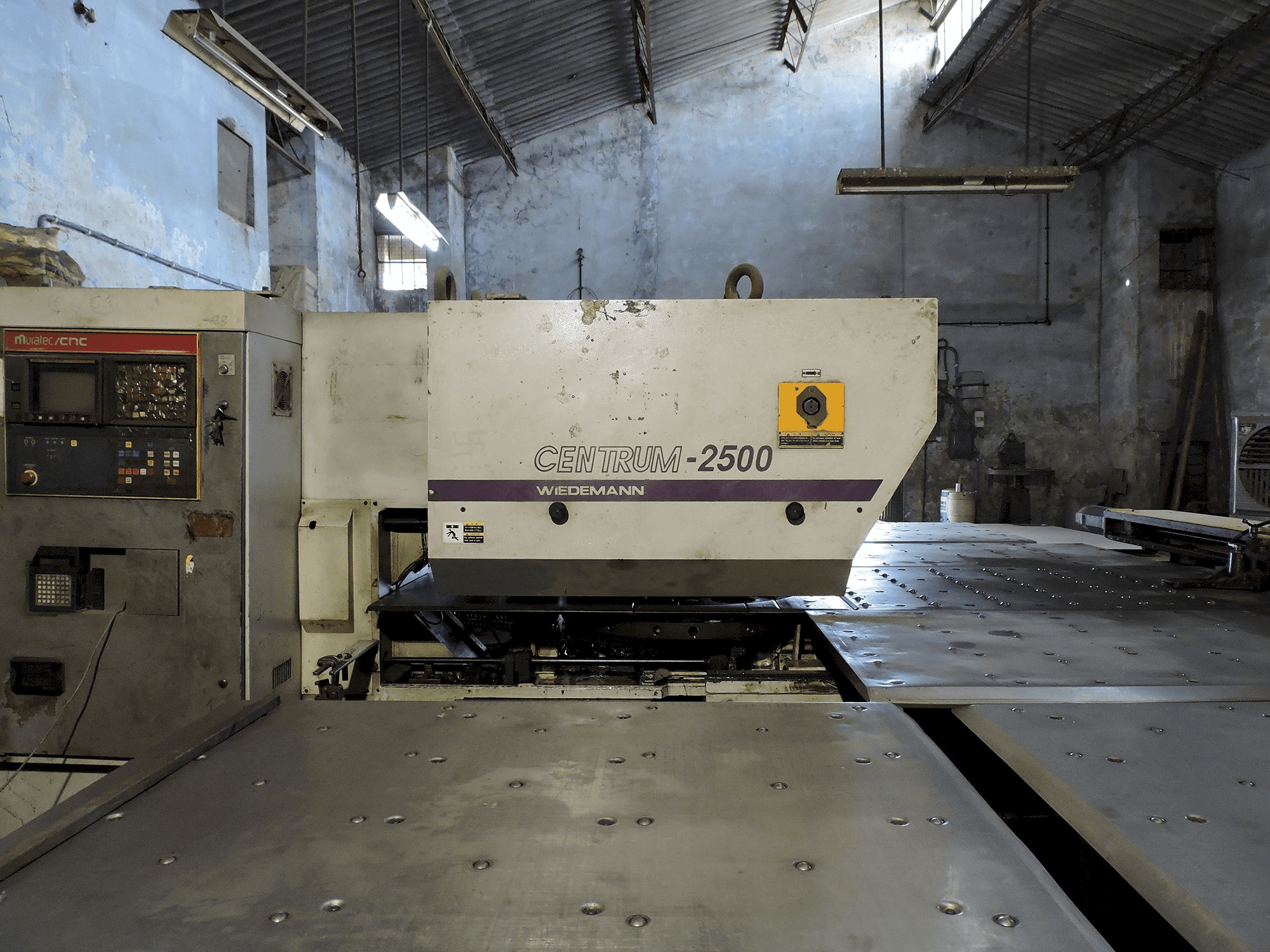

Left side view of Murata Wiedemann C-2500 Machine
Left side view of Murata Wiedemann C-2500 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Murata Wiedemann - C-2500IN-PUN-MUR-1992-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Murata Wiedemann C-2500 Turret Punching Machine was built in 1992 in Japan and has been working for 71000 hours since then. Equipped with a FANUC Series O-P Control unit, this large format machine has mainly been working with mild steel up tp 3 mm of thickness during the past.

Overview

  • brand: Murata Wiedemann
  • year: 1992
  • MODEL: C-2500
  • production hours: 71000
  • application type: Punching
  • Location: India
  • machine type: Turret Punch Press
  • availability: Sold
  • control unit brand: FANUC

Technical Information - Murata Wiedemann C-2500

General Data

  • Measurements width: 4700 mm
  • Measurements depth: 2700 mm
  • Measurements height: 1800 mm
  • Machine weight: 8900 kg

Control Unit

  • Model: Series O-P
  • CNC main language: English
  • CNC language customizable: Yes
  • Brand: FANUC

Main drive

  • Punching force: 200 kN
  • Maximum sheet thickness: 6 mm

Movement

  • X-AXIS Movement: 1250 mm
  • Y-AXIS Movement: 1280 mm

Tools

  • Number of index: 2
  • Number of stations: 22

Max Material thickness

  • Steel: 6 mm
  • Stainless steel: 2 mm
  • Aluminum: 4 mm

Media

  • Main electronic connection: 400 V /50 Hz
  • Power consumption: 15 kVA

    Additional equipment

    • - Accessories
    • - Metalix Software

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
