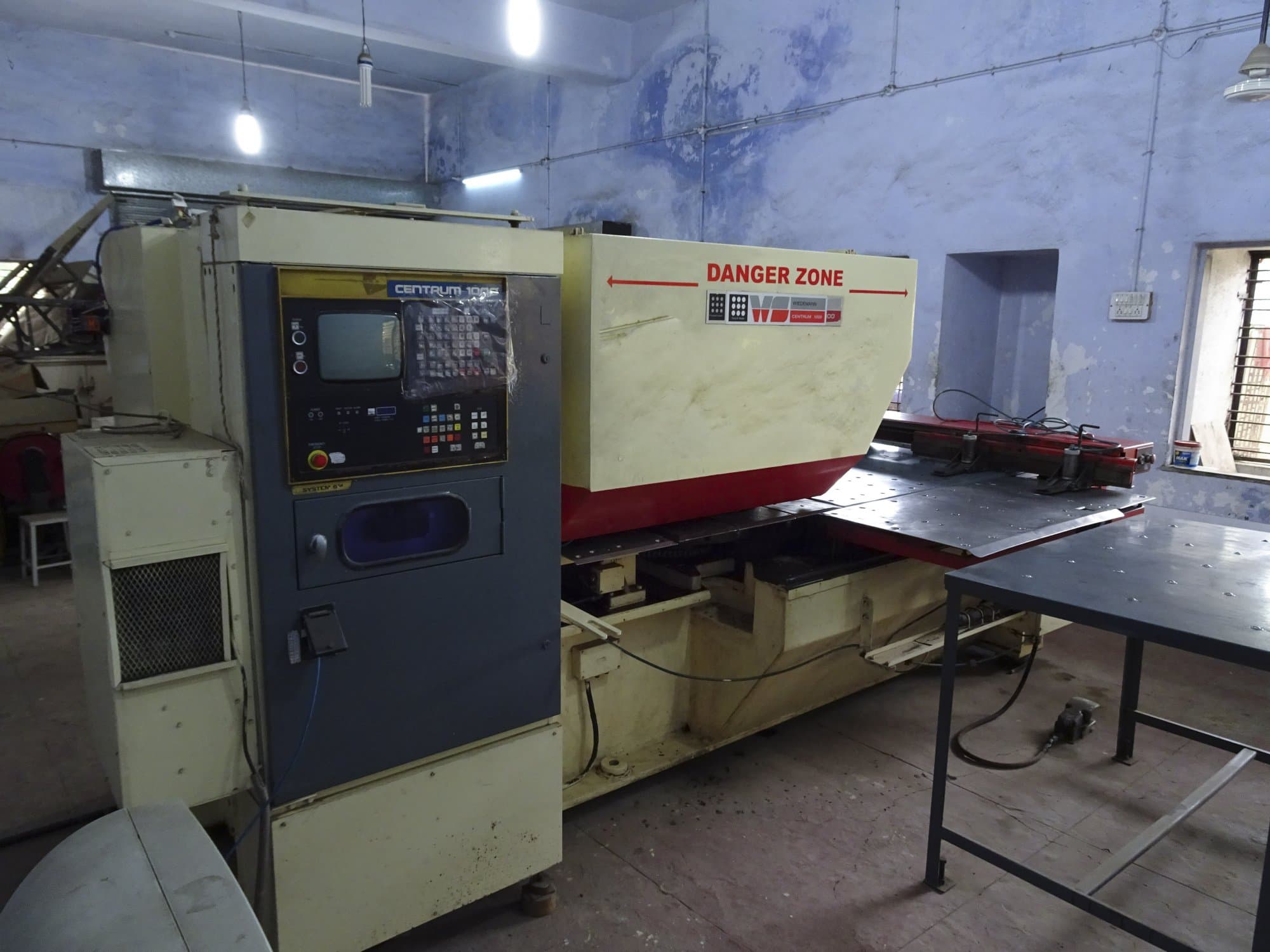

Murata Wiedemann C-1000 Turret Punching Machine

Show in original language

This Murata Wiedemann C-1000 Turret Punching Machine from 1986 was built in Japan and has a total of around 45000 working hours. Operated through a FANUC 6M Control unit, this compact machine has mainly worked with 2 mm steel sheets during the past.

Overview

brand: Murata Wiedemann
year: 1986
MODEL: C-1000
production hours: 45000
application type: Punching
Location: India
machine type: Turret Punch Press

Technical Information - Murata Wiedemann C-1000

General Data

Measurements width: 2972 mm
Measurements depth: 3505 mm
Measurements height: 1829 mm
Machine weight: 6100 kg

Control Unit

Brand: FANUC
Model: 6M

Main drive

Punching force: 150 kN
Maximum sheet thickness: 3 mm

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1000 mm

Tools

Number of stations: 20

Max Material thickness

Steel: 3 mm
Stainless steel: 2 mm
Aluminum: 2 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 15 kVA

Additional Information

Additional equipment

Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
