➤ Used MORI SEIKI NL2000SY/500 For Sale | gindumac.com

Show in original language

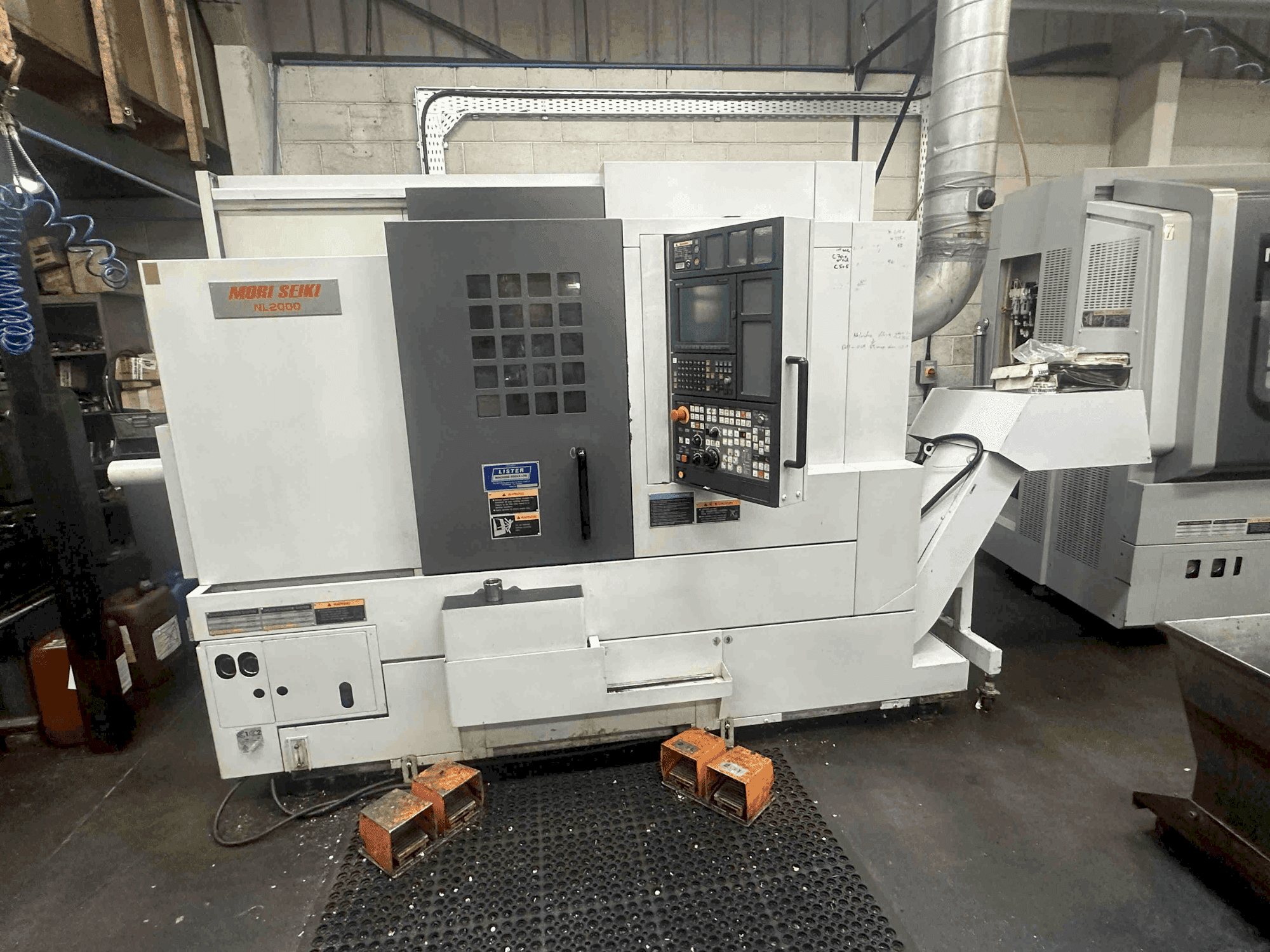

This MORI SEIKI NL2000SY/500 was manufactured in 2006. A robust CNC lathe with sub spindle and driven tools, it features a max turning diameter of 366mm and a length of 510mm. It supports bar work up to 65mm and includes a BMT tool turret and a swarf conveyor. Ideal for precision tasks, the machine we have for sale offers a swing over bed of 923mm and a main spindle speed up to 5000rpm. Contact us for more information.

Overview

brand: MORI SEIKI
year: 2006
MODEL: NL2000SY/500
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: Mori Seiki/Mitsubishi

Technical Information - MORI SEIKI NL2000SY/500

General Data

Measurements width: 2000 MM
Measurements depth: 2705 MM
Measurements height: 2120 MM
Machine weight: 5800 KG

Control Unit

Brand: Mori Seiki/Mitsubishi
Model: MSX-850III

Main drive

Spindle speed range: Main Spindle: 5000: Sub Spindle: 6000 1/MIN
Spindle motor power: 15kW

Movement

X-AXIS Movement: 260 mm
X-AXIS Rapid traverse: 30,000mm/min
Y-AXIS Movement: +/-50mm(100mm)
Y-AXIS Rapid traverse: 10,000mm/min
Z-AXIS Movement: 590mm
Z-AXIS Rapid traverse: 30,000mm/min
V-Axis Movement: 624mm
V-Axis Rapid traverse: 30,000mm/min

Workpiece

Workpiece drm: 366mm
Workpiece x: 510 mm

Additional equipment

- Static Tool Holders
- 2 x Axial Driven Tool Holders
- 1 x Radial Driven Tool Holder
- Barfeed Interface
- Swarf Conveyor
- Tool Presetter
- Parts Catcher
- BMT Tool Turret

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Sub spindle motor power: 11kw
- - Rotary tool motor power: 5. 5kw
- - Min spindle indexing: 0. 001゜
- - Turret indexing time: 0. 25sec
- - Coolant tank capacity: 235l
- - Distance between centres: 500mm
- - Standard chuck size - spindle 1: 8"
- - Standard chuck size - spindle 2: 6"
- - Bar work capacity: 65mm
- - Swing over bed: 923mm
Qualitative Machine Benefits:
- - Swing over cross-slide: 755mm
- - Standard turning diameter: 275mm
- - Shank height for square tool: 25mm
- - Boring bar shank diameter: 50mm
- - Rotary tool shank diameter: 26mm
- - Electrical power supply: 35. 9kva
- - Very good condition

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
