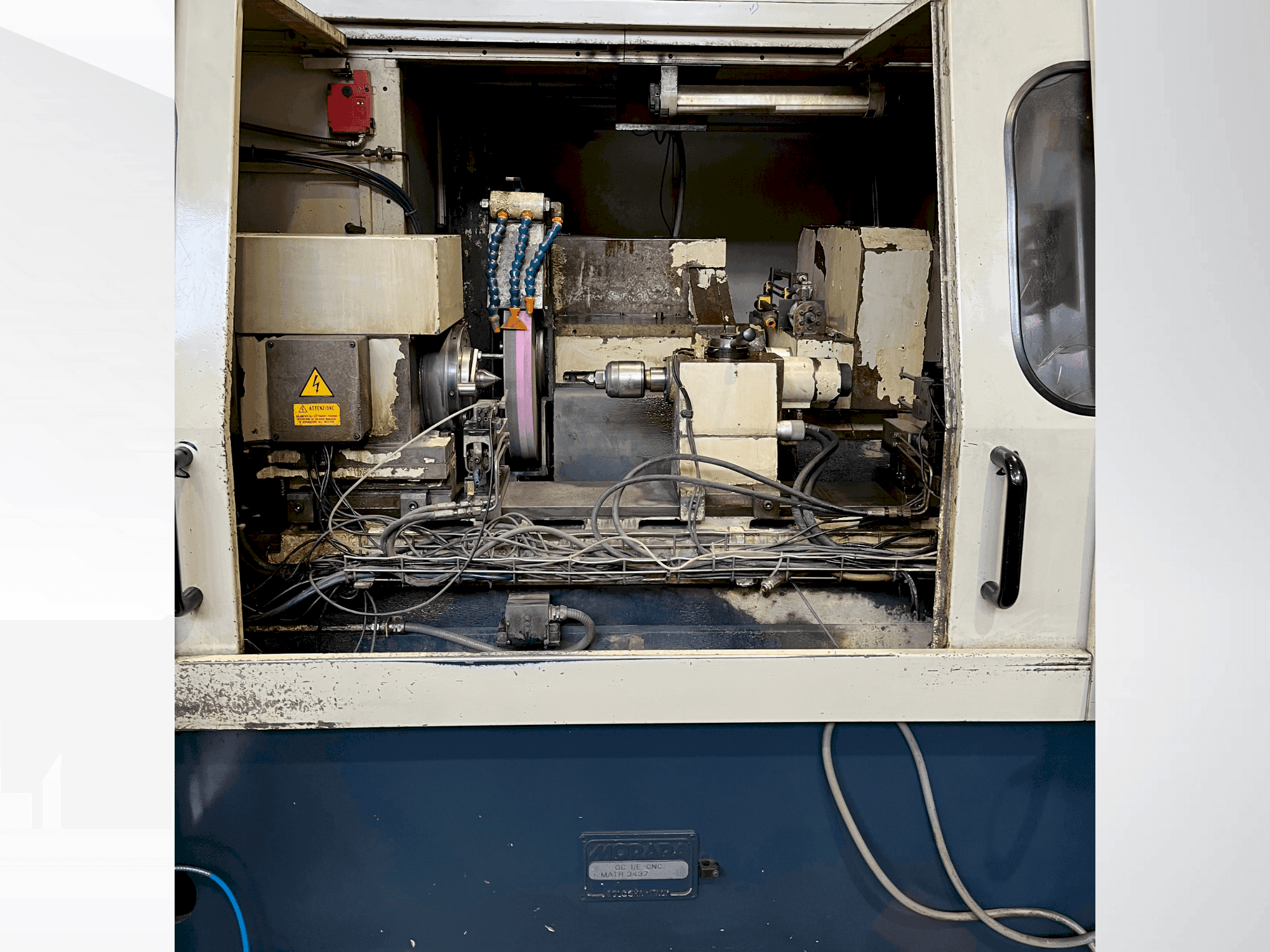

Front view of MORARA GC I/E CNC  machine

MORARA GC I/E CNC

MORARA - GC I/E CNC

2004

Rs. 3,346,050
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MORARA GC I/E CNC Grinding machines machine was manufactured in 2004 in Italy. It has a distance between spindle nose and carriage of 1500mm and adjustable length of 800mm externally. Its maximum rotating diameter is 370mm. Iy is capable of handling a maximum weight of 200kg between the points and 90kg in cantilever working. It has a total installed power of 25KW and a weight of 9,000kg.

Overview

  • brand: MORARA
  • year: 2004
  • MODEL: GC I/E CNC
  • application type: Grinding
  • Location: Italy
  • machine type: Grinding machines
  • availability: Immediately
  • GINDUMAC ID: IT-GRI-MOR-2004-00001

Technical Information

General Data

  • Machine weight: 9000 KG

Tools

  • Max tool diameter: 370 MM

    Additional equipment

    • - MARPOSS positioner + measuring device installed 1 year ago cost €18,500

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Distance between spindle nose and carriage: 1500mm
        • - Adjustable length (external): 800mm
        • - Tips height: 230mm
        • - External grinding wheel diameter x thickness x hole: 610 x 80 x 203mm
        • - Hollow: 270 x 20mm
        • - Total installed power: 25kw
        • - X axis 320mm
        • - Y axis 320mm
        • - Maximum weight allowed between the points: 200kg
        • - Maximum load in cantilever working: 90kg

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
