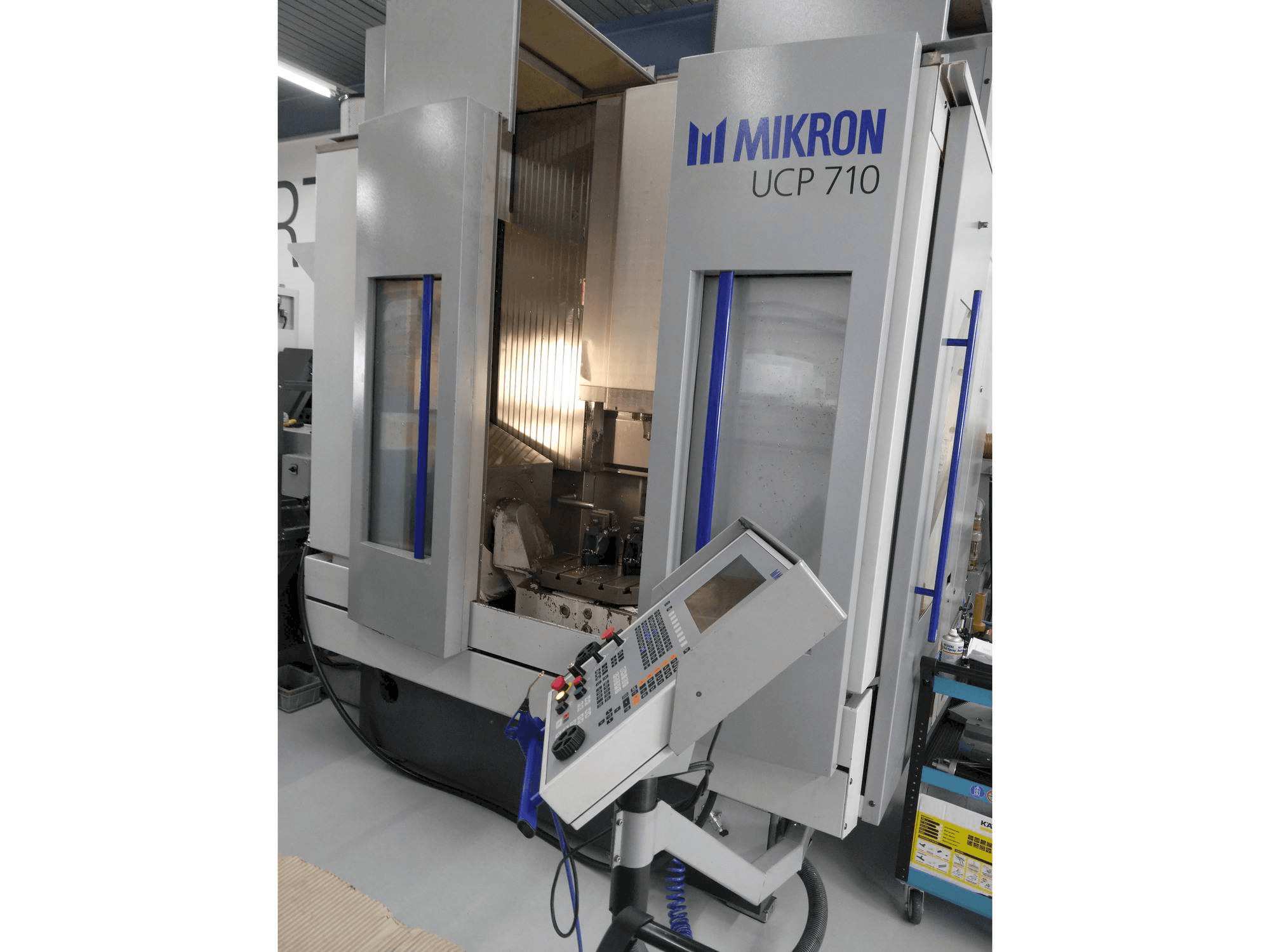

MIKRON UCP 710 Vertical machining center

Show in original language

This MIKRON UCP 710 Vertical machining center was manufactured in the year 1999. The machine has a spindle speed of 20000 rpm and a HSK 63A tool taper. It is equipped with a HEIDENHAIN TNC 430 control. The UCP 710 is a 5-axis machining centre with swivel rotary table from Rückle, endless 4th axis and swivel range 5th axis -30°/+100°. It operates with a clamping surface of 630 x 630 mm. Due to regular maintenance the machine is in good condition with 79637 machine on hours and 15311 spindle hours.

Overview

brand: MIKRON
year: 1999
MODEL: UCP 710
production hours: 15311
application type: Milling
Location: Switzerland
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON UCP 710

General Data

Machine weight: 9000 kg

Control Unit

Model: TNC 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20000 1/MIN
Tool taper: HSK 63A
Number of axis: 5

Movement

X-AXIS Movement: 710 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 630 mm
Outer width: 630 mm

Tools

Max weight: 8 kg
Max tool length: 300 mm

Additional equipment

- Large Pittrag production package with drum filter and wide chip conveyor
- 40 bar inner cooling through spindle
- Coolant device (Capacity 120 l / Flow rate approx. 92 l/min. at 2.2 bar
- Tool changer (Tool diameter: 90 mm fully loaded / 140 mm partially loaded)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivel rotary table (rückle) with clamping surface 630x630mm has endless 4th axis and swivel range 5th axis -30°/+100°
- - Chip-to-chip time according to vdi 2852: 7s
- - Tool change time: 5s
- - Max. Weight of all tools: 180 kg in drum magazine
- - Noise emission: sound power 75 db (a)
Qualitative Machine Benefits:
- - Condition very well maintained (new bellows etc. )
- - Spindle hours: 15311, machine on hours: 79637

Extra information

- Tools and clamping devices are not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
